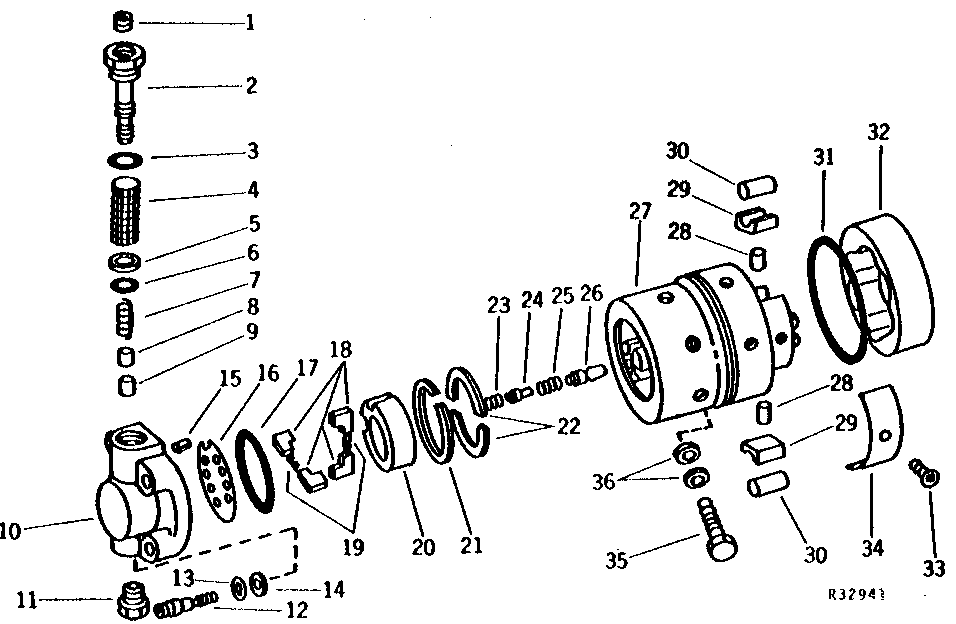

INJECTION PUMP HYDRAULIC HEAD AND ROTOR [01D08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34623	1	PLUG	-
2	R34622	1	SLEEVE	-
3	R33259	1	O-Ring	(A) (SUB FOR R33259)
4	R34625	1	STRAINER	-
5	R34632	1	WASHER	-
6	T11899	2	O-Ring	(A)
7	R49209	1	SPRING	(COLORED BLACK AND BLACK) (COLORED RED AND GREEN) (SUB FOR R34627)
8	T11900	1	DOWEL PIN	-
9	T25142	1	SEAL	-
10	R34624	1	PLATE	-
11	T30607	1	DRAIN PLUG	(SUB FOR R34629)
12	R48498	4	BOLT	(SUB FOR T11944)
13	12H295	4	Lock Washer	0.190"
14	T15715	4	WASHER	-
15	34H240	1	SPRING PIN	1/8" X 1/4", (SUB FOR R34638)
16	R34631	1	PLATE	-
17	T11894	1	O-RING	(A)
18	AR73828	1	KIT	STANDARD, (SUB FOR R45045) (ALSO ORDER AR73829)
18	AR73829	1	KIT	(OVERSIZE)
19	R34630	2	SPRING	-
20	T26238	1	SLEEVE	-
21	T11889	1	SNAP RING	-
22	T11890	2	RETAINER	-
23	R30737	1	SCREW	-
24	T26223	1	STOP	-
25	R30735	1	SPRING	-
26	R46125	1	VALVE	-
26	R46126	1	VALVE	(OVERSIZE)
27	AR36890	1	HYDRAULIC HEAD AND ROTOR	-
27	R30725	2	SCREW	-
27	T11926	1	SET SCREW	-
27	R30726	1	DOWEL PIN	-
27	R30727	1	RETAINER	-
28	R40701	2	PLUNGER	-
28	R40702	2	PLUNGER	-
28	R40699	2	PLUNGER	-
28	R40698	2	PLUNGER	-
29	R56483	2	SHOE	(SUB FOR T11885)
30	T11886	2	NEEDLE ROLLER	-
31	T11891	1	O-RING	(A)
32	R40695	1	RING	-
33	T11887	1	SCREW	-
34	T11888	1	LEAF SPRING	-
35	R26726	6	HOLLOW SCREW	-
36	T20055	12	WASHER	(A)
..	AR34612	1	GASKET KIT	-

INJECTION PUMP HYDRAULIC HEAD AND ROTOR [01D08]
