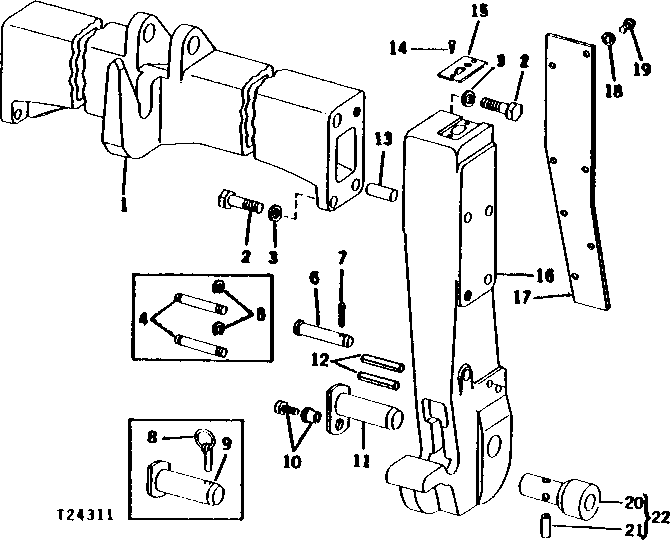

IMPLEMENT QUIK-COUPLER (SERIAL NO. -30059) [01I01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR35851	1	SUPPORT	CROSS, WITH PINS, (MARKED R36448)
2	19H2588	4	Cap Screw	5/8" X 1-7/8"
3	12H294	4	Lock Washer	5/8"
4	R36442	4	PIN FASTENER	(NO LONGER AVAILABLE)
5	F2208R	8	SNAP RING	-
6	R28556	2	Pin Fastener	-
7	11M7087	2	Cotter Pin	4 X 40 MM
8	AR83396	2	Quick Lock Pin	(SUB FOR AR26556 AND AR62152)
9	AR35762	2	PIN	WITH HANDLE
10	AR74673	2	CAP SCREW	WITH COLLAR, (SUB FOR AR48110)
11	AR48112	2	PIN	WITH HANDLE
12	34H375	4	SPRING PIN	1/2" X 3"
13	A776R	4	Pin	-
14	37H71	4	SCREW	NO. 12 X 5/8"
15	R36443	2	BRACKET	-
16	R36449	1	QUICK COUPLER	SIDE, R.H. (SUB R47050, (2) 34H375, AR48110 AND AR48112)
16	R36450	1	QUICK COUPLER	L.H. (SUB R47051, (2) 34H375, AR48110 AND AR48112)
16	R46001	1	QUICK COUPLER	R.H. (SUB R47050 AND (2) 34H375)
16	R46002	1	QUICK COUPLER	L.H. (SUB AR87024)
16	R47050	1	QUICK COUPLER	R.H.
16	R65088	1	QUICK COUPLER	L.H. (SUB FOR R47051) (SUB AR87024)
17	R36444	2	SHIELD	-
18	12H297	14	Lock Washer	1/4"
19	19H1919	14	Cap Screw	1/4" X 5/8"
20	R27998	2	Half Sleeve	-
21	R27999	2	Spring Pin	-
22	AR27093	2	ADAPTER KIT	-
..	AR48943	1	COUPLING	(A) COMPLETE, (SUB AR72330)

IMPLEMENT QUIK-COUPLER (SERIAL NO. -30059) [01I01]

Нет текстового описания
