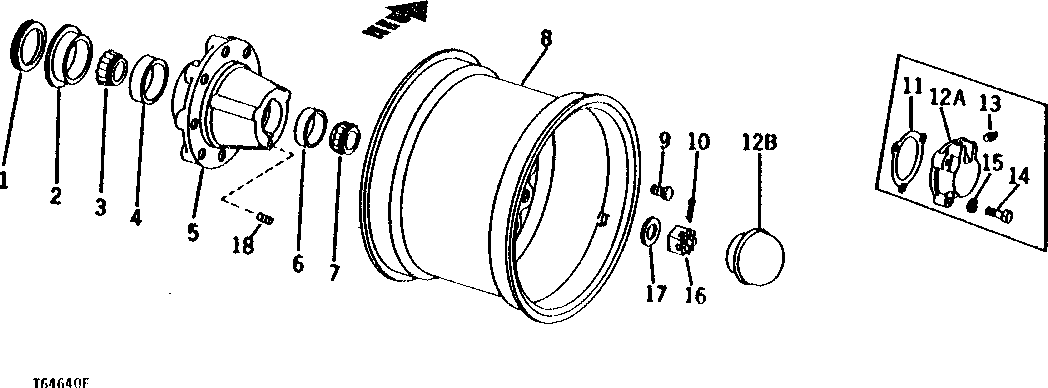

FRONT WHEELS (TRACTORS WITH REGULAR AXLES) [01G22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR27806	1	Seal	-
2	R28574	1	Seal	-
3	JD8131	1	Bearing Cone	-
4	JD7439	1	Bearing Cup	-
5	R63556	1	Hub	(ALSO ORDER DT2127W, 22H841 AND (8) JD27) (SUB FOR R40194 AND R63555)
6	JD7266	1	Bearing Cup	-
7	JD10190	1	Bearing Cone	(SUB FOR JD8981)
8	RE50183	1	Wheel	(SUB FOR JD3207) AND DISK LESS HUB (11.00-16", 8-PLY TIRE)
9	19H3570	8	Screw	(USE WITH R63555) (SUB FOR JD16)
9	19H3418	8	Screw	(USE WITH R63556) (SUB FOR JD27)
10	11M7030	1	Cotter Pin	5 X 40 MM
11	A1556R	1	GASKET	-
13	15H638	1	Pipe Plug	1/8"
14	19H2915	3	CAP SCREW	5/16" X 1-1/4"
15	24H1136	1	Washer	11/32" X 11/16" X 0.065"
16	14H920	1	Nut	1"
17	R28575	1	Washer	-
18	22H841	1	Set Screw	1/4" X 1/4", (USE WHEN R63555 OR R63556 HAS BEEN INSTALLED AS A REPLACEMENT PART)
12A	A1555R	1	CAP	-
12B	DT2127W	1	Cap	(USE WHEN R63555 OR R63556 HAS BEEN INSTALLED AS A REPLACEMENT PART)

FRONT WHEELS (TRACTORS WITH REGULAR AXLES) [01G22]
