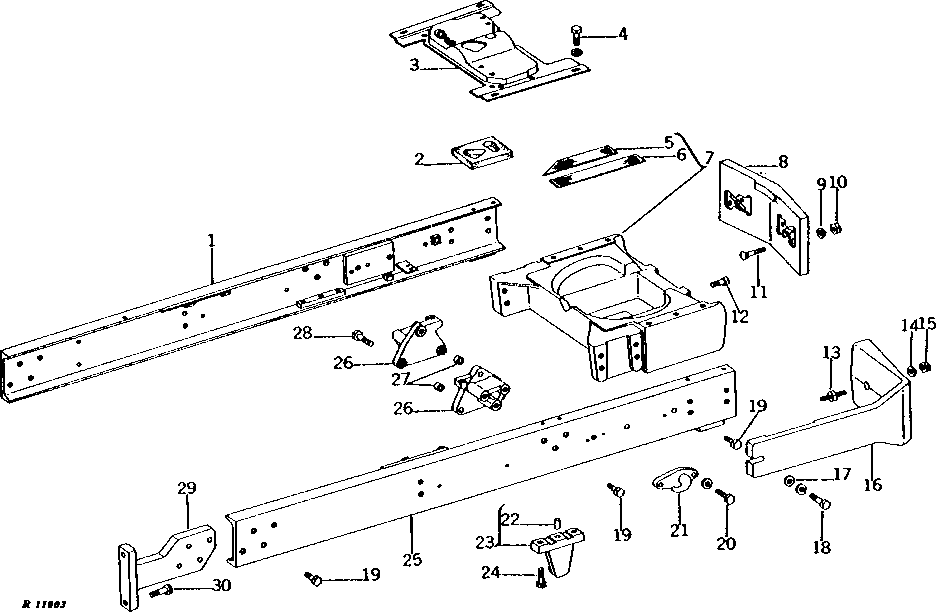

FRAME, FRAME PLATE AND FRONT WEIGHTS [01E20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR46245	1	FRAME	-
2	R27898	1	ISOLATOR	FRAME PLATE TO HYDRAULIC PUMP
3	AR36816	1	PLATE	WITH ISOLATOR
4	19H1648	6	Cap Screw	3/8" X 3/4"
4	12H304	6	Lock Washer	3/8"
5	-	2	Part 6	1/8" X 1-1/2" X 14" (MAKE FROM R21736, ROLL OF ANTI-SQUEAK WEBBING)
6	-	2	Part 7	1/8" X 1-1/2" X 16-1/2" (MAKE FROM R21736 ROLL OF ANTI-SQUEAK WEBBING)
7	-	1	Part 8	FRONT, WITH CUSHIONS (MARKED R40230) ( AR36854 NO LONGER AVAILABLE)
8	R27643	1	WEIGHT	-
9	12H294	2	Lock Washer	5/8"
10	14H800	2	Nut	5/8"
11	03H1857	2	BOLT	5/8" X 2-3/4"
12	19H2009	2	CAP SCREW	3/4" X 1-5/8"
13	R27645	2	STUD	-
14	12H236	2	Lock Washer	3/4"
15	14H794	2	Nut	3/4"
16	-	2	Part 17	( R40040, NO LONGER AVAILABLE)
17	F2783R	2	WASHER	-
18	19H3208	2	Cap Screw	5/8" X 3"
18	12H294	2	Lock Washer	5/8"
19	R35192	22	Wheel Bolt	-
20	19H2411	4	Cap Screw	3/4" X 2-1/2"
20	12H236	4	Lock Washer	3/4"
21	R35998	2	HOOK	-
22	R26277	1	DOWEL PIN	-
23	AR36306	2	BRACKET	STEERING CYLINDER, WITH PIN ( AR36306 NO LONGER AVAILABLE)
24	19H2599	4	Cap Screw	5/8" X 2-1/2"
25	-	1	Part 28	R.H. ( AR36444 NO LONGER AVAILABLE)
26	-	2	Part 29	( R40443 NO LONGER AVAILABLE)
27	F3515R	4	BUSHING	-
28	19H1425	6	CAP SCREW	3/4" X 2-3/4"
29	R40038	2	BRACKET	-
30	19H2089	4	CAP SCREW	7/8" X 2-3/4"
..	-	1	Part 34	(CONSISTS OF (2) R40040 FRAME SIDE WEIGHTS AND (1) AR35798 HARDWARE FOR FRAME SIDE WEIGHTS) ( AR36439, NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
