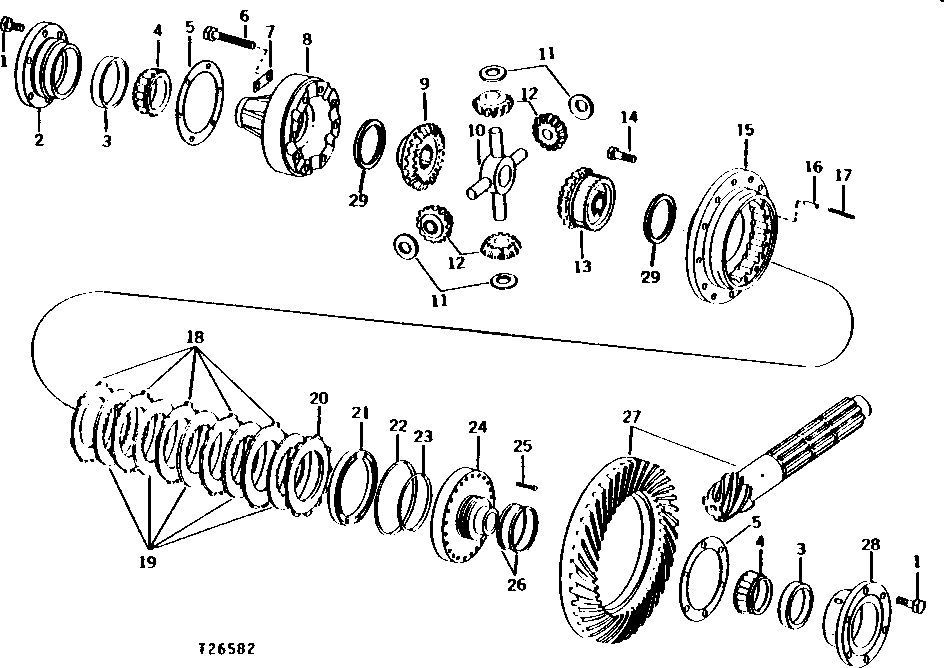

DIFFERENTIAL (TRACTORS WITH DIFFERENTIAL LOCK) [01E15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R52634	12	Cap Screw	(SUB FOR R43459 OR R41049)
2	R35500	1	BEARING HOUSING W/O BEARING	L.H.
3	JD8214	2	Bearing Cup	-
4	JD9019	2	BEARING CONE	-
5	R35501	1	Shim	.08 MM (.003")
5	R35502	1	Shim	.13 MM (.005")
5	R35503	1	Shim	.25 MM (.010")
6	19H1868	8	CAP SCREW	1/2" X 3-3/4"
7	R35497	4	PLATE	-
8	R112769	1	THRUST WASHER	L.H. (SUB FOR R42307 OR R57747)
9	-	1	Part 11	( R48251, NO LONGER AVAILABLE) (SUB R52155 AND R52157) (SUB FOR R43185)
9	R52155	1	GEAR	-
10	R35493	1	UNIVERSAL JOINT CROSS	-
11	R35499	4	LOCK WASHER	-
12	R48253	4	PINION	(SUB FOR R35498)
13	R57373	1	GEAR	(SUB FOR R52158)
13	-	1	Part 16	( R36879, NO LONGER AVAILABLE) (SUB R57373 AND R52157)
14	R43368	12	Cap Screw	-
15	AR36345	1	HOUSING	R.H., WITH PINS, (MARKED R36861)
16	34H316	3	Spring Pin	1/4" X 1-1/2"
17	R36880	3	SPRING	-
18	R34858	5	Clutch Plate	-
19	AR34705	5	CLUTCH DISK	WITH FACINGS
20	R34857	1	Clutch Plate	-
21	R34855	1	PISTON	-
22	R41017	1	WASHER	-
23	R44328	1	WASHER	(SUB FOR R41016)
24	AR44327	1	COVER	(MARKED R42273, R42308 OR R56103)
25	R40237	12	Bolt	-
26	R36881	2	Ring	-
27	AR36688	1	GEAR	(MARKED R35220) (SUB FOR AR36689, (2) R35365, (2) R35366, (4) R35367, (2) R36765, (2) R36766 AND (4) R36767) AND SHAFT (MARKED R40259)
28	R36878	1	BEARING HOUSING W/O BEARING	R.H.
29	R52157	2	WASHER	-
