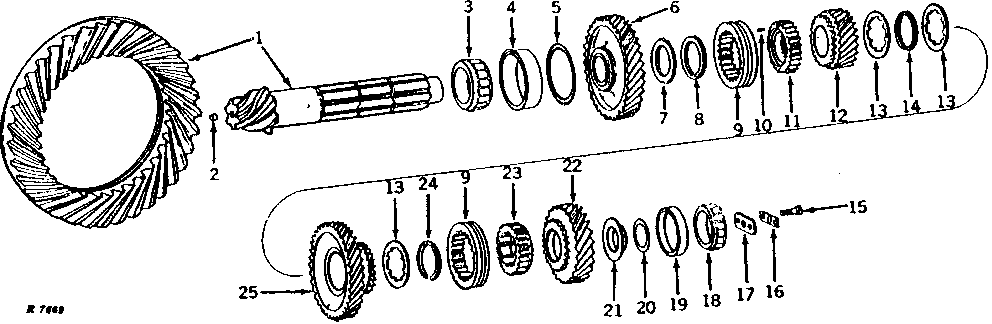

DIFFERENTIAL DRIVE AND BEVEL PINION SHAFT ASSEMBLY [01E01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR36688	1	GEAR	(SUB FOR AR36689) (ALSO ORDER (2) R35365, (2) R35366, (4) R35367, (2) R36765, (2) R36766 AND (4) R36767) R35220, SPIRAL BEVEL AND SHAFT, R40259, DIFFERENTIAL DRIVE AND BEVEL PINION, WITH SHIMS
2	R31374	1	SOLID SHIM	-
3	JD10377	1	Bearing Cone	WITH ROLLERS, (SUB FOR JD9004)
4	JD8280	1	Bearing Cup	-
5	R35365	1	Shim	.08 MM (.003")
5	R35366	1	Shim	.13 MM (.005")
5	R35367	1	Shim	.25 MM (.010")
6	AR36690	1	GEAR	( R40263 NO LONGER AVAILABLE) FIRST AND THIRD SPEED, WITH BUSHINGS
7	R35425	1	THRUST WASHER	-
8	R35372	1	SNAP RING	-
9	R35491	2	SHIFT COLLAR	-
10	34H241	2	Spring Pin	1/8" X 3/8"
11	AR35158	1	GEAR	TRANSMISSION SHIFTER, REAR, WITH PINS
12	R35443	1	GEAR	6TH AND 8TH SPEED, (26 TEETH)
13	R35426	3	THRUST WASHER	-
14	R35373	1	SNAP RING	-
15	19H3483	2	Cap Screw	3/8" X 1-1/8"
16	R35429	1	PLATE	-
17	R35428	1	PLATE	-
18	JD7359	1	BEARING CONE	WITH ROLLERS
19	JD8235	1	BEARING CUP	-
20	R36765	1	SHIM	.08 MM (.003")
20	R36766	1	SHIM	.13 MM (.005")
20	R36767	1	SHIM	.25 MM (.010")
21	R36764	1	BUSHING	-
22	R35442	1	GEAR	4TH AND 7TH SPEED, (33 TEETH)
23	R35489	1	GEAR	TRANSMISSION SHIFTER, FRONT
24	R35371	1	SNAP RING	-
25	R40264	1	GEAR	2ND AND 5TH SPEED, (42 TEETH) ( R40264 NO LONGER AVAILABLE)

DIFFERENTIAL DRIVE AND BEVEL PINION SHAFT ASSEMBLY [01E01]
