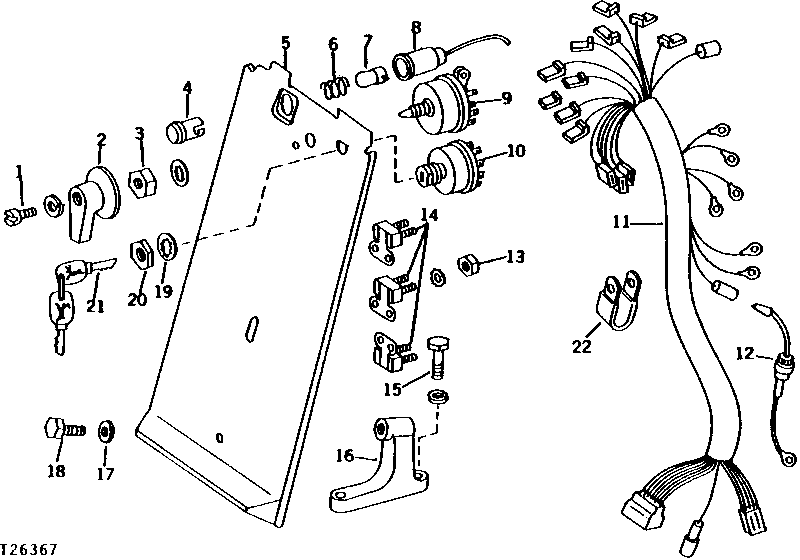

CONTROL SUPPORT COVER WITH SWITCHES, CIRCUIT BREAKERS AND WIRING HARNESSES [01J06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H315	1	Lock Washer	0.164"
1	21H1299	1	SCREW	0.164" X 3/8"
2	R27963	1	KNOB	LIGHT SWITCH
3	A4655R	1	Nut	-
3	12H292	1	Lock Washer	1/2"
4	AR45439	1	LENS	AIR CLEANER RESTRICTION, INDICATOR LAMP WITH HOUSING
5	AR50729	1	COVER	(SUB FOR AR46243)
6	R30378	1	Spring	-
7	AR55694	1	BULB	(SUB FOR R30379)
8	AR45439	1	LENS	COMPLETE, AIR CLEANER RESTRICTION INDICATOR, (SUB FOR AR48033) (ALSO ORDER AR55694, R30378 AND AT44165)
9	AR41288	1	SWITCH	LIGHT
10	AR53452	1	SWITCH	(SUB AR58126)
10	AR58126	1	Rotary Switch	WITH KEYS AND CYLINDER
10	-	1	Part 14	WITH KEYS ( AR47459 USE IF AVAILABLE)
11	AR47498	1	WIRING HARNESS	CONTROL SUPPORT COVER
12	AR47548	1	Fuse	25 AMP
12	AR47547	1	WIRING LEAD	WITH FUSE
13	14H631	12	Nut	0.190"
13	12H295	12	Lock Washer	0.190"
14	AR28403	3	CIRCUIT BREAKER	-
15	19H3483	2	Cap Screw	3/8" X 1-1/8"
15	12H304	2	Lock Washer	3/8"
16	R35623	1	BRACKET	(SUB R49802)
16	R49802	1	BRACKET	-
17	24H1305	1	Washer	13/32" X 13/16" X 0.065"
18	19H1648	1	Cap Screw	3/8" X 3/4"
19	A4827R	2	Washer	-
20	R44342	1	Nut	-
21	AT195302	1	Key	(SUB FOR R45361 OR AR51481 AND AT145929) (SET OF TWO)
22	R45211	1	Clamp	-
..	R44302	1	Tie Band	-
..	R45231	1	LABEL	-
