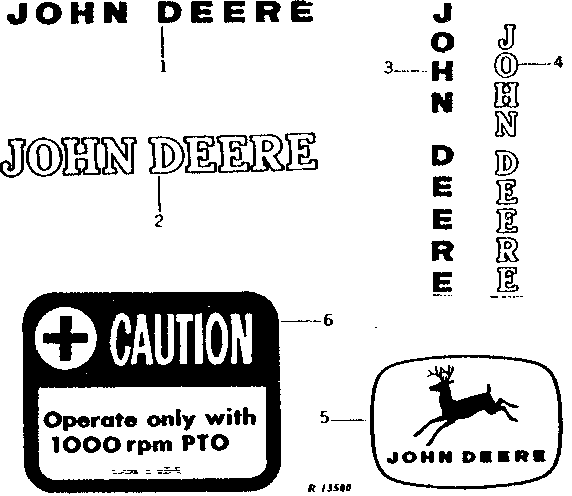

ADDITIONAL DECALS (THE FOLLOWING DECALS ARE AVAILABLE IN PACKAGES OF 5 EACH) [02A20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD250	1	LABEL	11/16" X 10"
1	JD250	1	LABEL	1/2" X 7-1/8"
1	JD5206	1	LABEL	(A) 5-3/4" X 8"
1	JD256	1	LABEL	4" X 57"
1	JD5208	1	DECALS	(A) 2-1/2" X 35-5/8"
1	JD5155	1	LABEL	2-1/4" X 32" (DARK GREEN)
1	JD255	1	LABEL	2-1/4" X 32"
1	JD239	1	LABEL	(A) 1-3/4" X 25"
1	JD254	1	LABEL	1-3/4" X 25"
1	JD238	1	LABEL	(A) 1-1/2" X 21-3/8" (NO LONGER AVAILABLE)
1	JD5153	1	LABEL	1-1/4" X 17-3/4" (DARK GREEN)
1	JD237	1	LABEL	1-1/4" X 17-3/4"
1	JD253	1	LABEL	1-1/4" X 17-3/4"
1	JD5152	1	DECALS	1" X 14-1/4" (DARK GREEN)
1	JD236	1	DECALS	(A) 1" X 14-1/4"
1	JD252	1	LABEL	1" X 14-1/4"
1	JD235	1	LABEL	(A) 11/16" X 10"
1	JD267	1	LABEL	1-1/2" X 21-3/8"
2	JD110	1	LABEL	3/4" X 6"
2	JD114	1	LABEL	2-1/2" X 20"
2	JD115	1	LABEL	2" X 16"
2	JD113	1	LABEL	1-1/2" X 12"
2	JD112	1	LABEL	1-1/4" X 10"
2	JD111	1	LABEL	1" X 8"
3	JD243	1	DECALS	(A) 3/4" X 9"
3	-	1	Part 30	1-1/2" X 18" ( JD5201 - NO LONGER AVAILABLE)
3	JD5200	1	LABEL	1-1/2" X 18"
3	JD258	1	LABEL	3/4" X 9"
3	JD257	1	LABEL	1/2" X 6"
3	JD259	1	LABEL	1" X 12"
4	JD116	1	DECALS	1" X 10-3/4", (SUB JD259)
4	JD118	1	DECALS	1/2" X 5-3/8", (SUB JD257)
4	JD119	1	DECALS	3/4" X 8-1/16", (SUB JD258)
5	-	1	Part 65	(D) (E) 6-3/8" X 9", ( JD5326 NO LONGER AVAILABLE)
5	-	1	Part 53	(E) 4-1/4" X 6" ( JD5243 - NO LONGER AVAILABLE)
5	-	1	Part 54	(D) 4-1/4" X 6", (SUB FOR JD124 AND JD264) ( JD5254 NO LONGER AVAILABLE)
5	JD5303	1	LABEL	(A) (D) 4-1/4" X 6"
5	-	1	Part 56	(D) (E) 4-1/4" X 6" ( JD5324 - NO LONGER AVAILABLE)
5	-	1	Part 57	(E) 5-3/4" X 8", ( JD5244 NO LONGER AVAILABLE)
5	JD5304	1	LABEL	(A) (D) 5-3/4" X 8"
5	-	1	Part 59	(D) (E) 5-3/4" X 8", ( JD5325 NO LONGER AVAILALBE)
5	JD5265	1	LABEL	(C) 6-3/8" X 9"
5	JD5256	1	DECALS	(A) (D) 6-3/8" X 9"
5	-	1	Part 62	(D) (E) 6-3/8" X 9" ( JD5266 - NO LONGER AVAILABLE)
5	JD5270	1	LABEL	(D) 6-3/8" X 9", (SUB FOR JD265, JD5165)
5	JD5305	1	LABEL	(A) (D) 6-3/8" X 9"
5	JD5207	1	DECALS	(A) 8-1/2" X 12"
5	JD5258	1	LABEL	(D) 8-1/2" X 12", (SUB FOR JD268)
5	JD5306	1	LABEL	(A) (D) 8-1/2" X 12"
5	-	1	Part 69	(D) (E) 8-1/2" X 12" ( JD5327 - NO LONGER AVAILABLE)
5	JD5259	1	LABEL	(D) 11-3/4" X 16-5/8", (SUB FOR JD269)
5	-	1	Part 38	(E) 2-1/8" X 3" ( JD5321 - NO LONGER AVAILABLE) (SUB FOR JD5240)
5	JD5205	1	LABEL	(A) 4-1/4" X 6", (SUB JD248)
5	JD5260	1	LABEL	(C) 1-7/16" X 2"
5	JD5250	1	LABEL	(D) 1-7/16" X 2", (SUB FOR JD120, JD260)
5	JD5202	1	LABEL	(A) 2-1/8" X 3", (SUB FOR JD245)
5	JD5261	1	LABEL	(C) 2-1/8" X 3"
5	JD5251	1	LABEL	(D) 2-1/8" X 3", (SUB FOR JD121, JD261)
5	JD5300	1	LABEL	(A) (D) 2-1/8" X 3"
5	JD5262	1	LABEL	(C) 2-7/8" X 4"
5	JD5241	1	LABEL	(E) 2-7/8" X 4"
5	JD5252	1	LABEL	(D) 2-7/8" X 4", (SUB FOR JD122, JD262)
5	-	1	Part 44	(D) (E) 2-7/8" X 4" ( JD5322 - NO LONGER AVAILABLE)
5	-	1	Part 45	3-9/16" X 5" ( JD5268 - NO LONGER AVAILABLE) (SUB FOR JD247, JD5204)
5	JD5263	1	LABEL	(C) 3-9/16" X 5"
5	-	1	Part 47	(E) 3-9/16" X 5" ( JD5242 - NO LONGER AVAILABLE)
5	JD5253	1	LABEL	(D) 3-9/16" X 5", (SUB FOR JD123, JD263)
5	JD5268	1	DECALS	(A) (D) 3-9/16" X 5"
5	JD5352	1	LABEL	(D) (E) 3-9/16" X 5"
5	JD5264	1	LABEL	(C) 4-1/4" X 6"
6	JD5111	1	LABEL	(D) 2" X 2-5/8"
6	JD5112	1	LABEL	(D) 2" X 2-5/8"
6	-	1	Part 73	(D) 2" X 2-5/8" ( JD5114 - NO LONGER AVAILABLE)
6	-	1	Part 74	(D) 2" X 2-5/8" ( JD5115 - NO LONGER AVAILABLE)
6	JD5255	1	DECAL	(D) 4" X 4"

ADDITIONAL DECALS (THE FOLLOWING DECALS ARE AVAILABLE IN PACKAGES OF 5 EACH) [02A20]
