Открытый узел

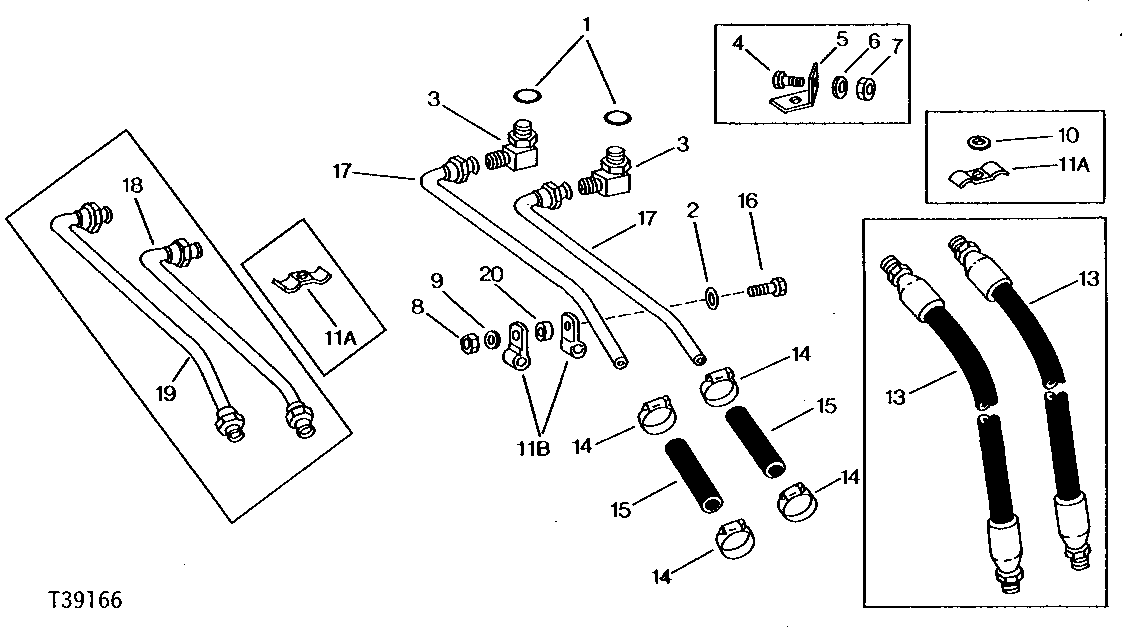

TRANSMISSION OIL COOLER LINES [01F23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12547	2	O-Ring	(SUB FOR (2) F3171R)
2	24H1309	1	Washer	WELLAND SERIAL NO. (XXXXX- ) 13/32" X 1-1/16" X 0.12"
3	AT32331	2	Elbow Fitting	(SUB FOR AR26723)
4	19H3239	1	Cap Screw	WELLAND SERIAL NO. ( -XXXXX) 3/8" X 1-1/4"
5	-	1	Part 5	WELLAND SERIAL NO. ( -XXXXX) ( T30185 NO LONGER AVAILABLE)
6	12H304	1	Lock Washer	WELLAND SERIAL NO. ( -XXXXX) 3/8"
7	14H812	1	NUT	WELLAND SERIAL NO. ( -XXXXX) 3/8"
8	14H785	1	Nut	WELLAND SERIAL NO. ( -XXXXX) 5/16"
8	14H812	1	NUT	WELLAND SERIAL NO. (XXXXX- ) 3/8"
9	12H303	1	Lock Washer	WELLAND SERIAL NO. ( -XXXXX) 5/16"
9	12H304	1	Lock Washer	WELLAND SERIAL NO. (XXXXX- ) 3/8"
10	24H1243	1	WASHER	WELLAND SERIAL NO. ( -XXXXX) 11/32" X 5/8" X 0.06"
12	-	1	Part 15	WELLAND SERIAL NO. (XXXXX-XXXXX) ( AT36728 NO LONGER AVAILABLE)
12	AT38501	1	OIL LINE	WELLAND SERIAL NO. (XXXXX- )
13	AT28843	2	HYDRAULIC HOSE	1-1/16" X 305 MM (12") X 1-1/16", WELLAND SERIAL NO. ( -XXXXX)
14	RE65978	4	Clamp	(SUB FOR AT18904 OR RE62322) WELLAND SERIAL NO. (XXXXX- )
15	-	2	Part 19	WELLAND SERIAL NO. (XXXXX- ) 19 MM X 76 MM (MAKE FROM T61939, 3 M, (10 FT.) BULK) (SUB FOR T38056 AND T21371)
16	19H1765	1	Cap Screw	WELLAND SERIAL NO. (XXXXX- ) 3/8" X 1-3/4"
16	19H3552	1	Cap Screw	WELLAND SERIAL NO. ( -XXXXX) 5/16" X 1-1/2"
17	-	1	Part 22	WELLAND SERIAL NO. (XXXXX-XXXXX) ( AT36727 NO LONGER AVAILABLE)
17	AT38500	1	OIL LINE	WELLAND SERIAL NO. (XXXXX- )
18	AT28842	1	OIL LINE	WELLAND SERIAL NO. ( -XXXXX)
19	AT28841	1	OIL LINE	WELLAND SERIAL NO. ( -XXXXX)
20	28H1517	1	Washer	WELLAND SERIAL NO. (XXXXX- ) 0.493" X 0.675" X 1/4"
11A	F2953R	2	Half Clamp	WELLAND SERIAL NO. ( -XXXXX)
11B	T28949	2	Clamp	WELLAND SERIAL NO. (XXXXX- )

TRANSMISSION OIL COOLER LINES [01F23]

Нет текстового описания
