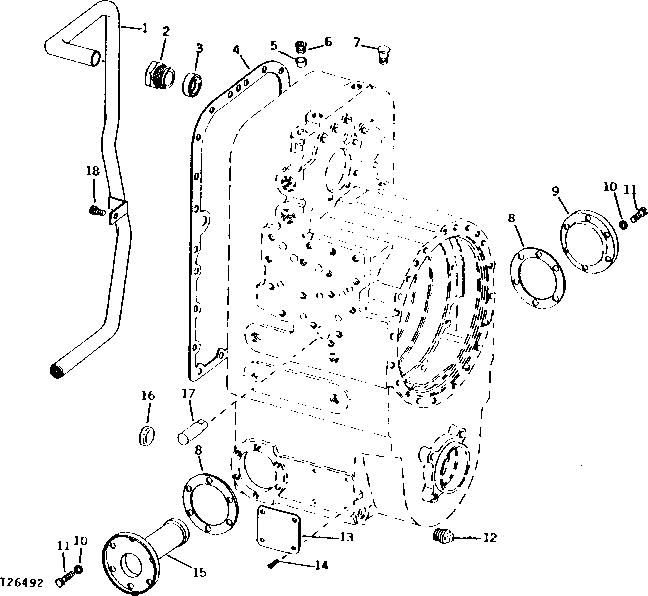

TRANSMISSION HOUSING STRAINER AND SCREEN [01F02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT28271	1	LINE	-
2	T27897	1	T27897	WELLAND SERIAL NO. ( -XXXXX) (WITH REAR AXLE DISCONNECT) (SUB T38984)
2	T27897	1	T27897	WELLAND SERIAL NO. ( -XXXXX) (WITHOUT REAR AXLE DISCONNECT) (SUB T38984)
2	T38984	1	ADAPTER FITTING	-
3	T27896	1	RING	(K)
4	T27802	1	GASKET	(K)
5	-	1	Part 7	( T27804 USE IF AVAILABLE)
6	15H690	1	Pipe Plug	3/4"
7	AH20868	1	Breather	(SUB FOR T27805)
8	T152643	2	GASKET	(K) (SUB FOR T27806)
9	T27807	1	COVER	-
10	12H304	12	Lock Washer	3/8"
11	19H2284	12	Cap Screw	3/8" X 7/8"
12	15H585	1	Pipe Plug	3/4"
13	-	1	Part 15	( T27808 NO LONGER AVAILABLE) (SUB T39988 IF AVAILABLE)
14	37H26	4	Screw	0.116" X 1/4"
15	AT28272	1	STRAINER	-
16	-	1	Part 18	(WITHOUT REAR AXLE DISCONNECT) ( T27812 NO LONGER AVAILABLE)
17	T27833	1	PIN FASTENER	-
18	T73767	1	BOLT	(SUB FOR T27895, THIS APPLICATION)

TRANSMISSION HOUSING STRAINER AND SCREEN [01F02]
