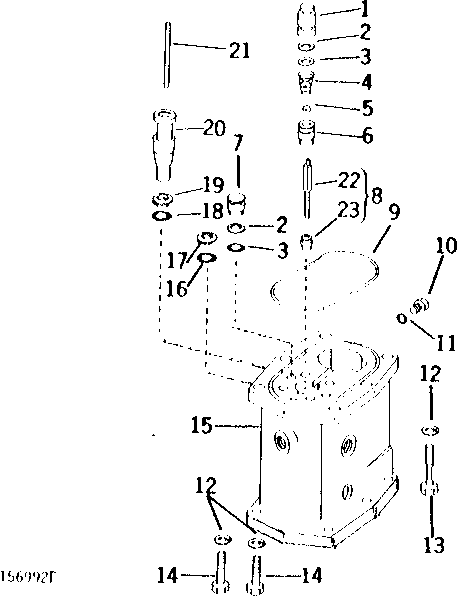

STEERING VALVE HOUSING (UPPER HALF) [01I07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41724	4	PLUG	(C)
2	R32588	6	Back-Up Ring	(B) (C)
3	R56464	6	O-Ring	(B) (C) (SUB FOR R459R, THIS APPLICATION)
4	R26565	4	COMPRESSION SPRING	(C)
5	400R	4	Ball	(C) 6.4 MM (1/4")
6	R59083	4	VALVE	(C) (SUB FOR R28124)
7	R34131	2	Plug	(C)
8	AR49535	2	SHAFT	(UPPER, WITH GUIDE) (SUB FOR R40359 AND AR30589)
8	AR49536	2	SHAFT	(LOWER, WITH GUIDE) (SUB FOR R40360 AND AR30590)
9	R34733	1	WASHER	(B) (C)
10	R27216	1	DRAIN PLUG	(SUB FOR R31631)
11	R26287	1	O-Ring	(B)
12	12H301	6	Lock Washer	(C) 1/2"
13	R48784	4	CAP SCREW	(C)
14	19H2993	2	Cap Screw	(C) 1/2" X 1-1/2", (SUB FOR R48785)
15	R42115	1	HOUSING	-
15	AR101691	1	HOUSING	(WITH METERING SHAFTS) (SUB FOR AR37080 AND AR101690) (ALSO ORDER (2) R40359 AND (2) R40360)
16	A4365R	1	O-Ring	(B) (C)
17	R34129	1	Back-Up Ring	(B) (C)
18	R56462	1	O-Ring	(B) (C) (SUB FOR B2762R, THIS APPLICATION)
19	R26546	1	BACK-UP RING	(B) (C)
20	R37428	1	VALVE SEAT	(C)
21	R37467	1	DOWEL PIN	(C)
22	R40359	2	SHAFT	(C) (SUB AR49535) 76.2 MM (3")
22	R40360	2	SHAFT	(C) (SUB AR49536) 38.1 MM (1-1/2")
23	AR78483	4	GUIDE	(C) (SUB FOR AR31703)
..	AR48759	1	KIT	STEERING VALVE REPLACEMENT
..	AR69350	1	VALVE	-
