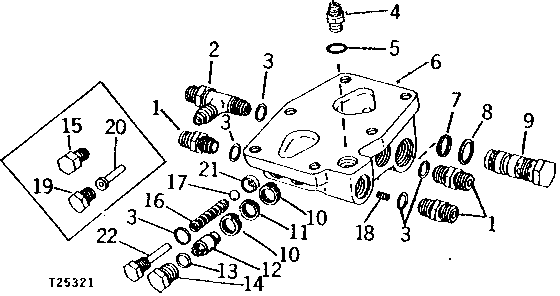

STEERING FLOW CONTROL VALVE HOUSING ASSEMBLY [01I09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27237	3	Fitting	-
2	AT26327	1	Tee Fitting	-
3	R26375	5	O-Ring	(B) (C)
4	R27212	1	Fitting	-
5	R26448	1	O-Ring	(B)
6	T28249	1	HOUSING	(SUB AT37475, T38150 AND D2361R)
6	T33484	1	HOUSING	(SUB AT37475, T38150 AND D2361R)
6	AT37475	1	HOUSING	(C) (WITH SEAT) (MARKED T38465)
7	R56466	1	O-Ring	(B) (SUB FOR P47908, THIS APPLICATION)
8	U40727	1	BACK-UP RING	(B)
9	AU40752	1	PRESSURE RELIEF VALVE	-
10	R26546	2	BACK-UP RING	(B) (C)
11	R56462	1	O-Ring	(B) (C) (SUB FOR B2762R, THIS APPLICATION)
12	T23659	1	FLOW CONTROL HYD. VALVE	-
13	R26906	1	O-Ring	(B)
14	R27474	1	Drain Plug	-
15	T22867	1	Drain Plug	-
16	T561T	1	Spring	-
17	D2361R	1	Ball	12.7 MM (1/2")
17	U11498	1	BALL	-
17	D2361R	1	Ball	-
18	T29437	1	ORIFICE	-
19	R39112	1	Fitting	-
20	T32481	1	GUIDE	-
21	T38151	1	VALVE SEAT	(SUB AT37475)
22	T38150	1	FITTING	(C)
..	AR48759	1	KIT	STEERING VALVE REPLACEMENT
..	AR69350	1	VALVE	-

STEERING FLOW CONTROL VALVE HOUSING ASSEMBLY [01I09]

Нет текстового описания
