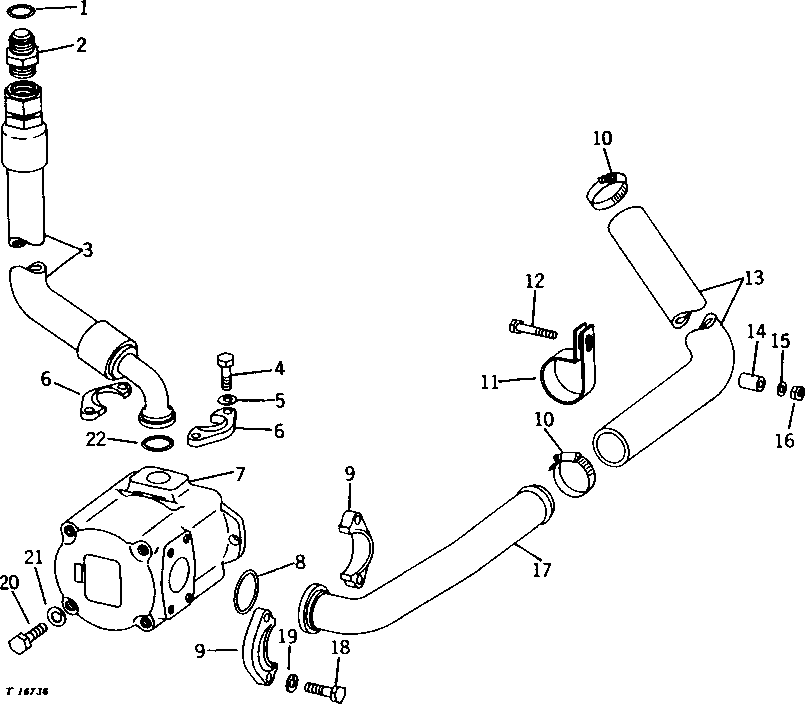

LOADER HYDRAULIC PUMP AND HOSES [02B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U13639	1	O-Ring	-
2	R37187	1	ADAPTER FITTING	(SUB FOR T29818)
3	AT28102	1	HYDRAULIC HOSE - FABRICATE	-
4	19H3205	4	Cap Screw	7/16" X 1-1/2"
5	12H293	4	Lock Washer	7/16"
6	R29867	2	Flange Fitting	-
7	AT28100	1	HYDRAULIC PUMP	(SUB AT57567)
7	AT57567	1	HYDRAULIC PUMP	(SUB FOR AT32846)
8	F1870R	1	O-Ring	(A)
9	X51H-32	2	Flange Fitting	(A) (SUB FOR T29816 OR R37023)
10	AT29623	4	CLAMP	-
10	AR21999	4	Hose Clamp	(A)
11	F1451R	1	Clamp	-
11	N35147	1	CLIP	(A)
12	19H3065	1	Cap Screw	3/8" X 2"
12	19H2458	1	Cap Screw	(A) 3/8" X 3"
13	T26765	1	HYDRAULIC HOSE - FABRICATE	2" X 46-1/2"
13	T33505	1	HOSE	(A) 2-1/2" X 46-1/2"
14	28H1497	1	Bushing	(A) 3/8" X 1-1/2"
15	12H304	1	Lock Washer	(A) 3/8"
16	14H812	1	NUT	(A) 3/8"
17	-	1	Part 22	( AT28101 NO LONGER AVAILABLE)
17	AT32676	1	TUBE	(A)
18	19H2993	4	Cap Screw	1/2" X 1-1/2"
19	12H301	4	Lock Washer	1/2"
20	19H1356	1	CAP SCREW	5/8" X 1-3/4"
21	12H294	1	Lock Washer	5/8"
22	U10289	1	O-Ring	-
..	-	1	Part 29	SUMP TANK CONVERSION (ALSO ORDER AT41506 INLET MANIFOLD) ( AT41508 NO LONGER AVAILABLE)

LOADER HYDRAULIC PUMP AND HOSES [02B10]
