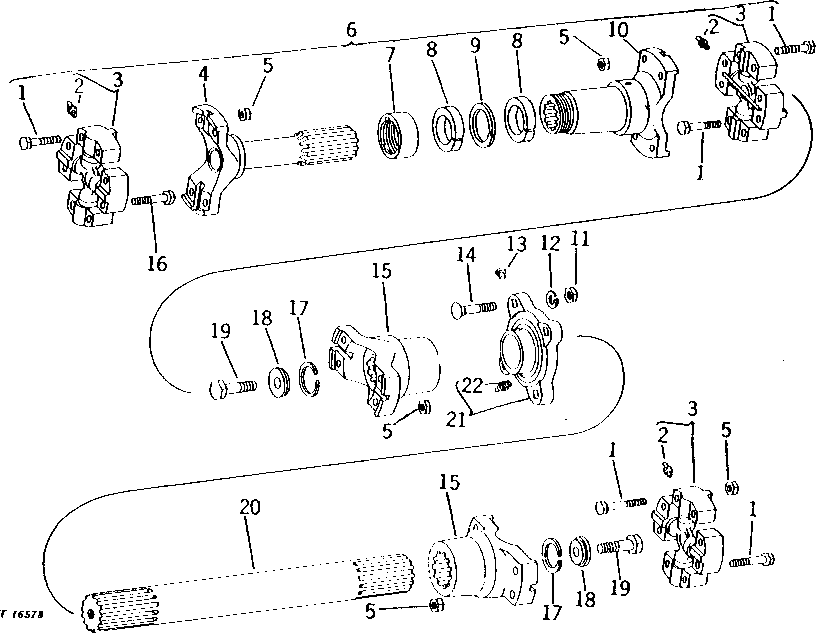

FRONT DIFFERENTIAL TELESCOPING UNIVERSAL [01G02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3012	20	Cap Screw	1/2" X 2-3/8"
2	JD7759	3	Lubrication Fitting	1/8" THREAD X 11/16" LONG, (USE WITH AT27353) (ROCKWELL)
2	R61943	3	FITTING	(USE IF AVAILABLE) 1/4" THREAD X 1-5/8" LONG, (SUB FOR T30074) (USE WITH AT27353) (MECHANICS)
2	JD7782	6	Lubrication Fitting	1/8" THREAD X 1-3/4" LONG, (USE WITH AR90543)
2	JD7782	12	Lubrication Fitting	1/8" THREAD X 1-3/4" LONG, (USE WITH AR95974)
2	JD5814	1	Lubrication Fitting	(SUB FOR R61943)
3	-	3	Part 7	( AR95974 USE IF AVAILABLE)
3	RE40111	3	Cross And Bearing Assembly	(SUB FOR AR95974) (W/O GREASE FITTING)
4	AT27356	1	UNIVERSAL JOINT YOKE	-
5	14H856	20	Nut	1/2"
6	AT27352	1	UNIVERSAL JOINT	-
7	T29334	1	Cap	-
8	T29336	2	WASHER	-
9	T29335	1	BUSHING	-
10	AT27355	1	UNIVERSAL JOINT YOKE	-
11	14H1040	4	Nut	1/2", (SUB FOR 14H809)
12	12H301	4	Lock Washer	1/2"
13	T27135	1	PIN	-
14	03H1764	4	Bolt	1/2" X 1-3/4"
15	T59890	2	UNIVERSAL JOINT YOKE	(SUB FOR T29328)
16	19H3183	4	CAP SCREW	1/2" X 2-1/8"
17	T27132	2	SNAP RING	-
18	T27134	2	WASHER	-
19	19H1356	2	CAP SCREW	5/8" X 1-3/4"
20	T29329	1	SHAFT	-
21	AT167717	1	BEARING WITH HOUSING	(SUB FOR AT25143 OR AT150856) (ALSO ORDER T149265 NO GREASE TAG (NOT ILLUSTRATED)
22	JD7842	1	Lubrication Fitting	1/4"

FRONT DIFFERENTIAL TELESCOPING UNIVERSAL [01G02]

Нет текстового описания
