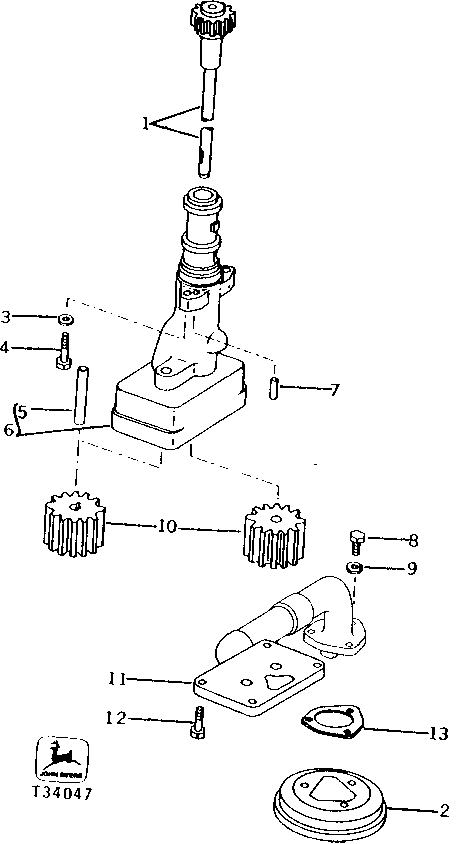

ENGINE OIL PUMP (ENGINE SERIAL NO. 295503- ) [01B25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R64568	1	GEAR	(SUB FOR R45133)
2	AR47524	1	FUNNEL	(A) (SUB AR56639)
2	AR56639	1	OIL PUMP INTAKE	-
3	M72490	2	Washer	(SUB FOR R42729)
4	R40808	2	CAP SCREW	(SUB AR63865, THIS APPLICATION)
4	R41920	2	Cap Screw	(A) (USED WHEN AR63865 KIT HAS BEEN INSTALLED)
4	R38614	2	CAP SCREW	(SUB FOR R56609)
5	R42390	1	SHAFT	-
6	AR71124	1	KIT	(MARKED R49015, R56608 OR R59034) (SUB FOR AR52440 OR AR68314) (SUB AR71126, (2) R41920 AND (2) M72490)
6	AR71126	1	HOUSING	(MARKED R59034) (CONTAINS R42390)
7	-	1	Part 11	( H826R NO LONGER REQUIRED)
8	19H1900	3	Cap Screw	5/16" X 3/4", (USE WITH AR52572)
8	19H2127	3	Cap Screw	5/16" X 7/8", (USE WITH AR75897)
8	19H1905	3	Cap Screw	5/16" X 1", (USE WITH AR71119)
9	12H303	3	Lock Washer	5/16"
10	AR71123	1	GEAR	(SUB FOR AR52570)
11	AR48528	1	HOUSING	(MARKED R46376) (SUB AR72323)
11	AR72323	1	HOUSING	(MARKED R42395 OR R52050) (SUB FOR AR56640 OR AR62234)
12	R46567	4	Screw	-
13	R52049	1	GASKET	-
..	AR75897	1	OIL PUMP	(SUB FOR AR52572) (SUB AR71119, R38614, R41920 AND M72490)
..	SE500886	1	OIL PUMP	(REMANUFACTURED) (SUB FOR AR71119)
