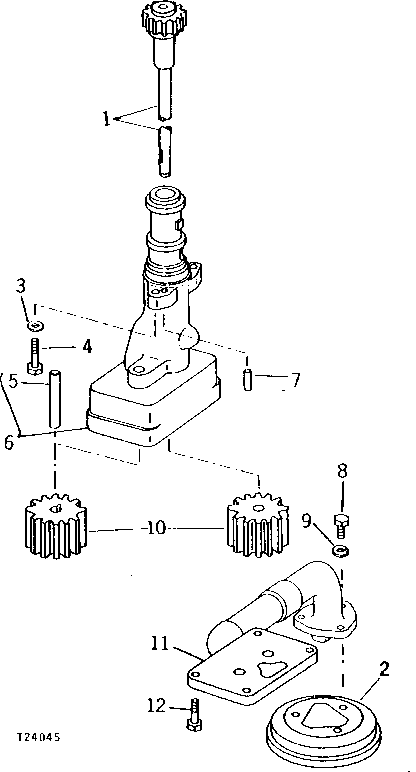

ENGINE OIL PUMP (ENGINE SERIAL NO. -295502) [01B24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R45133	1	GEAR	-
2	AR56639	1	OIL PUMP INTAKE	(SUB FOR AR47524)
3	M72490	2	Washer	(A) (SUB FOR R42729)
4	AR63865	2	Cylinder	(SUB FOR R40808, THIS APPLICATION) (CONTAINS (2) R41920 AND (2) M72490)
4	R41920	2	Cap Screw	(A) (USE WITH AR63865)
4	R38614	2	CAP SCREW	-
5	R42390	1	SHAFT	-
6	AR44442	1	HOUSING	(MARKED R42391) (SUB AR68180, AR72323 AND (2) R38614)
6	AR48487	1	HOUSING	(MARKED R46337) (SUB AR68180 AND (2) R38614)
6	AR68180	1	HOUSING	(MARKED R56972)
7	-	1	Part 11	( H826R NO LONGER REQUIRED)
8	19H1900	3	Cap Screw	5/16" X 3/4"
9	12H303	3	Lock Washer	5/16"
10	AR44444	1	GEAR	(SUB AR73714 AND R42392)
10	AR73714	1	GEAR	(USE WITH R42392)
10	R42392	1	GEAR	(USE WITH AR73714)
11	AR44443	1	HOUSING	(SUB AR72323, AR68180 AND (2) R38614)
11	AR48528	1	HOUSING	(SUB AR72323)
11	AR72323	1	HOUSING	(SUB FOR AR62334)
12	R46567	4	Screw	-
..	AR43596	1	OIL PUMP	(SUB SE900886, M72490, R38614 AND R41920)
..	SE500886	1	OIL PUMP	(REMANUFACTURED) (SUB FOR AR71119)

ENGINE OIL PUMP (ENGINE SERIAL NO. -295502) [01B24]

Нет текстового описания
