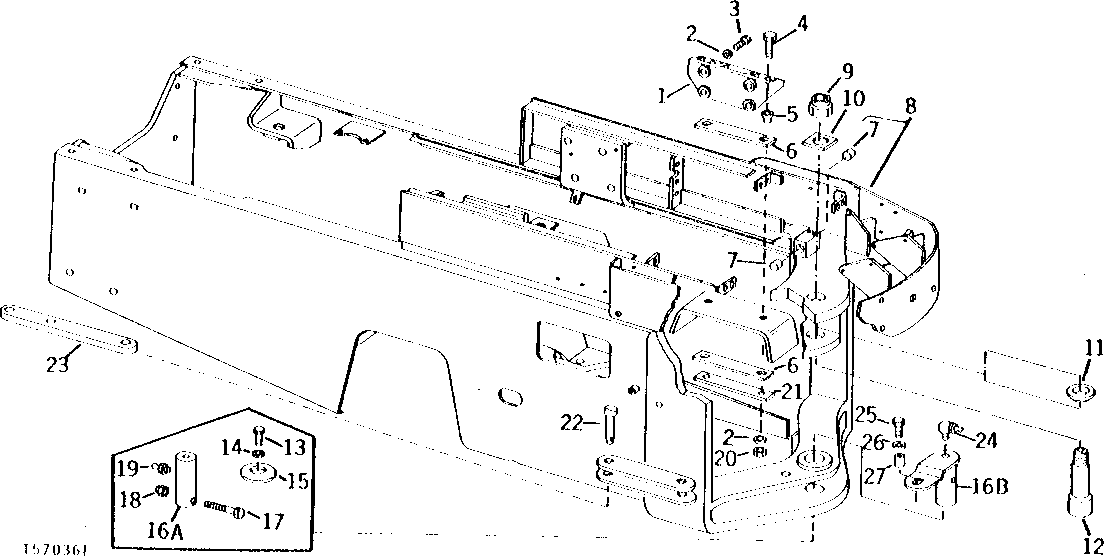

ENGINE FRAME AND TRANSMISSION SUPPORTS [02C22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T27206	2	BRACKET	-
2	12H294	12	Lock Washer	5/8"
3	19H1356	8	CAP SCREW	5/8" X 1-3/4"
4	19H3208	4	Cap Screw	5/8" X 3"
5	T27298	4	SPACER	-
6	T40883	4	ISOLATOR	(SUB FOR T27297)
7	M2038T	2	BUSHING	-
8	-	1	Part 8	WITH BUSHINGS AND SAFETY LABELS, (SUB FOR AT24938) (ALSO ORDER AT53170) ( AT39091 NO LONGER AVAILABLE)
9	T27294	1	LOCK NUT	-
10	T27291	1	STRAP	-
11	T27290	1	LOCKING COLLAR	-
12	AT25333	1	PIN FASTENER	-
13	19H2021	1	Cap Screw	3/8" X 5/8", (USE WITH T27286 AND T13624)
14	24H1305	1	Washer	13/32" X 13/16" X 0.065", (USE WITH T27286 AND T13624)
15	T29488	1	COVER	(USE WITH T27286 AND T13624)
17	19H1840	1	CAP SCREW	1/2" X 5-1/2", (USE WITH T27286 AND T13624)
18	U12622	1	LOCK NUT	(USE WITH T27286 AND T13624)
19	JD7771	1	Lubrication Fitting	1/8", (USE WITH T27286 AND T13624)
20	14H760	4	Nut	5/8"
21	T27299	2	STRAP	-
22	R53296	2	Pin Fastener	(SUB FOR F2683R AND R44918)
23	T27295	1	STRAP	-
24	JD7763	1	Lubrication Fitting	(A)
25	19H2472	1	Cap Screw	(A) 1/2" X 1"
26	24H1211	1	Washer	(A) 9/16" X 1-3/8" X 0.105"
27	28H1596	1	WASHER	(A) 0.546" X 0.840" X 5/16"
..	AT53170	1	PIN FASTENER	-
16A	T27286	1	PIN FASTENER	(ALSO ORDER T13624)
16A	-	1	Part 16	WITH BALL, (SUB AT53170, THIS APPLICATION) (WHEN AT30164 IS NO LONGER AVAILABLE,ORDER T27286 AND T13624)
16B	-	1	Part 18	(A) (SUB AT53170)

ENGINE FRAME AND TRANSMISSION SUPPORTS [02C22]
