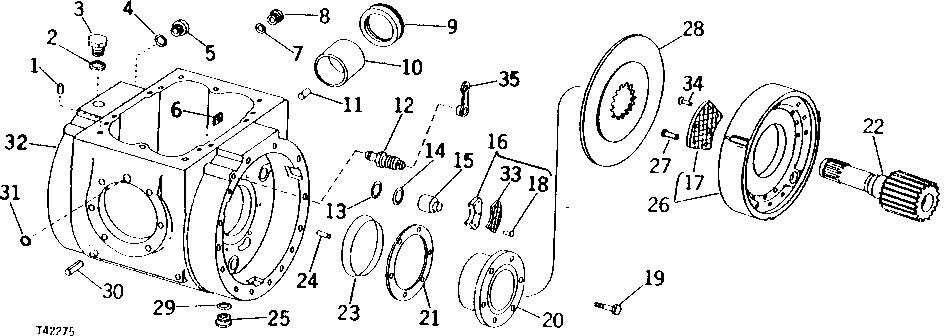

DIFFERENTIAL CASE ASSEMBLY (DUBUQUE SERIAL NO. -121499) (WELLAND SERIAL NO. -70199) [01G06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48685	2	Dowel Pin	(SUB FOR A120R)
2	A4827R	1	Washer	WELLAND SERIAL NO. ( -XXXXX)
3	R26727	1	DRAIN PLUG	WELLAND SERIAL NO. ( -XXXXX)
4	A4827R	1	Washer	-
5	R26727	1	DRAIN PLUG	-
6	14H823	2	NUT	1/2"
7	R26286	1	O-Ring	-
8	R27094	1	Drain Plug	-
9	AT43415	1	SEAL	(SUB FOR AT13956, THIS APPLICATION)
10	R48581	1	BUSHING	WELLAND SERIAL NO. ( -XXXXX) (SUB R55523) (SUB FOR R42228)
10	R55523	1	BUSHING	-
11	R48685	1	Dowel Pin	(SUB FOR A120R) WELLAND SERIAL NO. (XXXXX- )
11	R28671	1	Dowel Pin	WELLAND SERIAL NO. ( -XXXXX)
12	R21612	2	Bleed Valve	-
13	F1056R	6	O-RING	-
14	R26973	6	WASHER	-
15	R42225	6	PISTON	-
16	AR66750	6	PLATE	(SUB FOR AR32243, THIS APPLICATION)
17	R90085	6	BRAKE SHOE	(SUB FOR AR28487)
17	R90086	6	BRAKE SHOE	(USE WHEN AR32243, WITH LARGE FACING, HAS BEEN INSTALLED AS A REPLACEMENT PART) (SUB FOR AR28488 OR R26765)
18	D1761R	36	RIVET	-
19	R46162	12	SCREW	-
20	R31190	1	BEARING HOUSING W/O BEARING	(L.H. FRONT, R.H. REAR)
20	R31196	1	BEARING HOUSING W/O BEARING	(L.H. REAR, R.H. FRONT)
21	R46323	1	Shim	0.08 MM (.003") (SUB FOR R26042)
21	R46324	1	Shim	0.13 MM (.005") (SUB FOR R26043)
22	R45779	2	SHAFT	(SUB FOR R33431)
23	JD8210	1	Bearing Cup	(L.H. REAR, R.H. FRONT)
23	JD8259	1	Bearing Cup	(R.H. REAR, L.H. FRONT)
24	R54380	4	Dowel Pin	(SUB FOR R26015, THIS APPLICATION)
25	R33138	1	Fitting	-
26	AR66749	2	BRAKE DISK	(SUB FOR AR49057 AND AR54699, THIS APPLICATION)
27	R708R	18	RIVET	-
28	R45781	2	BRAKE DISK	(SUB FOR R33819, R45780, AND R48476, THIS APPLICATION)
29	R26375	1	O-Ring	-
30	R48685	2	Dowel Pin	-
31	R26149	1	PACKING	-
32	AR48352	1	CASE	(MARKED R41620) (SUB AR76953, AR72959, R48677 AND R48678) (ALSO ORDER T64255 FOR LOADERS BUILT PRIOR TO SERIAL NO. 98400) (SUB FOR AR44328)
33	R90085	6	BRAKE SHOE	(SUB FOR AR28487)
33	R90086	6	BRAKE SHOE	(PKG. OF 3) (USE WHEN AR32243 WITH LARGE FACING HAS BEEN INSTALLED AS A REPLACEMENT PART) (SUB FOR AR28488 OR R26765)
34	D2593R	36	RIVET	-
35	R47862	1	Cap	-
