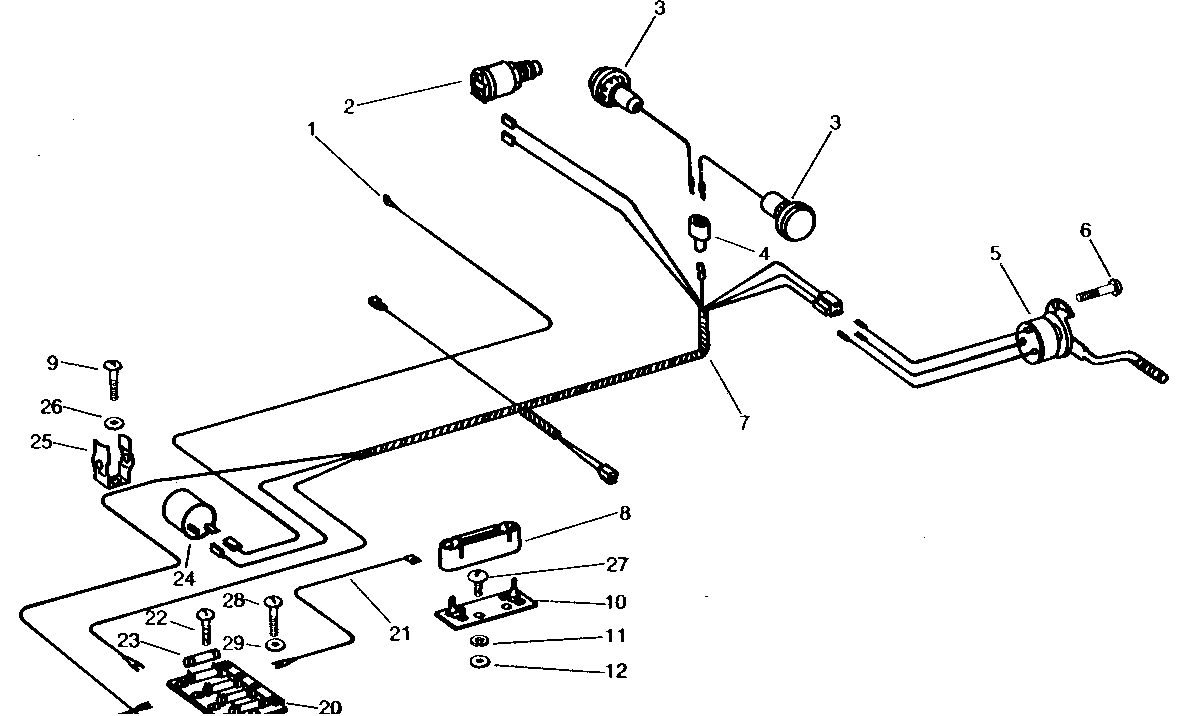

DASH LIGHT, TURN SIGNAL, HORN AND STOP LIGHT SWITCH-WIRING SYSTEM [02F14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(MAKE FROM PM797NA WIRE KIT) (SUB FOR T22521) (LIGHT SWITCH TO CIRCUIT BREAKER AND FLASHER)
2	AR20235	1	Switch	-
3	AT25432	2	LAMP	-
3	T28000	1	BULB	-
4	AM531T	1	ELECTRICAL CONNECTOR ASSY	-
5	AT25448	1	SWITCH	-
6	R31286	2	SCREW	-
7	AT25438	1	WIRING HARNESS	(TURN SIGNAL SWITCH AND DASH LIGHT)
8	AT163088	1	FLASHER	(SUB FOR AT25436)
9	21H1301	1	SCREW	(RD. HD.), NO. 10 X 1/2"
10	AT25435	1	TERMINAL	-
11	12H246	7	LOCK WASHER	0.190"
12	14H778	4	Nut	0.190"
13	14H631	3	Nut	0.190"
14	-	1	Part 15	WELLAND SERIAL NO. (69999- ) (SUB FOR AT25453) (SUB AT31255)
15	21H1195	2	SCREW	(RD. HD.), NO. 10 X 7/8"
16	AL67715	1	Switch	(SUB FOR AL27809)
16	AL27809	1	SWITCH	(USE IF AVAILABLE) (SUB FOR AR86974 AND AR85759) (SUB FOR R32548, THIS APPLICATION) (ALSO ORDER AT71012)
17	AT25431	1	WIRING HARNESS	-
18	14H605	2	Nut	0.164"
19	12H315	2	Lock Washer	0.164"
20	AT28076	1	FUSE BOX	-
21	AT25434	1	WIRING LEAD	-
22	21H1345	2	Screw	0.164" X 5/8"
23	AT15162	1	FUSE	(30 AMP) (HORN)
23	AT28077	3	Fuse	(10 AMP)
24	AU41465	1	Flasher	-
25	T29417	1	BRACKET	-
26	24H1283	1	Washer	7/32" X 1/2" X 0.049"
27	21H1317	2	SCREW	(RD. HD.), NO. 10 X 5/8"
28	21H1292	6	SCREW	(RD. HD.), NO. 8 X 1/4"
29	12M7084	6	Lock Washer	4.300 MM
30	AT31255	1	TERMINAL	WELLAND SERIAL NO. (70000- )
31	AT71012	1	WIRING HARNESS	-

DASH LIGHT, TURN SIGNAL, HORN AND STOP LIGHT SWITCH-WIRING SYSTEM [02F14]
