Открытый узел

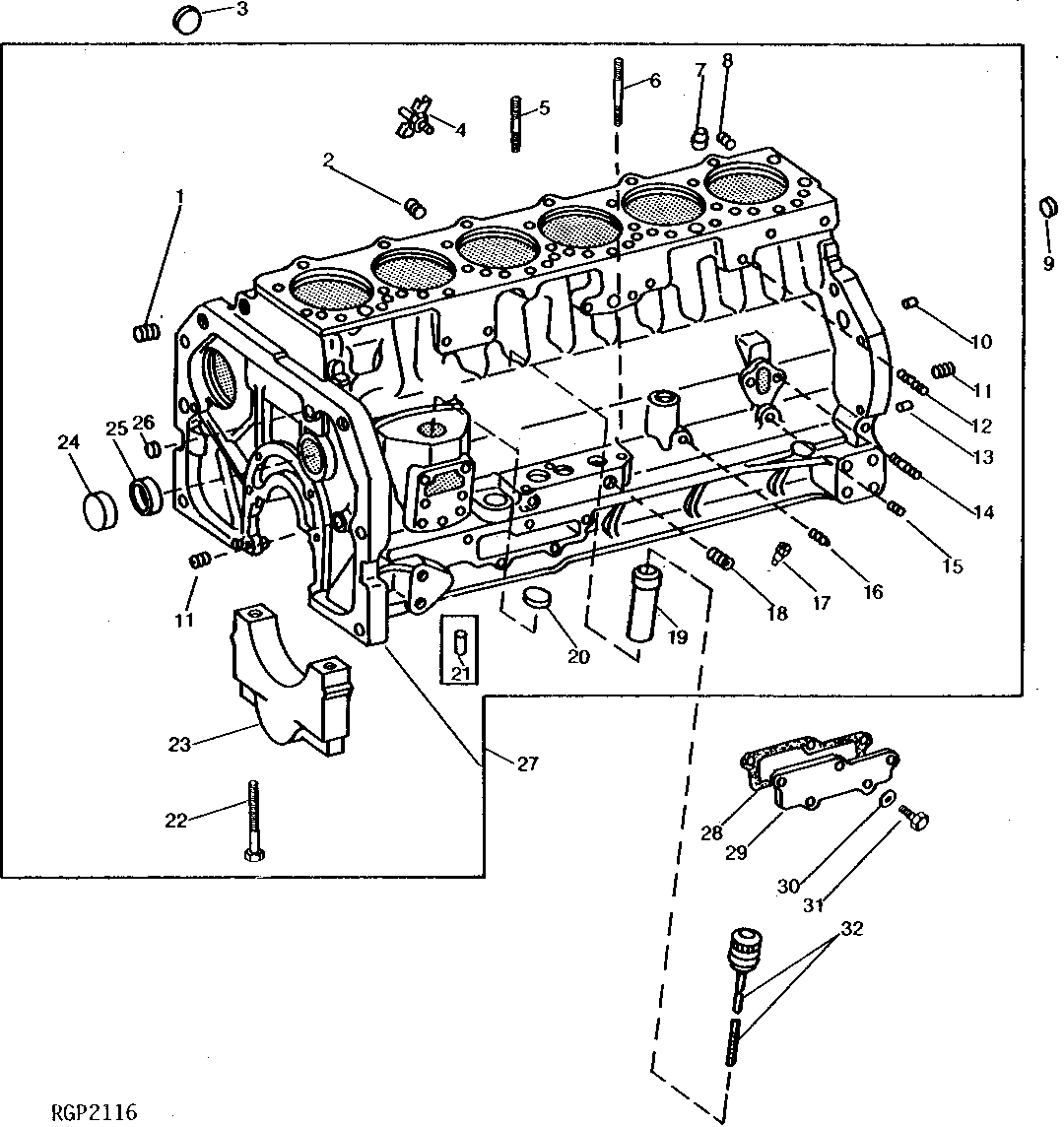

CYLINDER BLOCK AND DIPSTICK [01B04]

CYLINDER BLOCK AND DIPSTICK [01B04]

CYLINDER BLOCK AND DIPSTICK [01B04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

CYLINDER BLOCK AND DIPSTICK [01B04]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	15H562	1	Pipe Plug	1", (SUB FOR AR78522)
1	15H665	1	PIPE PLUG	3/4", (SUB FOR AR72318)
2	15H690	2	Pipe Plug	3/4", (SUB FOR AR78522)
3	AR80294	1	PLUG	(WITHOUT ENGINE COOLANT HEATER) (SUB FOR R47092)
4	AR44382	1	DRAIN VALVE	3/8"
4	AT13740	1	Drain Valve	1/4"
5	R32042	1	STUD	-
6	T20173	1	STUD	-
7	R42340	2	Bushing	-
8	-	1	Part 10	( 15H666 NO LONGER REQUIRED)
9	R45740	1	PLUG	-
10	R1612R	2	Dowel Pin	-
11	RE57836	2	Pipe Plug	1/2", (SUB FOR AR72319 OR 15H624)
12	K3083R	2	STUD	7/16" X 1-3/4"
13	F1743R	2	Dowel Pin	-
14	R48755	2	STUD	5/16" X 1-1/2", (SUB FOR R26934)
15	R104592	4	Pipe Plug	(SUB FOR R21630, THIS APPLICATION)
16	R104592	1	Pipe Plug	-
17	R43621	6	Orifice	-
18	15H666	1	Pipe Plug	3/8"
19	R41070	1	TUBE	-
20	30H25	1	PLUG	2"
21	-	1	Part 23	(NO LONGER REQUIRED)
22	T15539	14	BOLT	-
23	R57158	6	Bearing Cap	(MAIN)
23	R57159	1	BEARING CAP	(MAIN THRUST)
24	R26115	1	Plug	-
25	R46903	4	BUSHING	-
26	R43634	1	DOWEL PIN	-
27	AR43496	1	CYLINDER BLOCK	(MARKED R43310) (SUB AR48289, R32617, R46158, AR43852 AND AR52160) ( AR50297 CYLINDER BLOCK - NO LONGER AVAILABLE)
27	AR50297	1	CYLINDER BLOCK	(MARKED R45980) (NO LONGER AVAILABLE)
27	AR52061	1	CYLINDER BLOCK	(MARKED R47020)
28	R520530	1	GASKET	(SUB FOR R43442 OR R45968)
29	R43441	1	COVER	-
30	12H304	5	Lock Washer	3/8"
31	19H2284	5	Cap Screw	3/8" X 7/8"
32	AR52563	1	DIPSTICK	(SUB FOR AR52624)
32	AR53998	1	DIPSTICK	(SUB FOR AR53997)
..	AR50294	1	SHORT BLOCK ASSEMBLY	(SUB RE13551, SE500886, AR48289, R32617, M72490, R41920, R38614, R46158, (8) AR27703, (2) 19H2661 AND (2) 12H303) (SUB FOR AR46061) (MARKED R45980)
..	RE13551	1	SHORT BLOCK ASSEMBLY	(MARKED R45980)
..	RE13552	1	SHORT BLOCK ASSEMBLY	(MARKED R47020) (ALSO ORDER SE500886, M72490, R38614 AND R41920)
..	RG21340	1	ENGINE OVERHAUL KIT	-
