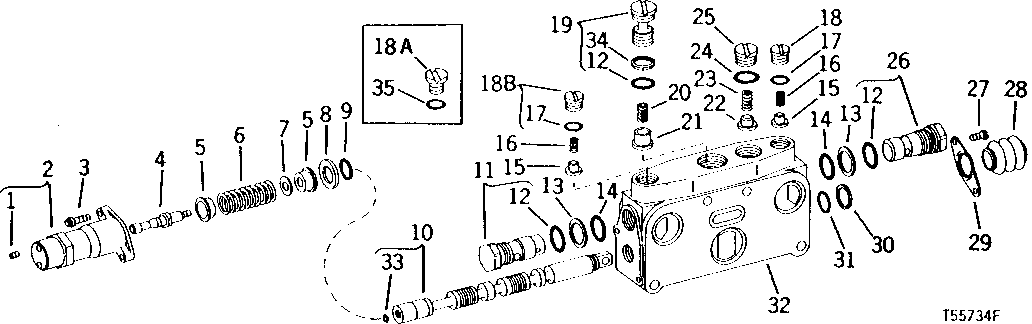

CONTROL VALVE LOADER BUCKET SECTION [02B16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	15H558	1	Pipe Plug	(HEX. CTSK.) 1/8"
2	AT30008	1	CAP	(RETURN TO DIG, WITH PIPE PLUG)
3	T31036	2	SCREW	-
4	-	1	Part 4	(SUB FOR T31043) ( T39689 NO LONGER AVAILABLE)
5	T31042	2	ROUND RETAINER	-
6	T32364	1	SPRING	-
7	N31767	1	WASHER	-
8	T31031	1	WASHER	-
9	U11343	1	O-RING	(A)
10	-	1	Part 10	(SUB AT30007)
11	AT30013	1	VALVE	(WITH O-RING) (1000 PSI (69 BAR)
12	P51079	3	O-Ring	(A)
13	T31039	2	BACK-UP RING	(A)
14	H21957	2	O-Ring	(A)
15	T32362	2	PLUNGER	-
16	N85304	2	SPRING	-
17	U40745	2	O-Ring	-
18	AT41728	2	FITTING PLUG	(SUB FOR T32363 AND T42801)
19	T34526	1	PLUG	-
19	AT32976	1	AT32976	(SUB T34526, T33295 AND P51079) (SUB FOR AT30010)
20	T31041	1	SPRING	-
21	T31040	1	PLUNGER	-
22	T31044	1	PLUNGER	-
23	N132189	1	SPRING	-
24	32240	1	O-Ring	-
25	AT41731	1	FITTING PLUG	(SUB FOR T42806)
26	AT47788	1	RELIEF VALVE	(WITH O-RING) (2500 PSI (172 BAR) (70 KG/CM2))
27	21H1140	2	SCREW	1/4" X 3/8"
28	U44068	1	BOOT	-
29	T31038	1	RETAINER	-
30	T31037	1	WASHER	-
31	U44067	1	O-Ring	(A)
32	-	1	Part 33	(SUB AT30007)
33	R34812	1	O-Ring	-
34	T33295	1	BACK-UP RING	(A)
35	R51603	2	O-Ring	(A) (SUB FOR R375R, THIS APPLICATION)
..	AT30007	1	VALVE	(FOUR WAY REGENERATIVE)
..	AT30015	1	SEAL KIT	LOADER BUCKET VALVE

CONTROL VALVE LOADER BUCKET SECTION [02B16]

Нет текстового описания
