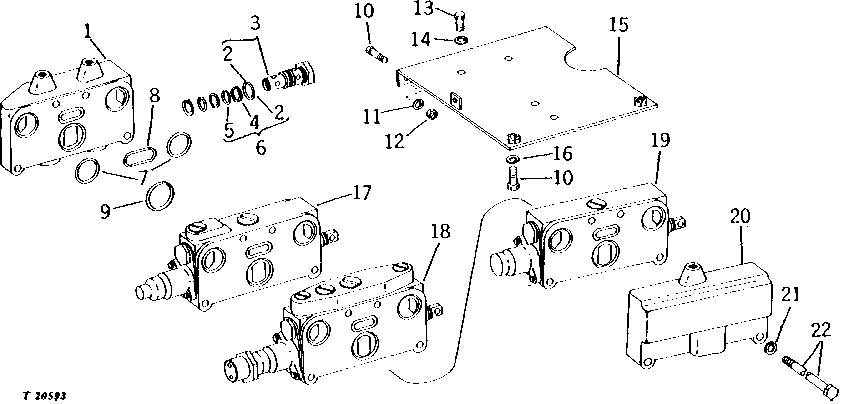

CONTROL VALVE ASSEMBLY (TWO AND THREE SPOOL) [02B13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T31028	1	PORT PLATE	-
2	P51079	1	O-Ring	-
3	AT47787	1	RELIEF VALVE	(SUB FOR AT30006)
4	T31039	1	BACK-UP RING	-
5	H21957	1	O-Ring	-
6	AT30009	1	KIT	PORT PLATE REPAIR
7	T31029	8	O-Ring	(B)
8	T38652	4	O-RING	(B)
9	U44062	4	O-Ring	(B)
10	19H2676	2	Cap Screw	3/8" X 1"
11	12H304	2	Lock Washer	3/8"
12	14H812	2	NUT	3/8"
13	19H3385	3	Cap Screw	1/2" X 1-1/8"
14	12H301	3	Lock Washer	1/2"
15	-	1	Part 15	WELLAND SERIAL NO. ( -70199) CONTROL VALVE MOUNTING ( AT29830 NO LONGER AVAILABLE)
15	AT34128	1	PLATE	WELLAND SERIAL NO. (70200- ) CONTROL VALVE MOUNTING
16	24H1304	2	WASHER	13/32" X 23/32" X 0.120"
17	AT30004	1	SPOOL VALVE	BOOM SECTION (RELIEF VALVE NOT INCLUDED)
18	AT30007	1	VALVE	BUCKET SECTION (RELIEF VALVE NOT INCLUDED)
19	AT30016	1	SPOOL VALVE	AUXILIARY SECTION (RELIEF VALVE NOT INCLUDED)
20	T31045	1	END PLATE	-
21	12H293	4	Lock Washer	7/16"
22	T31046	4	BOLT	(2 SPOOL)
22	T31049	4	CAP SCREW	(3 SPOOL)

CONTROL VALVE ASSEMBLY (TWO AND THREE SPOOL) [02B13]
