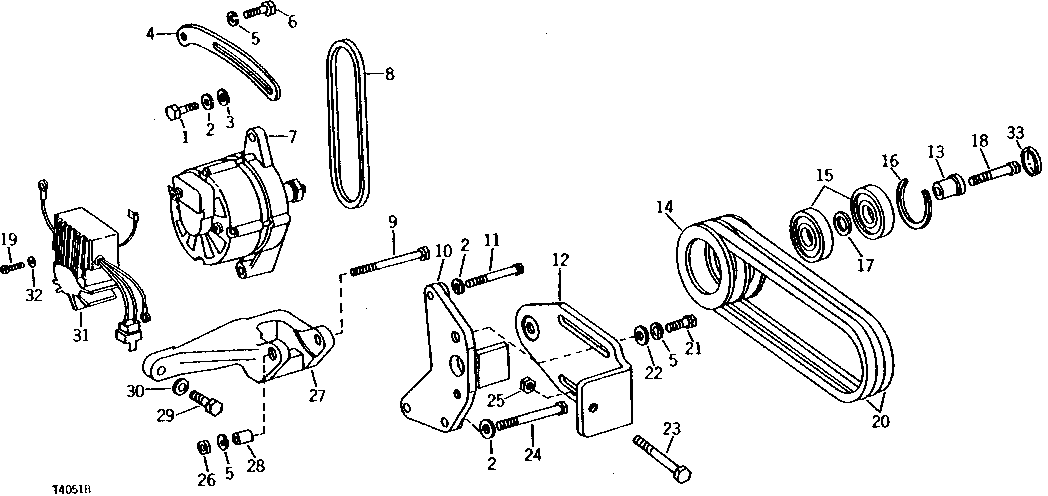

ALTERNATOR BRACKET AND IDLER PULLEY (ENGINE SERIAL NO. 280001- ) [02G20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2705	1	Cap Screw	5/16" X 1"
2	12H303	4	Lock Washer	5/16"
3	24H1292	1	Washer	11/32" X 3/4" X 0.120"
4	R107734	1	Strap	(SUB FOR T20204)
5	12H304	4	Lock Washer	3/8"
6	19H1648	1	Cap Screw	3/8" X 3/4"
7	-	1	Part 7	(SUB AT31670)
8	T31165	1	V-BELT	-
9	19H3445	1	Cap Screw	3/8" X 3-3/4"
10	-	1	Part 10	( AR50904 NO LONGER AVAILABLE)
11	19H3636	1	Cap Screw	5/16" X 2-1/2"
12	AR50905	1	SUPPORT	-
13	R43843	1	BUSHING	-
14	AR85604	1	KIT	(SUB JD8670, R55408, R66075, R66077, R66080 AND R66081) (SUB FOR R42840 OR R61961)
15	JD7142	2	Ball Bearing	-
15	JD9324	2	BALL BEARING	(USE WITH R61961)
16	R61963	1	SNAP RING	(USE WITH R61961)
16	D398R	1	SNAP RING	-
17	R42841	1	WASHER	-
18	R20634	1	BOLT	-
19	T31308	2	SCREW	-
20	AT30181	1	BELT SET	-
21	19H2284	2	Cap Screw	3/8" X 7/8"
22	24H1305	2	Washer	13/32" X 13/16" X 0.065"
23	19H2965	1	CAP SCREW	1/2" X 3-1/2"
24	19H1949	2	Cap Screw	5/16" X 2-1/2"
25	14H1040	1	Nut	1/2", (SUB FOR 14H809)
26	14H1076	1	Nut	3/8"
27	R49135	1	BRACKET	-
28	R45377	1	SPACER	-
29	19H2731	2	Cap Screw	7/16" X 1-3/8"
30	12H325	2	Lock Washer	7/16"
31	AT29926	1	VOLTAGE REGULATOR	-
32	12H315	2	Lock Washer	0.164"
33	R54213	1	Plug	(USE WITH R61961)

ALTERNATOR BRACKET AND IDLER PULLEY (ENGINE SERIAL NO. 280001- ) [02G20]
