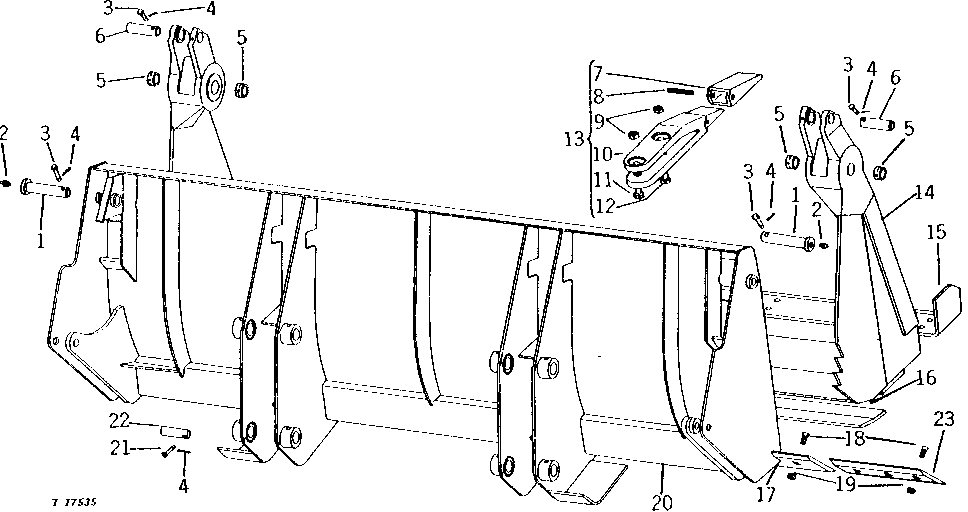

2-1/4 YARD DROTT 4-IN-1 BUCKET [02C09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	S29582	2	PIN FASTENER	(A) CLAM TO BLADE
2	S12031	2	LUBRICATION FITTING	(A)
3	S10786	4	PIN FASTENER	(A) 1/2" X 3-3/4"
4	S4627	6	COTTER PIN	(A) 1/8" X 1"
5	S23904	4	BUSHING	(A)
6	S18633	2	PIN FASTENER	(A) CLAM TO CYLINDER
7	S204157M1	10	TOOTH	(A) REPLACEABLE
8	S7894	10	PIN FASTENER	(A) SPRING, 1/2" X 2-1/2"
9	S16682	20	NUT	(A) 5/8"
10	S22929M1	10	TOOTH	(A)
11	S15714	10	BOLT	(A) 5/8" X 3-1/4"
12	S15713	10	BOLT	(A) 5/8" X 3"
13	S23948M1	10	TOOTH	(A)
14	S57926	1	JAW	(A)
15	S208968	1	CUTTING EDGE	(A) BUCKET
16	S82717	1	CLAMSHELL BUCKET	(A)
17	S208969	1	CUTTING EDGE	(A) MOLDBOARD
18	S3879	20	BOLT	(A) PLOW, 3/4" X 2", NO. 3
19	S4227	20	NUT	(A) 3/4"
20	S57927	1	BLADE	(A)
21	S10815	2	PIN FASTENER	(A) CLEVIS, 1/2" X 2-3/4"
22	S46134	2	PIN FASTENER	(A) CYLINDER BASE
23	S46223	2	BIT BRACE	(A) CORNER
..	S45226	2	DECAL	(A) CLEAN OUT
..	S82524	1	DECAL	(A) CLAM OPENING
..	S211719	1	DECALS	(A) TILT, CYLINDER
