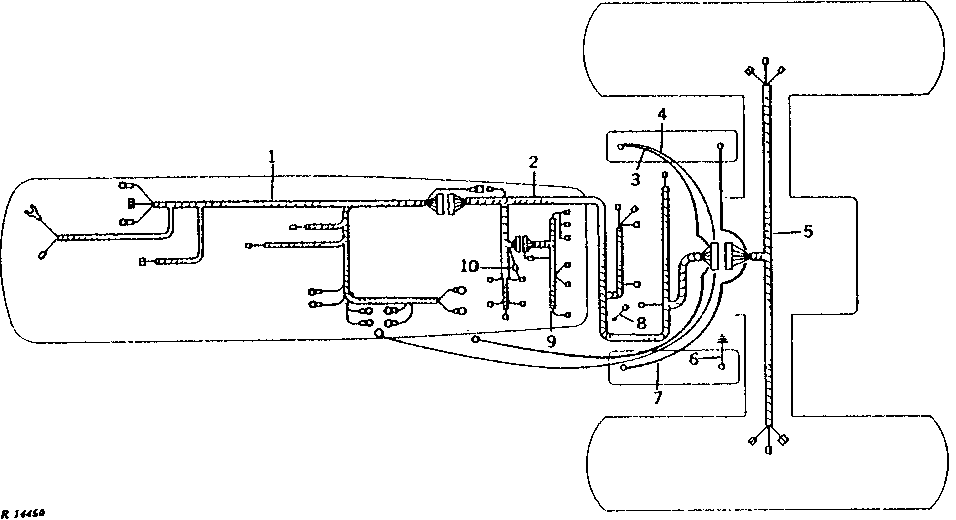

WIRING HARNESS AND BATTERY CABLES (SERIAL NO. 201000- ) [02H23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR41686	1	WIRING HARNESS	ALTERNATOR TO MAIN, (DIESEL) (INCLUDES CONNECTIONS FOR HORN, FUEL GAUGE SENDER, VACUUM INDICATOR SWITCH, STARTING CIRCUIT RELAY, FUEL SHUTOFF, OIL PRESSURE SWITCH)
1	R44302	1	Tie Band	-
1	R45211	2	Clamp	-
1	-	1	Part 1	ALTERNATOR TO MAIN, (GASOLINE) ( AR41685 NO LONGER AVAILABLE)
2	AR41683	1	WIRING HARNESS	INCLUDES CONNECTIONS (FOR CIRCUIT BREAKERS, SIDE LAMPS, HORN LIGHT AND KEY SWITCH, FLASHER, CIGAR LIGHTER, STARTER SAFETY SWITCH, HYDRAULIC OIL FILTER BYPASS SWITCH, AIR FILTER LAMP RELAY, FUSIBLE LINK LEAD)
2	B1986R	2	CLIP	WIRING HARNESS TO TRANSMISSION COVER SCREW
2	AR38453	1	FLASHER	WARNING LAMP
2	-	1	Part 8	FOR NO FLASHER ( AR41694 NO LONGER AVAILABLE)
3	-	1	Part 9	(DIESEL) ( AR45930 NO LONGER AVAILABLE)
3	-	1	Part 10	(GASOLINE) ( R39720 NO LONGER AVAILABLE)
3	R41439	1	Grommet	BATTERY CABLE TO CONTROL SUPPORT
4	R44302	1	Tie Band	(WIRING HARNESS TO BATTERY CABLE)
4	R27583	1	Grommet	WIRING LEAD TO SUPPORT
4	-	1	Part 12	BATTERY TO STARTER CIRCUIT RELAY, (DIESEL) ( AR47088 NO LONGER AVAILABLE)
5	AR41684	1	WIRING HARNESS	MAIN LIGHTING
6	-	1	Part 16	GROUND ( AR45928 NO LONGER AVAILABLE)
7	-	1	Part 17	BATTERY ( AR45929 - NO LONGER AVAILABLE)
8	AR46729	1	WIRING LEAD	44", CLUTCH OIL FILTER BYPASS VALVE SWITCH TO TRANSMISSION PRESSURE SWITCH ( AR46729 NO LONGER AVAILABLE)
8	R45211	1	Clamp	LEAD TO CLUTCH VALVE HOUSING
8	-	1	Part 20	15", TRANSMISSION PRESSURE SWITCH TO MAIN HARNESS ( AR46728 - NO LONGER AVAILABLE)
9	AR47856	1	WIRING HARNESS	INSTRUMENT PANEL, (INCLUDES CONNECTIONS FOR FUEL GAUGE, TACHOMETER LAMP, DIODE LEAD, AND OIL, ALTERNATOR, AND AIR CLEANER RESTRICTION INDICATOR LAMPS) (COLLAR SHIFT)
9	RE61109	1	WIRING HARNESS	INSTRUMENT PANEL, (SUB FOR AR47857) (POWER SHIFT)
9	-	1	Part 23	152 MM (6") ACCESSORY CIRCUIT BREAKER TO INSTRUMENT PANEL HARNESS, (MAKE FROM R32007, R32018, R32024 AND R32027) (FROM AR84006 WIRING REPAIR KIT)
10	-	1	Part 24	(MAKE FROM AR84006) FUSIBLE LINK
..	R45231	1	LABEL	WIRING INSTRUCTION
