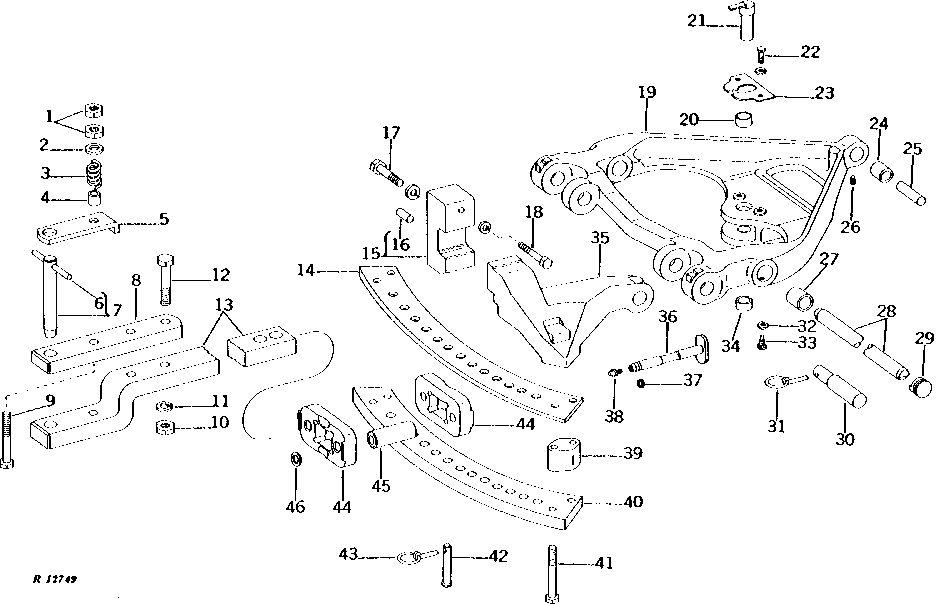

WIDE SWING DRAWBAR (SERIAL NO. -200999) [02F22]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H760	2	Nut	(A) 5/8"
2	24H1372	1	Washer	(A) 21/32" X 1-1/2" X 0.060"
3	F3541R	1	Spring	(A)
4	F3542R	1	Bushing	(A)
5	F3539R	1	Retainer	(A)
6	34H363	1	Spring Pin	3/8" X 4"
7	AR26462	1	PIN FASTENER	(A)
8	R26584	1	STRAP	(A)
9	19H3169	1	Cap Screw	(A) 5/8" X 4-1/4"
10	14H794	2	Nut	(A) 3/4"
11	12H236	2	Lock Washer	(A) 3/4"
12	19H1471	2	Cap Screw	(A) 3/4" X 3-1/2"
13	R34448	1	DRAWBAR	-
14	R34375	1	STRAP	(A)
15	-	1	Part 15	(A) R.H. ( AR32497 - NO LONGER AVAILABLE) (MARKED R33832)
15	-	1	Part 16	(A) L.H. ( AR32498 - NO LONGER AVAILABLE) (MARKED R33833)
16	T25317	2	DOWEL PIN	(SUB FOR R26015)
17	19H3107	4	Cap Screw	(A) 5/8" X 2-3/4"
17	12H294	4	Lock Washer	(A) 5/8"
18	19H1820	2	Cap Screw	1/2" X 3"
18	12H301	2	Lock Washer	(A) 1/2"
19	-	1	Part 22	FRONT, WITH BUSHINGS ( AR40402 - NO LONGER AVAILABLE) (MARKED R33824 OR R40556) (SUB FOR AR32494)
20	R40557	1	BUSHING	UPPER, (FOR AR40402 DRAWBAR FRONT SUPPORT)
21	AR44189	1	PIN	(SUB FOR AR32826)
22	19H2284	2	Cap Screw	3/8" X 7/8"
22	12H304	2	Lock Washer	3/8"
23	R96420	1	Retainer	(SUB FOR R34253 AND R56729)
24	R31438	1	BUSHING	-
25	R26503	1	DOWEL PIN	-
26	34H309	1	Spring Pin	1/4" X 5/8"
27	R26502	2	BUSHING	-
28	R33826	1	PIN	-
29	R33827	2	RETAINER	-
30	R28809	2	PIN FASTENER	(A)
31	B11182	2	QUICK LOCK PIN	-
32	12H303	2	Lock Washer	5/16"
33	R40928	2	BOLT	(SUB FOR R27196)
34	R40558	1	BUSHING	LOWER (FOR AR40402 FRONT DRAWBAR SUPPORT)
35	R40093	1	SUPPORT	(A) L.H. (SUB FOR R33835)
35	-	1	Part 39	(A) R.H. (SUB FOR R33834) ( R40092 NO LONGER AVAILABLE)
36	AR61656	2	Pin	(SUB FOR AR35345, AR41735 AND AR44820) (ALSO ORDER R73380 AND T10510)
37	R73380	2	Snap Ring	(A) (SUB FOR A369R)
38	JD7759	2	Lubrication Fitting	(A) 1/8"
39	R34373	2	SPACER	(A) REAR
40	R34376	1	SUPPORT	(A) REAR
41	19H3169	4	Cap Screw	(A) 5/8" X 4-1/4"
42	R58262	2	Pin	(A) (SUB FOR R28061) (SUB FOR R44917)
43	B11182	2	QUICK LOCK PIN	(A)
44	R34450	2	HANGER	(A)
45	R35839	2	ROLLER	(A)
46	24H448	2	Washer	(A) 25/32" X 1-1/8" X 0.090"
46	T10510	2	Washer	(A) (SUB FOR 24M7353)
