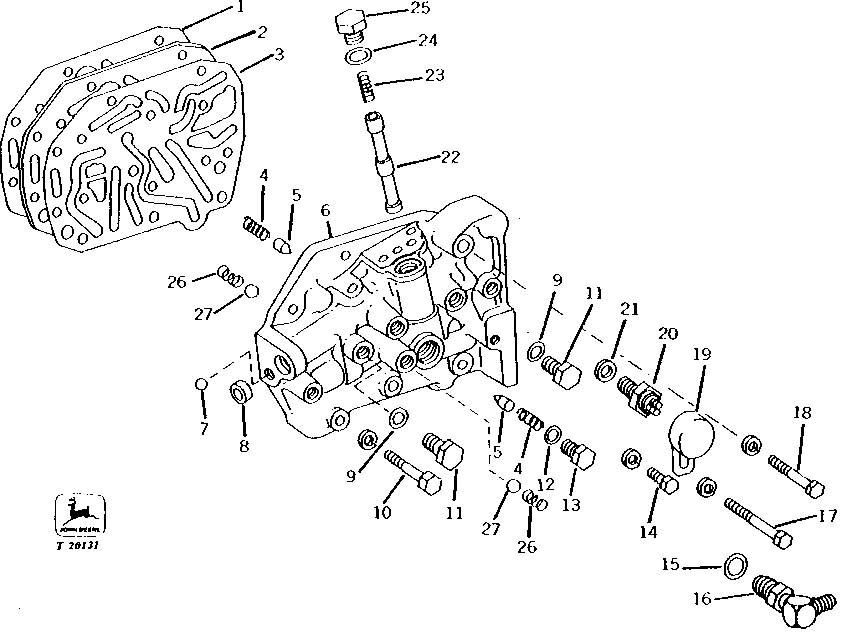

TRANSMISSION CONTROL VALVE (POWER SHIFT) [01I01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46817	1	GASKET	(SUB FOR R33273)
2	R33304	1	PLATE	-
3	R46818	1	GASKET	(SUB FOR R33274)
3	R47073	1	GASKET	(SUB FOR R42269)
4	R33277	4	SPRING	-
4	R42697	2	DETENT	-
5	R42697	4	DETENT	(SUB FOR R33305)
5	R33277	2	SPRING	-
6	AR49709	1	HOUSING	(MARKED R33076 OR R47159) (SUB FOR AR33890)
6	AR49710	1	HOUSING	(MARKED R47161) (SUB FOR AR44550 AND R42268)
7	D2361R	3	Ball	-
8	A3910R	1	PLUG	-
9	R26286	6	O-Ring	-
10	19H2458	3	Cap Screw	3/8" X 3"
10	12H304	3	Lock Washer	3/8"
11	R27094	6	Drain Plug	-
12	R26448	2	O-Ring	-
13	R27218	2	Fitting Plug	-
14	19H3239	2	Cap Screw	3/8" X 1-1/4"
14	12H304	4	Lock Washer	3/8"
14	19H1765	2	Cap Screw	3/8" X 1-3/4"
15	R26906	1	O-Ring	-
16	AR35712	1	ELBOW FITTING	-
17	19H3180	1	CAP SCREW	3/8" X 6-1/4"
17	12H304	1	Lock Washer	3/8"
18	19H2855	1	Cap Screw	3/8" X 3-1/4"
18	12H304	1	Lock Washer	3/8"
19	AR34663	1	COVER	-
20	R36265	1	SWITCH	-
21	T16911	1	SHIM	.38 MM (.015")
22	R42270	1	VALVE	-
23	R33280	1	SPRING	-
24	R26375	1	O-Ring	-
25	R39112	1	Fitting	-
26	R47816	2	Spring	-
27	D2361R	2	Ball	-

TRANSMISSION CONTROL VALVE (POWER SHIFT) [01I01]
