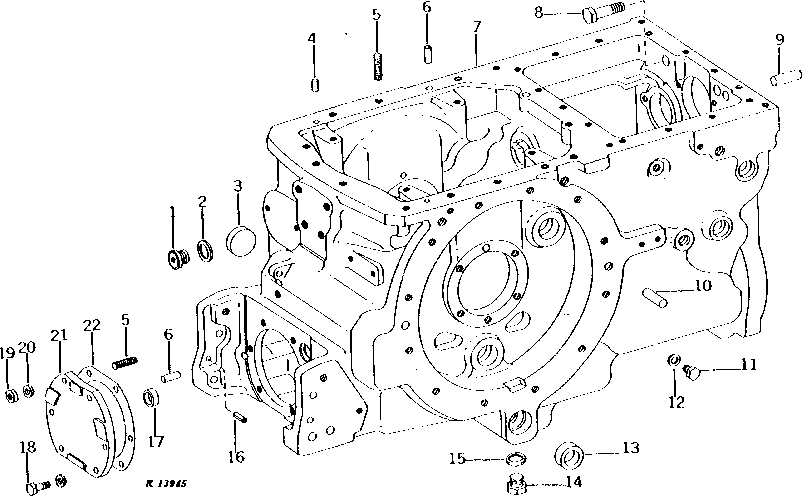

TRANSMISSION CASE (COLLAR SHIFT) (SERIAL NO. 201000- ) [01G21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27483	1	FITTING PLUG	-
2	H851R	1	WASHER	-
3	R38344	1	Plug	(TRACTORS EQUIPPED WITH 1000 RPM PTO ONLY OR TRACTORS LESS PTO)
4	R1612R	4	Dowel Pin	-
5	R32101	6	STUD	-
6	R48685	4	Dowel Pin	(SUB FOR A120R)
7	AR41776	1	TRANSMISSION CASE	(MARKED R40770)
8	19H2431	3	CAP SCREW	3/4" X 2-1/4", (SUB FOR 19H1782)
9	A776R	2	Pin	-
10	T25317	4	DOWEL PIN	-
11	R27218	1	Fitting Plug	(TRACTORS LESS DIFFERENTIAL LOCK)
12	T16911	1	SHIM	(TRACTORS LESS DIFFERENTIAL LOCK)
13	R26505	2	BUSHING	-
14	F3128R	1	DRAIN PLUG	-
15	A4827R	1	Washer	-
16	34H348	2	Spring Pin	3/8" X 1"
17	R33498	1	PLUG	(TRACTORS EQUIPPED WITH 1000 RPM PTO ONLY OR TRACTORS LESS PTO)
18	19H1741	4	CAP SCREW	1/2" X 1-1/8"
18	12H301	4	Lock Washer	1/2"
19	14H1040	2	Nut	1/2", (SUB FOR 14H809)
20	12H301	2	Lock Washer	1/2"
21	R33489	1	COVER	(TRACTORS LESS PTO)
22	R33337	1	GASKET	-

TRANSMISSION CASE (COLLAR SHIFT) (SERIAL NO. 201000- ) [01G21]
