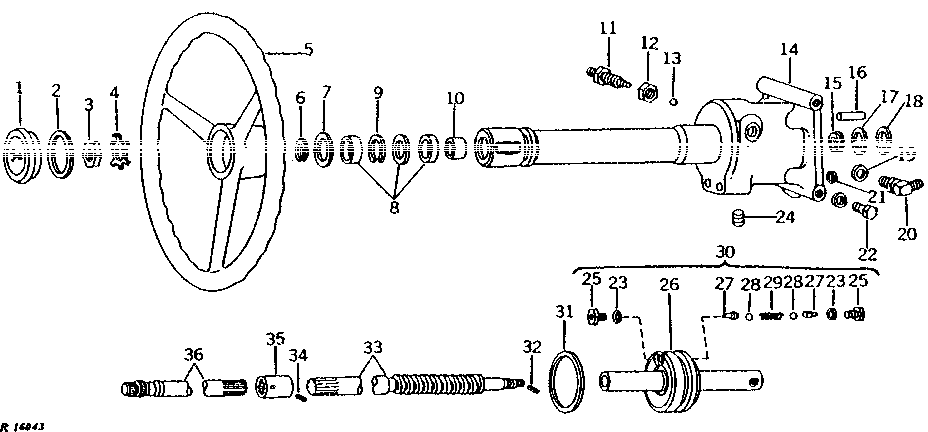

STEERING PISTON AND CYLINDER [01J04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34324	1	DECAL	-
2	B3690R	1	O-Ring	-
3	14H904	1	Nut	3/4"
4	R71650	1	LOCK WASHER	(SUB FOR T17148, THIS APPLICATION)
5	AR26625	1	STEERING WHEEL	-
5	AR78405	1	Steering Wheel	(SUB FOR T22875, THIS APPLICATION)
6	B169R	1	SNAP RING	-
7	R42629	1	WASHER	-
8	R32730	1	SEAL	(SUB FOR AR34172, THIS APPLICATION)
9	R26933	1	SNAP RING	-
10	R27320	1	BUSHING	-
11	R27299	1	SCREW	-
12	R27453	1	Nut	-
13	400R	1	Ball	1/4"
14	AR47289	1	CYLINDER	(MARKED R34118 OR R45297) (SUB FOR AR32700)
15	R27087	1	WASHER	-
16	R32186	2	DOWEL PIN	-
17	R26441	2	BACK-UP RING	-
18	A3606R	2	O-RING	-
19	R26448	1	O-Ring	-
20	AT35121	1	Elbow Fitting	(SUB FOR AR26725, THIS APPLICATION)
21	AR67783	1	O-RING KIT	STEERING VALVE CYLINDER TO COVER PACKING, (SUB FOR R26760 AND AR42009)
22	19H3239	1	Cap Screw	3/8" X 1-1/4"
22	19H2284	3	Cap Screw	3/8" X 7/8"
22	24H1305	1	Washer	13/32" X 13/16" X 0.065"
22	12H304	4	Lock Washer	3/8"
23	R26287	2	O-Ring	-
24	15H558	1	Pipe Plug	1/8", (SUB FOR R26287 AND R31631)
25	R31202	2	VALVE	-
26	AR30298	1	PISTON	(WITH ROD AND SNAP RING)
27	R31201	2	SHAFT	-
28	H871R	2	Ball	-
29	R11066	1	SPRING	(SUB FOR A4816R, THIS APPLICATION)
30	AR30297	1	PISTON	-
31	R40567	1	WASHER	(SUB FOR R26543 AND R26754)
32	11M7081	1	Cotter Pin	2.500 X 20 MM
33	R34125	1	SHAFT	-
34	34H282	1	Spring Pin	3/16" X 1"
35	R27319	1	SPLINED COUPLING	-
36	R73737	1	SHAFT	(SUB FOR R27318 AND R37426)
..	AR39585	1	KIT	STEERING PISTON CYLINDER AND VALVE ASSEMBLY OVERHAUL (THIS KIT CONTAINS ALL NECESSARY O-RINGS, PACKINGS, BACKUP RINGS, PAPER WASHERS, AND OIL SEAL TO COMPLETELY OVERHAUL THE STEERING UNIT)

STEERING PISTON AND CYLINDER [01J04]
