SPEED CONTROL RODS AND CHOKE CABLE (SERIAL NO. 201000- ) [01D08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H310	1	Lock Washer	3/8", (GASOLINE)
2	14H774	1	Nut	3/8", (GASOLINE)
3	AR45736	1	PUSH PULL CABLE	(GASOLINE)
3	R41441	1	GROMMET	-
4	T23688	1	BALL JOINT	-
5	14H649	1	Nut	1/4"
6	14H649	1	Nut	1/4"
6	12H302	1	Lock Washer	1/4"
7	R40989	1	LEVER	-
8	R40994	1	STUD	REAR (GASOLINE)
9	14H850	2	NUT	1/4"
10	AA5302R	1	BALL JOINT	(GASOLINE)
11	14H649	1	Nut	1/4"
11	12H302	1	Lock Washer	1/4"
12	24H1287	1	Washer	9/32" X 5/8" X 0.065", (GASOLINE)
13	11M7082	1	Cotter Pin	2.500 X 25 MM, (GASOLINE)
14	-	1	Part 17	(GASOLINE) ( R41572 NO LONGER AVAILABLE)
15	R26524	1	Clip	(GASOLINE)
16	P44982	1	Piston Ring	(GASOLINE)
17	-	1	Part 20	(GASOLINE) ( R41571 NO LONGER AVAILABLE)
18	24H1341	1	Washer	17/32" X 15/16" X 0.060", (GASOLINE)
19	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1", (GASOLINE)
19	12H304	2	Lock Washer	3/8", (GASOLINE)
20	-	1	Part 24	(GASOLINE) ( AR40705 NO LONGER AVAILABLE)
21	14H649	1	Nut	1/4", (DIESEL)
21	12H302	1	Lock Washer	1/4", (DIESEL)
22	14H649	2	Nut	1/4", (DIESEL)
23	AR46117	1	BALL JOINT	(DIESEL)
24	-	1	Part 29	(DIESEL) ( R41573 NO LONGER AVAILABLE)
25	R47673	1	ROD	(DIESEL) (USE WHEN AR69813 OR AR69814 REPLACEMENT INJECTION PUMP HAS BEEN INSTALLED)
26	R36123	1	BALL JOINT	(DIESEL) (USE WHEN AR69813 OR AR69814 REPLACEMENT INJECTION PUMP HAS BEEN INSTALLED)

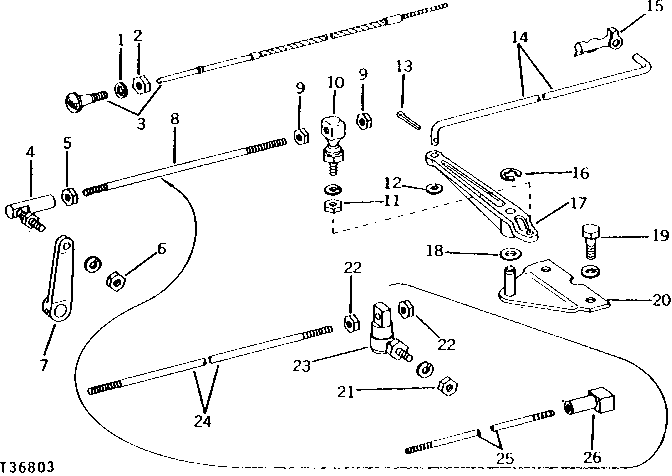

SPEED CONTROL RODS AND CHOKE CABLE (SERIAL NO. 201000- ) [01D08]
