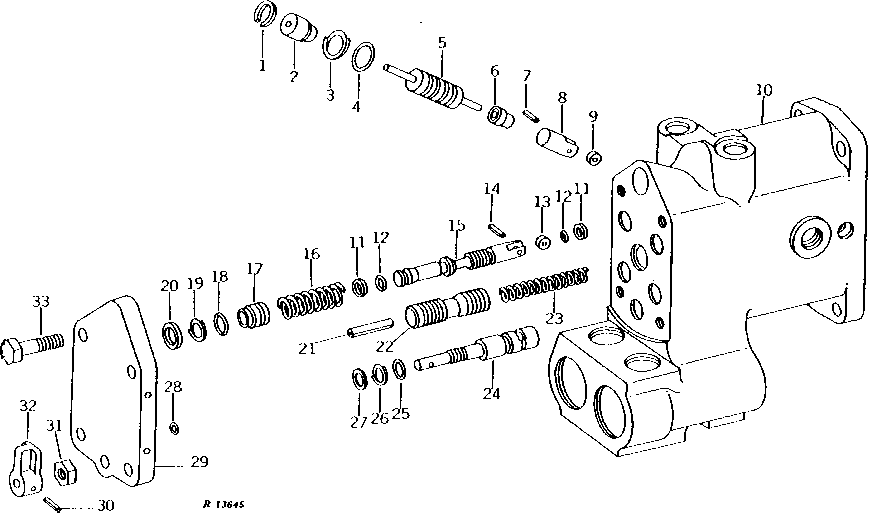

SELECTIVE CONTROL VALVE HOUSING AND VALVES (SERIAL NO. 201000- ) [02E01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	B474R	1	SNAP RING	-
2	AR40678	1	GUIDE	OUTER (SUB AR48933 AND R46722)
3	R26546	1	BACK-UP RING	-
4	B2762R	1	O-Ring	-
5	AR40939	1	PISTON	WITH PIN
6	AR40744	1	GUIDE	INNER
7	34H242	1	Spring Pin	1/8" X 7/16"
8	R40903	1	CAM FOLLOWER	-
9	R41613	1	WASHER	-
10	AR82572	1	HOUSING	WITH GUIDE (MARKED R65284) (ALSO ORDER, AR85628 AND R65289) (SUB FOR AR40827, MARKED R40499)
11	R26484	6	Back-Up Ring	-
12	A3917R	6	O-Ring	(SUB FOR R65286)
13	R51409	4	SPACER	(SUB FOR R53358, ALSO ORDER AR86535) (SUB FOR R41613)
14	34H242	4	Spring Pin	1/8" X 7/16"
15	AR86535	4	Valve	(SUB FOR AR45647, AR52629 AND AR56120, THIS APPLICATION)
16	R65501	2	Spring	RETURN (SUB FOR R41055, THIS APPLICATION)
16	R65502	2	Spring	PRESSURE (SUB FOR R41055)
17	R41156	4	GUIDE	-
18	R27166	4	O-Ring	-
19	R41057	4	BACK-UP RING	-
20	R26149	6	PACKING	-
21	34H284	1	Spring Pin	3/16" X 1-1/4"
22	R41154	1	VALVE	FLOW CONTROL
23	R41549	1	SPRING	-
24	R41149	1	VALVE	-
25	P46051	1	O-Ring	-
26	R40937	1	Back-Up Ring	-
27	R41339	1	Shim	.762 MM (.030")
28	R34812	1	O-Ring	-
29	AR40688	1	COVER	(MARKED R40899)
30	34H231	1	SPRING PIN	3/32" X 3/4"
31	14H846	1	NUT	3/8"
32	R62652	1	Arm	(SUB FOR R41338)
33	19H3239	4	Cap Screw	3/8" X 1-1/4"

SELECTIVE CONTROL VALVE HOUSING AND VALVES (SERIAL NO. 201000- ) [02E01]
