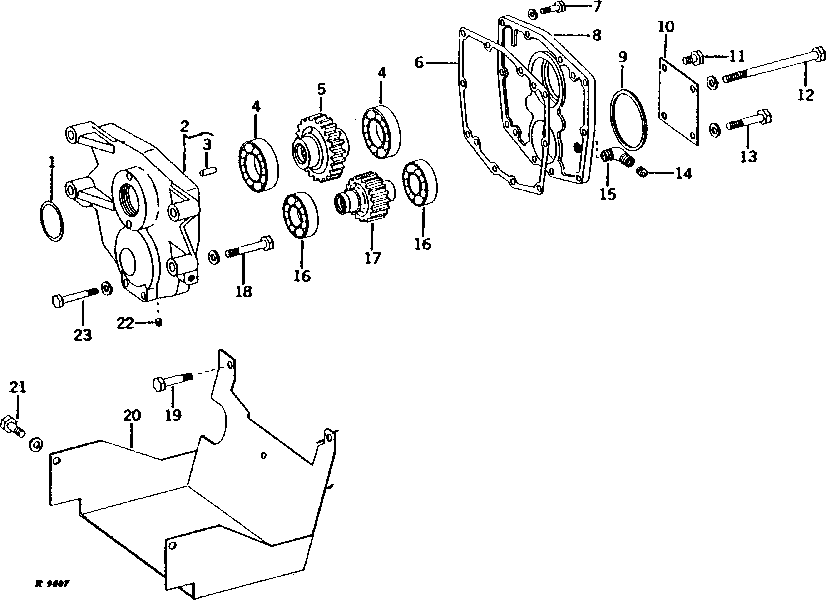

S.A.E. HYDRAULIC PUMP DRIVE (WITH LOADER) [02B19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12198	1	O-Ring	-
2	-	1	Part 2	(MARKED R34309) ( AR47536 USE IF AVAILABLE)
3	R26650	2	Dowel Pin	(SUB FOR A4879R)
4	JD9292	2	Ball Bearing	-
5	R34315	1	PINION	-
6	R44738	1	GASKET	(SUB FOR R34313)
7	19H3483	8	Cap Screw	3/8" X 1-1/8"
7	12H304	8	Lock Washer	3/8"
8	AR48685	1	COVER	(MARKED R34314)
8	F1737R	1	FILTER	-
9	R34317	1	PACKING	-
10	-	1	Part 12	(R34652 NO LONGER AVAILABLE)
11	19H2351	4	Cap Screw	1/2" X 1/2"
12	08H4268	2	Cap Screw	1/2" X 7"
12	12H301	2	Lock Washer	1/2"
13	19H1930	2	Cap Screw	1/2" X 2-1/2"
13	12H301	2	Lock Washer	1/2"
14	15H690	1	Pipe Plug	3/4"
15	15H621	1	Elbow Fitting	3/4", 90°
16	JD9345	2	Ball Bearing	-
17	R34316	1	GEAR	( R34316 NO LONGER AVAILABLE)
18	19H3057	4	Cap Screw	1/2" X 2-3/4"
18	12H301	4	Lock Washer	1/2"
19	19H2735	2	Cap Screw	1/2" X 2"
20	-	1	Part 25	( AR32924 NO LONGER AVAILABLE)
21	19H1741	2	CAP SCREW	1/2" X 1-1/8"
21	12H301	2	Lock Washer	1/2"
22	15H559	1	Pipe Plug	1/4"
23	19H2732	2	Cap Screw	3/8" X 2-3/4"
23	12H304	2	Lock Washer	3/8"

S.A.E. HYDRAULIC PUMP DRIVE (WITH LOADER) [02B19]

Нет текстового описания
