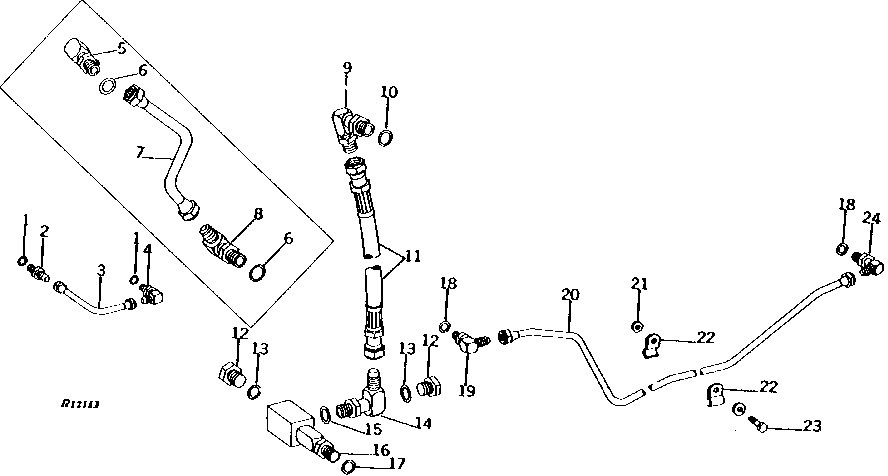

ROCKSHAFT OIL PIPES (COLLAR SHIFT) (SERIAL NO. -200999) [02D01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26448	2	O-Ring	-
2	R27212	1	Fitting	-
3	AR31512	1	OIL LINE	ROCKSHAFT VALVE HOUSING TO ROCKSHAFT PISTON COVER
4	AT35121	1	Elbow Fitting	(SUB FOR AR26725, THIS APPLICATION)
5	AT48506	1	Elbow Fitting	(SUB FOR AR28251, THIS APPLICATION)
6	U12547	2	O-Ring	(SUB FOR (2) F3171R)
7	-	1	Part 7	( AR28250 NO LONGER AVAILABLE)
8	AT32331	1	Elbow Fitting	(SUB FOR AR26723, THIS APPLICATION)
9	AR27888	1	ELBOW FITTING	-
10	U12547	1	O-Ring	(SUB FOR F3171R)
11	-	1	Part 11	( AR40468 NO LONGER AVAILABLE)
12	R27175	1	Drain Plug	-
12	R27175	1	Drain Plug	(TRACTORS LESS ROCKSHAFT)
13	U12547	1	O-Ring	(A) (SUB FOR F3171R) (TRACTORS LESS ROCKSHAFT)
13	U12547	1	O-Ring	(A) (SUB FOR F3171R)
14	AT32331	1	Elbow Fitting	(SUB FOR AR26723, THIS APPLICATION)
15	U12547	1	O-Ring	(A) (SUB FOR F3171R)
16	AR31616	1	MANIFOLD	(A) HYDRAULIC OIL RETURN, ADJUSTABLE
17	U12547	1	O-Ring	(A) (SUB FOR F3171R)
18	R26375	2	O-Ring	-
19	AT32332	1	Elbow Fitting	(SUB FOR AR26763, THIS APPLICATION)
20	AR32606	1	LINE	(SUB AR34768)
20	AR34768	1	OIL LINE	-
21	A147R	1	WASHER	(A) (SUB FOR R1929R)
22	R27539	4	CLAMP	-
23	19H1648	1	Cap Screw	3/8" X 3/4"
23	19H2676	1	Cap Screw	HS, SAE 8, 3/8" X 1"
23	12H304	2	Lock Washer	3/8"
24	AR27738	1	ELBOW FITTING	-

ROCKSHAFT OIL PIPES (COLLAR SHIFT) (SERIAL NO. -200999) [02D01]
