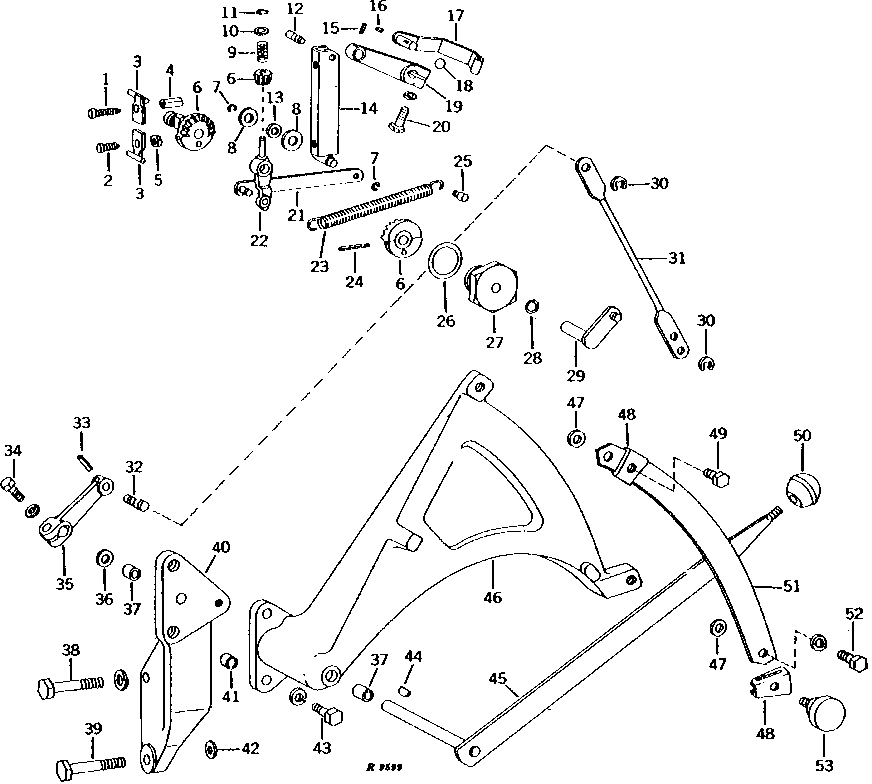

ROCKSHAFT LINKAGE AND CONTROL (SERIAL NO. -200999) [02C22]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26554	1	SET SCREW	-
2	R26762	1	BOLT	-
3	AR26546	2	LEVER	WITH PIN
4	R26567	1	NUT	-
5	14H649	1	Nut	1/4"
6	AR31274	1	SHAFT	(SUB FOR AR31272) (ALSO ORDER R27674 AND R27675)
6	R27674	1	GEAR	-
6	R27675	1	GEAR	-
7	R72653	2	Snap Ring	(SUB FOR M2396T)
8	24M7207	2	Washer	8.400 X 24 X 2 MM
9	R26487	1	SPRING	-
10	24M7055	1	Washer	8.400 X 16 X 1.600 MM
11	R26386	1	SNAP RING	-
12	-	1	Part 14	( R27372 NO LONGER AVAILABLE)
13	R27215	1	WASHER	-
14	AR26711	1	LINK	LOAD SELECTOR CONTROL, WITH PIN
15	34H231	1	SPRING PIN	3/32" X 3/4"
16	26H67	1	Shaft Key	1/8" X 3/8"
17	AR26450	1	LEVER	LOAD SELECTOR CONTROL, WITH PIN
18	R394R	1	O-Ring	-
19	R26571	1	LEVER	-
20	19H2705	1	Cap Screw	5/16" X 1"
20	12H303	1	Lock Washer	5/16"
21	AR26523	1	LINK	WITH PIN
22	R26772	1	ARM	-
23	R26776	1	Spring	-
24	34H239	1	SPRING PIN	3/32" X 1-1/2"
25	R26564	1	PIN	-
26	R26773	1	O-Ring	-
27	R27214	1	BEARING HOUSING W/O BEARING	-
28	R394R	1	O-Ring	-
29	-	1	Part 32	( AR31007 NO LONGER AVAILABLE)
30	T12808	2	SNAP RING	-
31	-	1	Part 34	( R31527 NO LONGER AVAILABLE)
32	-	1	Part 35	( R31947 NO LONGER AVAILABLE)
33	34H231	1	SPRING PIN	3/32" X 3/4"
34	19H2705	1	Cap Screw	5/16" X 1"
34	12H303	1	Lock Washer	5/16"
35	R26571	1	LEVER	-
36	24H1227	1	Washer	17/32" X 13/16" X 0.060"
37	T10362	2	BUSHING	-
38	19H2106	2	Cap Screw	7/16" X 2-3/4"
38	12H293	2	Lock Washer	7/16"
39	19H3057	1	Cap Screw	1/2" X 2-3/4"
40	-	1	Part 45	( R31946 NO LONGER AVAILABLE)
41	M2152T	2	WASHER	-
42	D2491R	2	SHIM	.762 MM (.030")
43	19H2633	3	Cap Screw	3/8" X 1-1/2"
43	12H304	3	Lock Washer	3/8"
44	26H67	1	Shaft Key	1/8" X 3/8"
45	-	1	Part 51	CONTROL, WITH SHAFT ( AR31008 NO LONGER AVAILABLE)
45	-	1	Part 52	CONTROL, WITH SHAFT ( AR41090 NO LONGER AVAILABLE)
46	R31948	1	BRACKET	(SUB AR41090 AND R41432)
46	-	1	Part 54	( R41432 NO LONGER AVAILABLE)
47	24H1305	1	Washer	13/32" X 13/16" X 0.065"
48	-	2	Part 56	( R31531 - NO LONGER AVAILABLE)
49	19H2554	1	Cap Screw	3/8" X 5/8"
50	F2861R	1	KNOB	-
51	-	1	Part 59	( R31525 NO LONGER AVAILABLE)
52	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
52	12H304	2	Lock Washer	3/8"
53	-	1	Part 62	( R31526 NO LONGER AVAILABLE)
