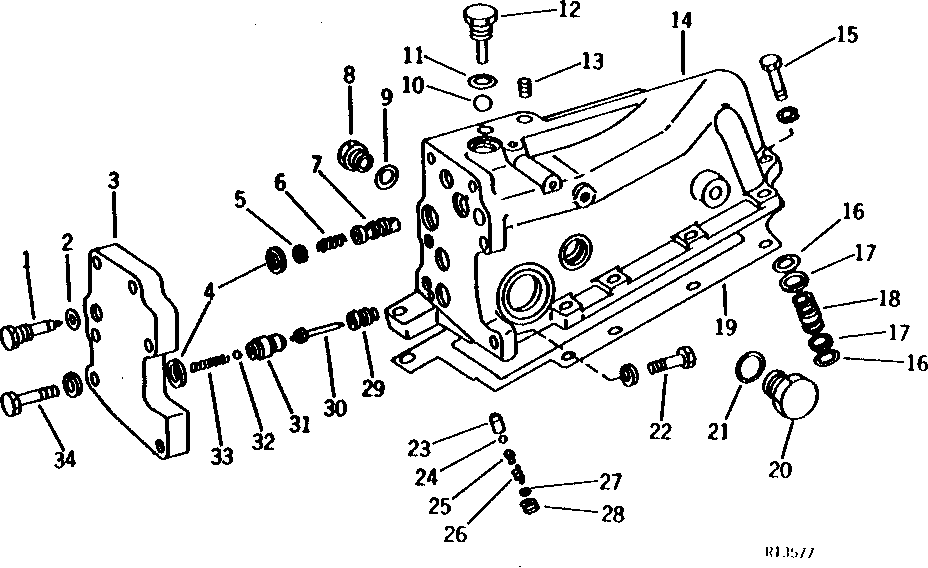

ROCKSHAFT CONTROL VALVE HOUSING (SERIAL NO. 201000- ) [02C20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R40881	1	Fitting	-
2	R26448	1	O-Ring	-
3	R41444	1	VALVE COVER	(SINGLE OR NO SELECTIVE CONTROL)
4	R26149	6	PACKING	-
5	B1664R	1	SHIM	.762 MM (.030")
6	R26566	1	SPRING	-
7	R44536	1	VALVE	-
8	R39112	1	Fitting	-
9	R26375	1	O-Ring	-
10	A174R	1	Ball	-
11	R26906	1	O-Ring	-
12	-	1	Part 12	(SUB FOR AR26761) ( R63464 NO LONGER AVAILABLE)
13	15H558	3	Pipe Plug	1/8"
14	AR48005	1	HOUSING	ROCKSHAFT CONTROL VALVE, WITH TUBES AND PLUGS, (MARKED R40541) (SUB FOR AR41976)
15	19H3239	9	Cap Screw	3/8" X 1-1/4"
15	12H304	9	Lock Washer	3/8"
16	R27166	4	O-Ring	-
17	R41057	3	BACK-UP RING	-
17	R45925	1	Back-Up Ring	-
18	R40945	1	VALVE	-
18	R45924	1	BUSHING	-
19	R40896	1	GASKET	-
20	R27175	1	Drain Plug	-
21	U12547	1	O-Ring	(SUB FOR F3171R)
22	19H2500	1	CAP SCREW	7/16" X 1-3/8"
22	12H293	1	Lock Washer	7/16"
23	R40893	1	VALVE SEAT INSERT	-
24	R41776	1	BALL	-
25	R41777	1	PIN	-
26	R27730	1	SPRING	-
27	R40895	1	SHIM	.254 MM (.010")
28	R40894	1	ORIFICE	-
29	AR78483	2	GUIDE	(SUB FOR AR31703)
30	R44298	2	SHAFT	-
31	R44299	2	VALVE	-
32	400R	2	Ball	1/4"
33	R26565	2	COMPRESSION SPRING	-
34	19H3205	5	Cap Screw	7/16" X 1-1/2"
34	12H293	5	Lock Washer	7/16"

ROCKSHAFT CONTROL VALVE HOUSING (SERIAL NO. 201000- ) [02C20]
