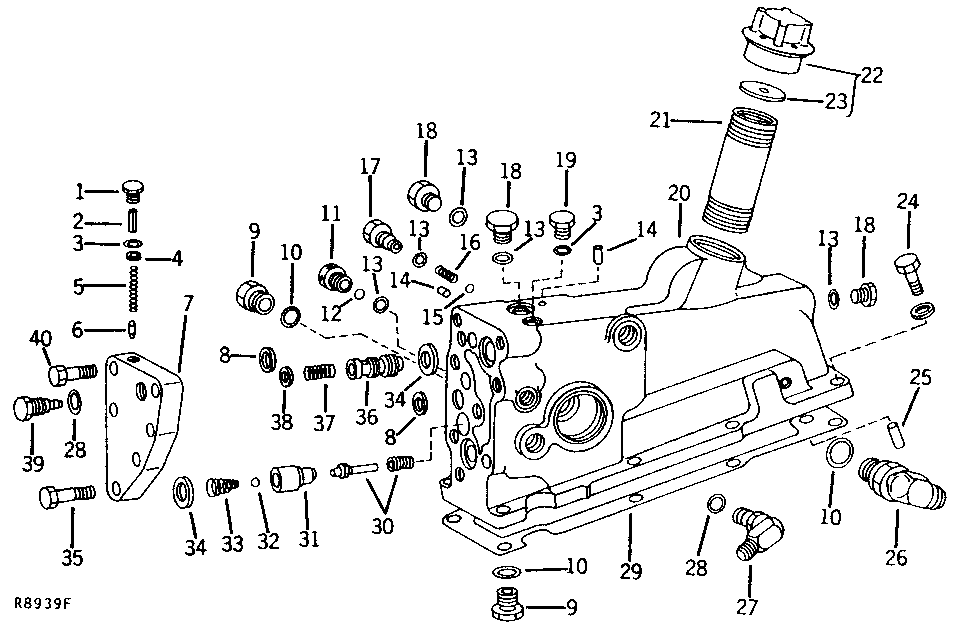

ROCKSHAFT CONTROL VALVE HOUSING (SERIAL NO. -200999) [02C18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27216	1	DRAIN PLUG	-
2	34H247	1	Spring Pin	1/8" X 3/4"
3	R26287	3	O-Ring	-
4	R26478	1	SHIM	.508 MM (.020")
4	R26479	1	SHIM	.762 MM (.030")
5	R26477	1	SPRING	-
6	R31565	1	VALVE	-
7	AR31754	1	COVER	(MARKED R32387)
8	F2741R	2	Packing	-
9	R39112	3	Fitting	(SUB FOR R28095)
10	R26375	4	O-Ring	-
11	R27094	2	Drain Plug	-
12	-	1	Part 13	(A) ( R28785 NO LONGER AVAILABLE) .127 MM (.005")
12	R28505	1	SOLID SHIM	.762 MM (.030")
12	-	1	Part 14	(A) ( R28786 NO LONGER AVAILABLE) .254 MM (.010")
13	R26286	5	O-Ring	-
14	F1840R	2	DOWEL PIN	-
15	H871R	1	Ball	-
16	R27981	1	SPRING	-
17	-	1	Part 20	( R27979 USE IF AVAILABLE)
18	R27094	3	Drain Plug	-
19	R31631	1	DRAIN PLUG	-
20	AR32610	1	HOUSING	ROCKSHAFT CONTROL VALVE, WITH DOWEL PINS, METERING SHAFTS, AND GUIDES, (MARKED R34011 OR R42692) (SUB FOR AR32608) (ALSO ORDER AR30110, (2) R26758 AND (8) 19H2633)
21	-	1	Part 24	( R27606 NO LONGER AVAILABLE)
22	AR30697	1	CAP	WITH BREATHER AND GASKET, (MARKED R32715)
23	R31486	1	WASHER	-
24	19H3239	8	Cap Screw	3/8" X 1-1/4"
24	12H304	8	Lock Washer	3/8"
25	R26650	1	Dowel Pin	(SUB FOR A4879R)
26	AT32332	1	Elbow Fitting	(SUB FOR AR26763, (SUB FOR AR26763) THIS APPLICATION)
27	AT35121	1	Elbow Fitting	(SUB FOR AR26725, THIS APPLICATION)
28	R26448	2	O-Ring	-
29	R26573	1	GASKET	-
30	AR39777	1	SHAFT	METERING, WITH GUIDE, ROCKSHAFT PRESSURE CONTROL VALVE
30	AR30094	1	SHAFT	METERING, WITH GUIDE, ROCKSHAFT RETURN CONTROL VALVE
31	R44299	2	VALVE	(SUB FOR R27512)
32	400R	2	Ball	1/4"
33	R26565	2	COMPRESSION SPRING	-
34	R26149	3	PACKING	-
35	19H2993	3	Cap Screw	1/2" X 1-1/2"
36	R26460	1	Control Valve	-
37	R26566	1	SPRING	-
38	B1664R	2	SHIM	.762 MM (.030")
39	R40799	1	DRAIN PLUG	(WITH TWO B1664R SUB FOR R32246)
40	19H3205	3	Cap Screw	7/16" X 1-1/2"

ROCKSHAFT CONTROL VALVE HOUSING (SERIAL NO. -200999) [02C18]
