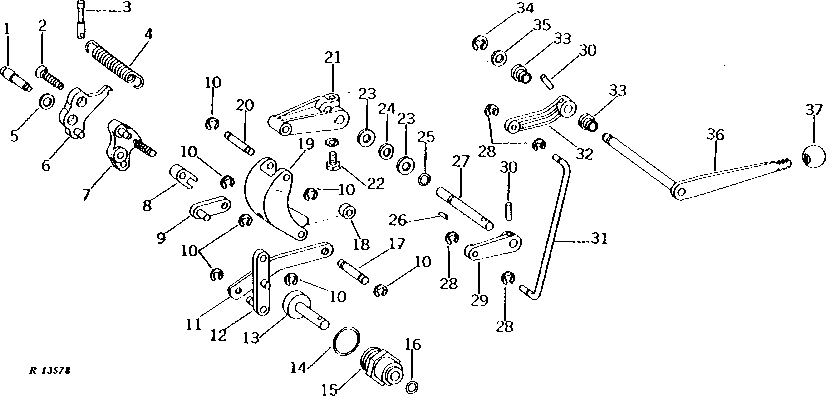

ROCKSHAFT CONTROL LINKAGE AND LOAD SELECTOR CONTROL (SERIAL NO. 201000- ) [02C25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R40949	1	SHAFT	-
2	T22228	1	SCREW	-
3	R41108	1	PIN FASTENER	-
4	R44300	1	SPRING	-
5	24H1321	1	Shim	.4 572 MM (0.018")
6	AR40676	1	LEVER	-
7	AR81783	1	LEVER	CONTROL VALVE ADJUSTING, WITH PINS AND SPRING, (SUB FOR AR40754) (ALSO ORDER R64843, R64845 AND T519T)
8	R40885	1	NUT	-
9	AR40675	1	PIN FASTENER	WITH PIN
10	R72653	7	Snap Ring	(SUB FOR M2396T)
11	R41079	1	LINK	-
12	AR40753	1	LINK	OPERATING, WITH PINS
13	R41077	1	SHAFT	-
14	U13639	1	O-Ring	-
15	R41115	1	BEARING HOUSING W/O BEARING	-
16	R394R	1	O-Ring	-
17	R41118	1	PIN FASTENER	-
18	R41661	1	BUSHING	-
19	AR86775	1	STARTER MOTOR KIT	(SUB FOR R40886 AND AR58474)
20	-	1	Part 20	( R41119 - NO LONGER AVAILABLE)
21	AR86775	1	STARTER MOTOR KIT	(SUB FOR R40944 AND AR58474)
22	19H2705	1	Cap Screw	5/16" X 1"
22	12H303	1	Lock Washer	5/16"
23	24H1625	2	Washer	17/32" X 1" X 0.120"
24	T519T	1	Washer	-
25	R394R	1	O-Ring	-
26	26H67	1	Shaft Key	1/8" X 3/8"
27	R41117	1	SHAFT	-
28	R27507	4	Snap Ring	-
29	R40892	1	LEVER	-
30	34H297	2	Spring Pin	7/32" X 1"
31	R40916	1	PIN	-
32	R40915	1	Lever	-
33	R41076	2	Grommet	-
34	P44982	1	Piston Ring	-
35	24H1227	1	Washer	17/32" X 13/16" X 0.060"
36	AR40683	1	LEVER	-
37	R40948	1	KNOB	-

ROCKSHAFT CONTROL LINKAGE AND LOAD SELECTOR CONTROL (SERIAL NO. 201000- ) [02C25]
