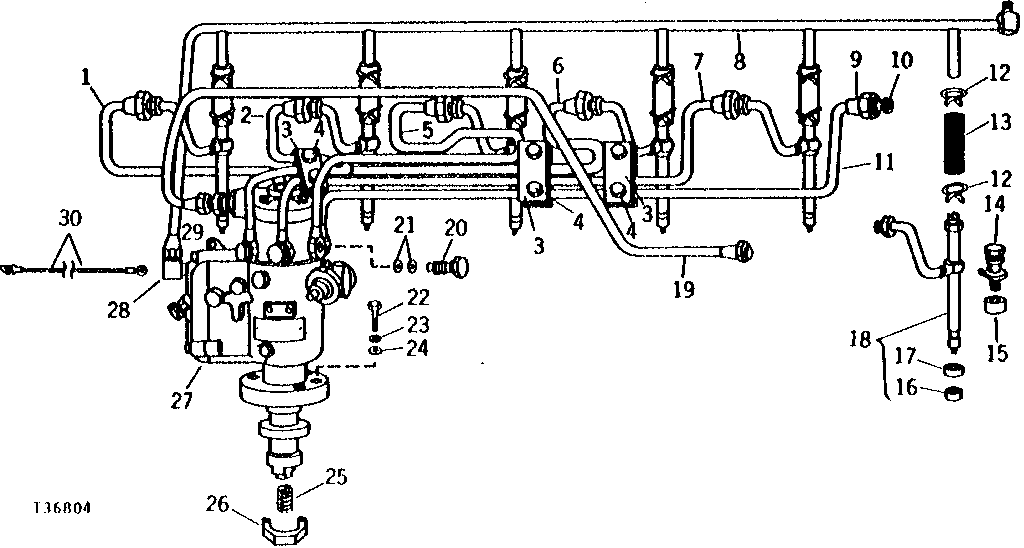

REPLACEMENT FUEL INJECTION PUMP, NOZZLES AND PIPES (ENGINE SERIAL NO. 215000- ) [01F07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR51199	1	FUEL LINE	-
2	AR51198	1	FUEL LINE	-
3	R26789	3	STRAP	-
3	R26790	3	CUSHION	-
3	R26728	3	STRAP	-
4	19H1914	6	Cap Screw	1/4" X 1"
5	AR51197	1	FUEL LINE	-
6	AR51196	1	FUEL LINE	-
7	AR51195	1	FUEL LINE	-
8	AR34807	1	FUEL LINE	-
9	R34763	6	FITTING	-
10	R34762	6	SLEEVE	-
11	AR51194	1	FUEL LINE	-
12	R34766	12	Clamp	-
13	R34765	6	BOOT	-
14	R34760	6	CLAMP	-
15	R34761	6	SPACER	-
16	R48000	6	Seal	-
17	R34764	6	WASHER	-
18	-	6	Part 20	(SUB AR50781, SE501161 OR SE501163) (SUB FOR AR46846 OR AR49226)
19	AR31553	1	FUEL LINE	-
20	R26726	6	HOLLOW SCREW	-
21	T20055	12	WASHER	-
22	19H1849	2	Cap Screw	5/16" X 1-1/4"
23	12H303	2	Lock Washer	5/16"
24	24H1136	2	Washer	11/32" X 11/16" X 0.065"
25	R44686	1	SPRING	-
26	AR69420	1	CLAMP	-
27	AR69413	1	FUEL INJECTION PUMP	(C) (ROOSA-MASTER NO. JDB633AL2721)
27	SE500551	1	FUEL INJECTION PUMP	(REMAUNFACTURED FOR RE69413)
27	AR69414	1	FUEL INJECTION PUMP	(D) (ROOSA-MASTER NO. JDB633AL2719)
28	AR40820	1	ELBOW FITTING	-
29	R32136	1	FITTING	-
30	AR49907	1	WIRING LEAD	-
-	SE501163	1	NOZZLE	(PKG OF 6) (ALSO ORDER BOOT) (REMANUFACTURED FOR AR50781)
-	SE501161	1	NOZZLE	(PKG OF 1) (ALSO ORDER BOOT) (REMANUFACTURED FOR AR50781)

REPLACEMENT FUEL INJECTION PUMP, NOZZLES AND PIPES (ENGINE SERIAL NO. 215000- ) [01F07]
