Открытый узел

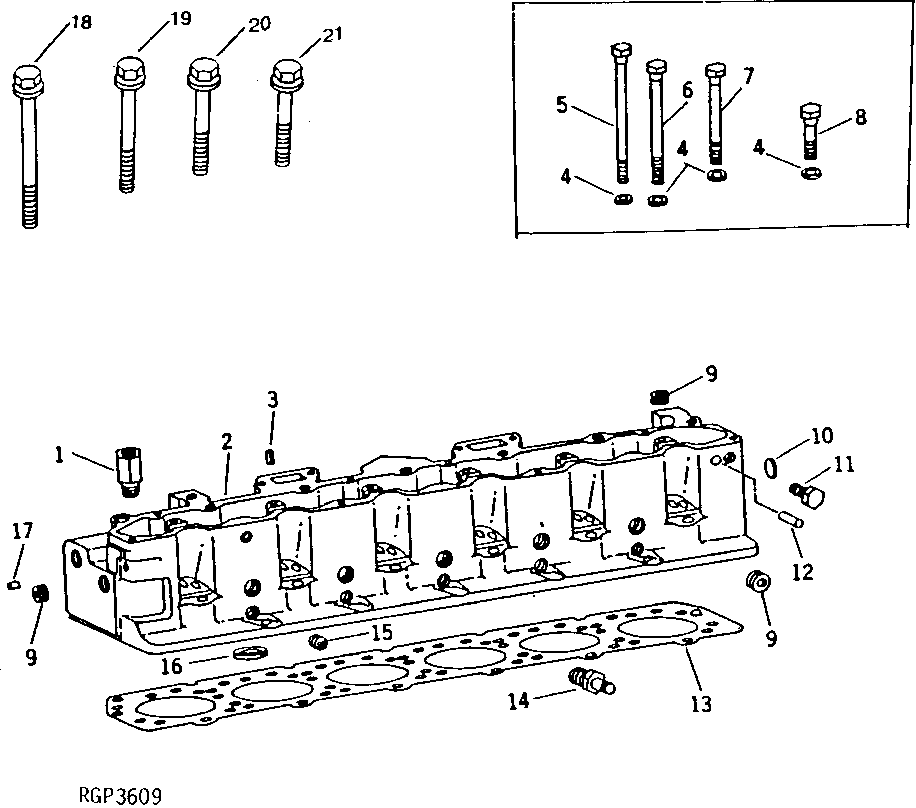

REPLACEMENT CYLINDER HEAD AND GASKET (ENGINE SERIAL NO. 215000- ) [01B12]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41285	1	Adapter Fitting	-
2	AR48182	1	CYLINDER HEAD	(A) (MARKED R40550, R45180 OR R46080) (SUB FOR AR40311, AR40312, AR47067 OR AR47068) (ALSO ORDER (6) R45161)
2	AR48183	1	CYLINDER HEAD	(B) (MARKED R40560 OR R46090) (SUB FOR AR40314)
2	SE500614	1	CYLINDER HEAD	(A) (MARKED R40560 OR R46090) (REMANUFACTURED FOR AR48183)
3	34H387	1	Spring Pin	3/16" X 3/4"
4	R76126	26	Washer	(USE WITH R62420, R62419, R62418, R62421, R42727 AND R45161 THIS APPLICATION)
5	R62420	7	SCREW	(SUB FOR R44216 OR R45194) (SUB R88045)
6	R62419	8	SCREW	(SUB FOR R44215 OR R45193) (SUB R88044)
7	R62418	5	SCREW	(SUB FOR R44214 OR R45192) (SUB R88043)
8	R42727	6	CAP SCREW	(A)
8	R45161	6	CAP SCREW	(A)
8	R62421	6	SCREW	(B) (SUB FOR R42728 OR R45195) (SUB R88042)
9	15H665	12	PIPE PLUG	3/4"
10	-	1	Part 14	(A) ( 30H37 - NO LONGER AVAILABLE)
11	R45692	2	Cap Screw	-
12	R20423	1	DOWEL PIN	-
13	R41609	1	ENGINE CYLINDER HEAD GASKET	(A)
13	R48291	1	ENGINE CYLINDER HEAD GASKET	(B) (SUB FOR R41709) (MARKED R48291)
14	R41071	1	Fitting	-
15	15H624	5	Pipe Plug	(A) 1/2"
16	R34593	1	VALVE SEAT INSERT	0.25MM (.010") EXHAUST, OVERSIZE (LP-GAS)
16	R43681	1	VALVE SEAT INSERT	(B) EXHAUST, STANDARD
16	R43683	1	VALVE SEAT INSERT	(B) 0.25MM (.010") EXHAUST, OVERSIZE
16	R43680	1	VALVE SEAT INSERT	(B) INTAKE, STANDARD
16	R43682	1	VALVE SEAT INSERT	(B) 0.25MM (0.10") INTAKE, OVERSIZE
16	R33634	6	VALVE SEAT INSERT	EXHAUST, STANDARD, (USE WITH R46080 OR R46090)
17	F1743R	1	Dowel Pin	-
18	R88045	7	CAP SCREW	(SUB FOR R62420)
19	R88044	8	CAP SCREW	(SUB FOR R62419)
20	R88043	5	Cap Screw	(SUB FOR R62418)
21	R88042	6	CAP SCREW	(B) (SUB FOR R62421)

REPLACEMENT CYLINDER HEAD AND GASKET (ENGINE SERIAL NO. 215000- ) [01B12]
