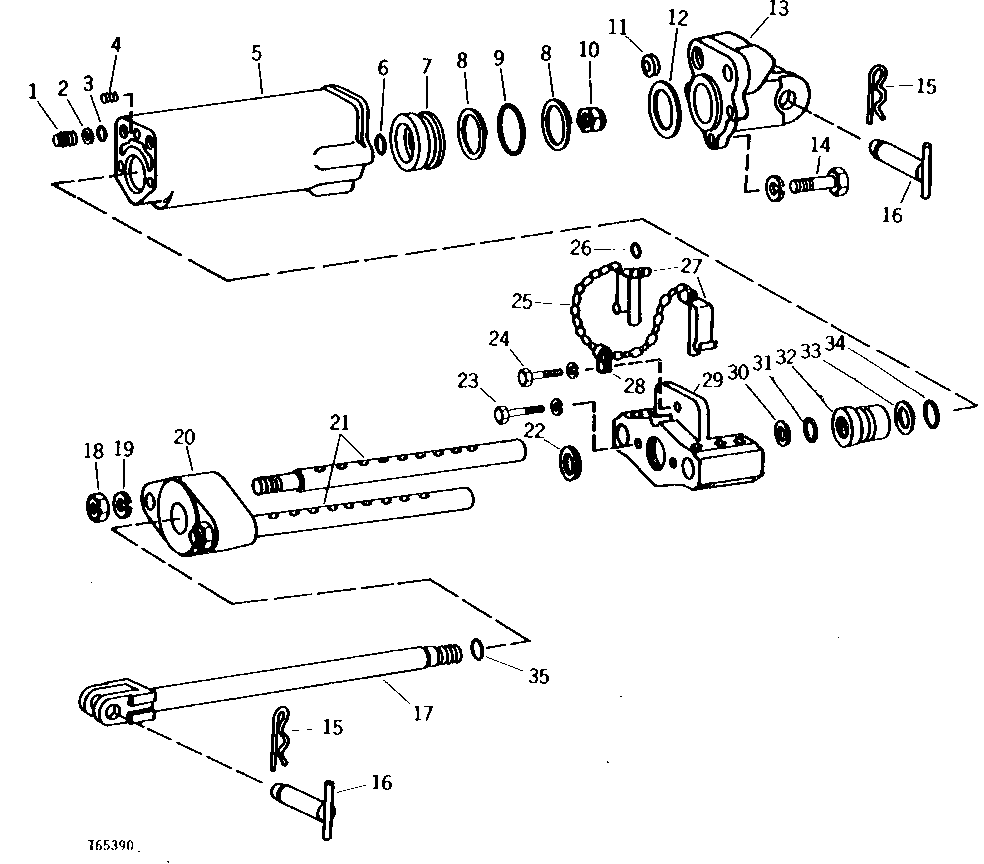

REMOTE CYLINDER (MECHANICAL STOP TYPE) [02F11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	15H561	1	Pipe Plug	1/2"
2	R34131	1	Plug	(A)
3	R32588	1	Back-Up Ring	(A)
4	R459R	1	O-Ring	(A)
5	R27421	1	CYLINDER	-
6	R27564	1	O-Ring	-
7	R27422	1	PISTON	(SUB R44296)
7	R44296	1	PISTON	-
8	R27649	2	BACK-UP RING	(A)
9	A4728R	1	O-Ring	(A)
10	-	1	Part 11	( R41198 - NO LONGER AVAILABLE) (SUB FOR F2439R)
11	A4723R	2	Washer	(A)
12	A4722R	1	Washer	(A)
13	R27427	1	HYDRAULIC CYLINDER CAP	-
14	19H2473	4	Cap Screw	1/2" X 1-3/4"
14	12H301	4	Lock Washer	1/2"
15	A3581R	2	Spring Locking Pin	-
16	AR47825	2	Pin Fastener	(A) (SUB FOR AA6309R)
17	AR34838	1	ROD	(SUB AR45545)
17	AR45545	1	ROD	(A)
18	14H905	2	Nut	(A) 3/4"
19	12H236	2	Lock Washer	(A) 3/4"
20	R36952	1	Stop	(A)
21	R44287	2	Rod	(A)
21	-	2	Part 24	( R36954 - NO LONGER AVAILABLE)
22	AP19547	1	SEAL	(A)
23	19H1726	2	Cap Screw	(A) 3/8" X 2-1/4"
23	12H304	2	Lock Washer	(A) 3/8"
24	19H3483	1	Cap Screw	(A) 3/8" X 1-1/8"
24	12H304	1	Lock Washer	(A) 3/8"
25	R49193	1	Link Chain	(A) (SUB FOR A3184R)
26	D2913R	2	Link	(A)
27	AR45536	2	PIN	(A)
27	AR36308	2	PIN	-
28	T13073	1	Clip	(A)
29	R34963	1	GUIDE	(SUB R44285, (2) R44287 AND (2) AR45536)
29	R44285	1	GUIDE	(A)
30	R26441	1	BACK-UP RING	(A)
31	A3606R	1	O-RING	(A)
32	R34965	1	GUIDE	(A)
33	R34966	1	BACK-UP RING	(A)
34	R1138R	1	O-Ring	(A)
35	R27564	1	O-Ring	-
..	AR45535	1	Kit	TO CONVERT 3" X 8" REMOTE CYLINDER, WITH HYDRAULIC STOP TO REMOTE CYLINDER WITH MECHANICAL STOP (CONSISTS OF PARTS IDENTIFIED BY (A) (SUB FOR AR34828)
