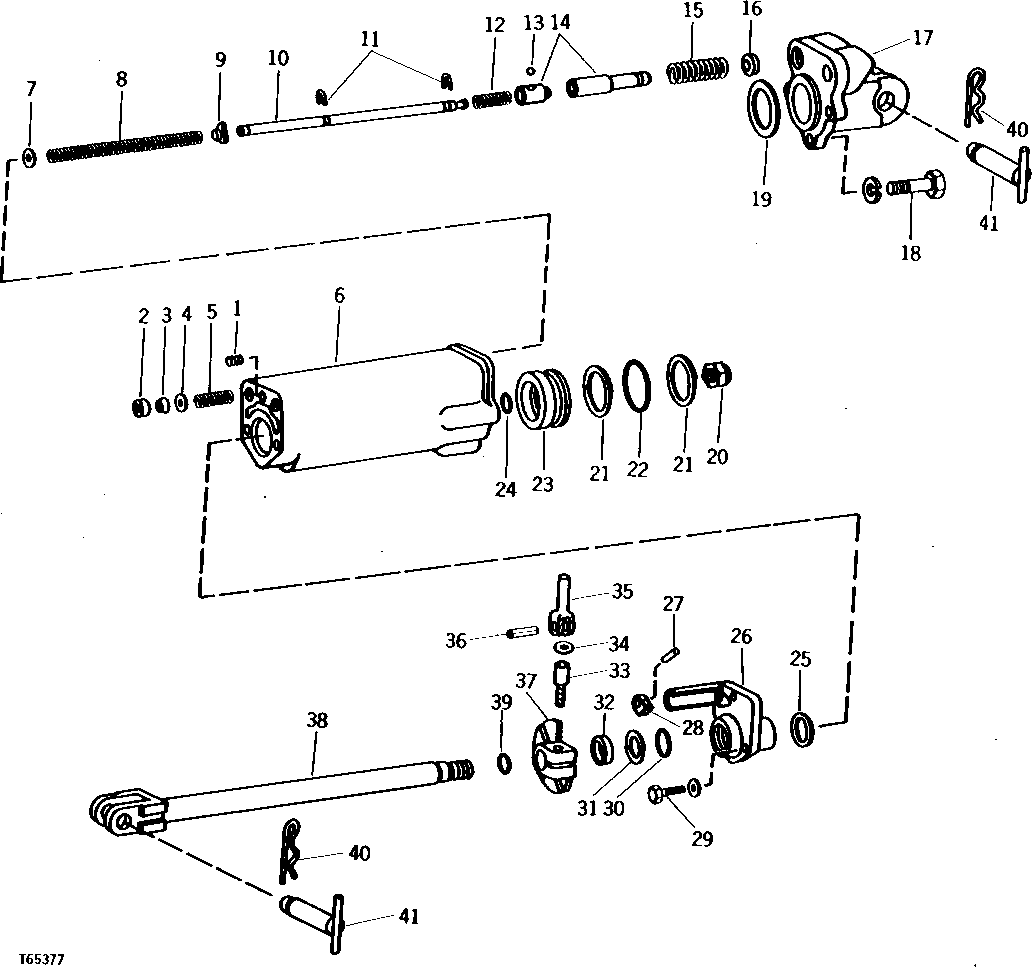

REMOTE CYLINDER (HYDRAULIC STOP TYPE) [02F09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	15H561	1	Pipe Plug	1/2"
2	A4746R	1	Adapter Fitting	FEMALE
3	A4745R	3	Packing	(A)
4	A4747R	1	Washer	-
5	A4748R	1	Spring Assembly	-
6	R27421	1	CYLINDER	-
7	24H1301	1	Washer	13/32" X 9/16" X 0.065"
8	A4737R	1	Spring	-
9	A4738R	1	WASHER	-
10	A4736R	1	Rod	-
11	A4739R	2	Ring	-
12	A4741R	1	Spring	-
13	A4742R	1	Ball	-
14	AA5731R	1	VALVE	-
15	A4744R	1	SPRING	-
16	A4723R	2	Washer	(A)
17	R27427	1	HYDRAULIC CYLINDER CAP	-
18	19H2473	4	Cap Screw	1/2" X 1-3/4"
18	12H301	4	Lock Washer	1/2"
19	A4722R	1	Washer	(A)
20	-	1	Part 21	( R41198 - NO LONGER AVAILABLE)
21	R27649	2	BACK-UP RING	(A)
22	A4728R	1	O-Ring	(A)
23	R27422	1	PISTON	(SUB R44296)
23	R44296	1	PISTON	-
24	R27564	1	O-Ring	-
25	F1441R	1	Washer	(A)
26	R40218	1	GUIDE	(SUB FOR R27424)
27	25H760	1	Groove Pin	7/32" X 1-1/4"
28	R27426	1	Arm	-
29	19H2676	3	Cap Screw	HS, SAE 8, 3/8" X 1"
29	12H304	3	Lock Washer	3/8"
30	A3606R	1	O-RING	(A)
31	R26441	1	BACK-UP RING	(A)
32	AP19547	1	SEAL	(A)
33	A5301R	1	Stud	-
34	A147R	1	WASHER	-
35	A5302R	1	Yoke	-
36	34H264	1	Spring Pin	5/32" X 7/8"
37	R27423	1	STOP	-
38	AF2331R	1	STEM	(SUB AR45543)
38	AR45545	1	ROD	(ALSO ORDER AR47825 AND A3581R) (SUB FOR AR45543)
39	R27564	1	O-Ring	-
40	A3581R	2	Spring Locking Pin	-
41	AR47825	2	Pin Fastener	-
..	AR30686	1	KIT	(A) REMOTE CYLINDER OVERHAUL (CONSISTS OF PARTS IDENTIFIED BY (A)
