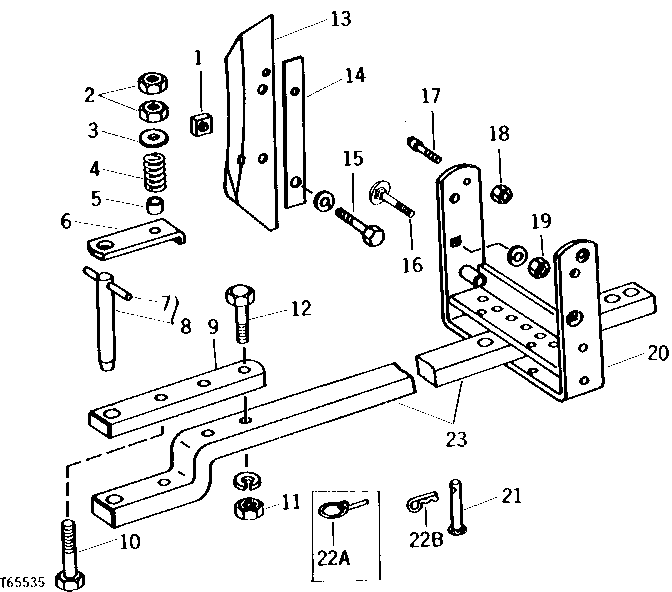

REGULAR DRAWBAR (SERIAL NO. 201000- ) [02F25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H893	2	Nut	5/8"
2	14H760	2	Nut	(A) 5/8"
3	24H1372	1	Washer	(A) 21/32" X 1-1/2" X 0.060"
4	F3541R	1	Spring	(A)
5	F3542R	1	Bushing	(A)
6	F3539R	1	Retainer	(A)
7	34H363	1	Spring Pin	3/8" X 4"
8	AR26462	1	PIN FASTENER	(A)
9	R26584	1	STRAP	(A)
10	19H3169	1	Cap Screw	(A) 5/8" X 4-1/4"
11	14H794	2	Nut	(A) 3/4"
11	12H236	2	Lock Washer	(A) 3/4"
12	19H1735	2	Cap Screw	(A) 3/4" X 3-1/2"
13	R39512	1	SWAY BLOCK	R.H.
13	R39513	1	SWAY BLOCK	L.H.
14	R34505	2	SHIM	-
15	19H2969	2	Cap Screw	5/8" X 3-1/2"
15	12H294	2	Lock Washer	5/8"
16	09H1601	2	BOLT	5/8" X 3"
17	R42440	2	SCREW	-
18	14H1040	2	Nut	1/2", (SUB FOR 14H809)
19	14H760	2	Nut	5/8"
19	12H294	2	Lock Washer	5/8"
20	AR33911	1	SUPPORT	REAR
21	R61967	2	PIN FASTENER	(SUB FOR R33831) (ALSO ORDER (2) A3581R)
23	R34448	1	DRAWBAR	-
..	AR27033	1	CLEVIS	(A) (CONSISTS OF PARTS IDENTIFIED BY (A)
..	-	1	Part 30	DRAWBAR FOR CONVERTING REGULAR TO WIDE SWING ( AR46810 USE IF AVAILABLE)
22A	AR62151	2	Quick Lock Pin	(SUB FOR B11182) (USE WITH R33831)
22B	A3581R	2	Spring Locking Pin	(USE WITH R61967)
