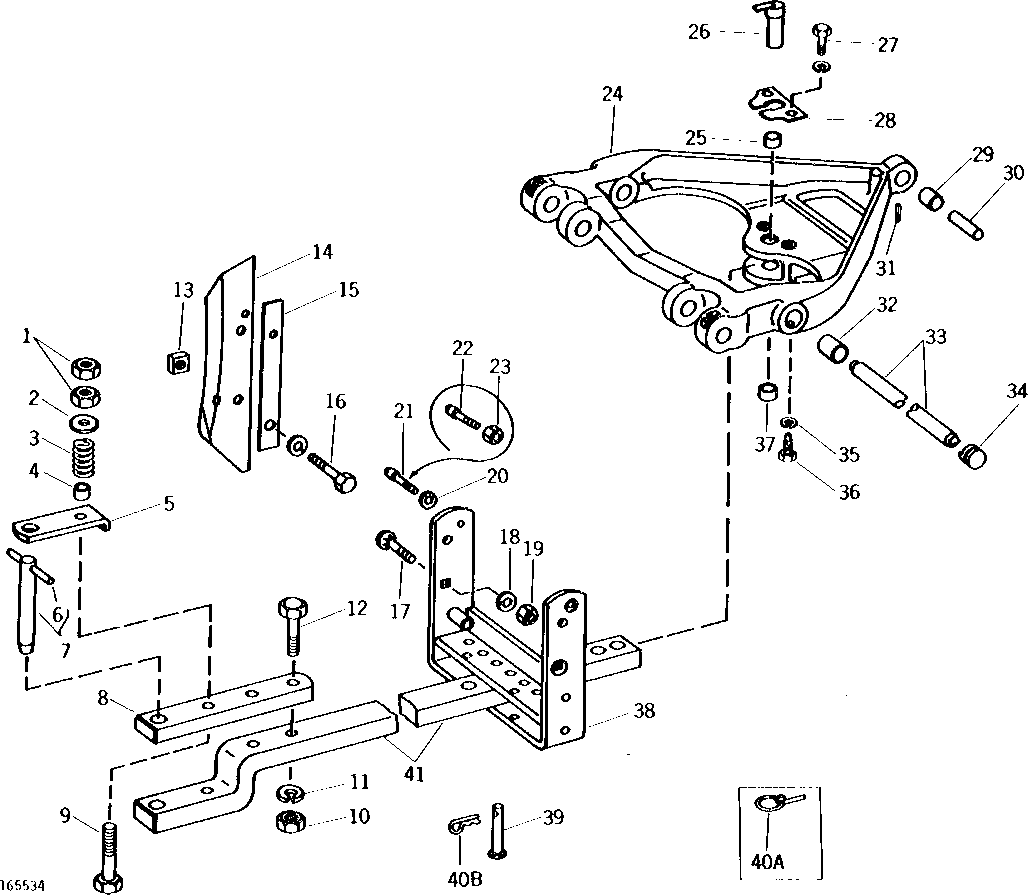

REGULAR DRAWBAR (SERIAL NO. -200999) [02F20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H760	2	Nut	(A) 5/8"
2	24H1372	1	Washer	(A) 21/32" X 1-1/2" X 0.060", ( 24H1372 NO LONGER AVAILABLE)
3	F3541R	1	Spring	(A)
4	F3542R	1	Bushing	(A)
5	F3539R	1	Retainer	(A)
6	34H363	1	Spring Pin	(A) 3/8" X 4"
7	AR26462	1	PIN FASTENER	(A)
8	R26584	1	STRAP	(A)
9	19H3169	1	Cap Screw	(A) 5/8" X 4-1/4"
10	14H794	2	Nut	(A) 3/4"
11	12H236	2	Lock Washer	(A) 3/4"
12	19H1471	2	Cap Screw	(A) 3/4" X 3-1/2"
13	14H893	2	Nut	5/8"
14	R33862	1	SWAY BLOCK	R.H. (SUB R39512)
14	R39513	1	SWAY BLOCK	L.H.
14	R33863	1	SWAY BLOCK	L.H. (SUB R39513)
14	R39512	1	SWAY BLOCK	R.H.
15	R34505	2	SHIM	-
16	19H2969	2	Cap Screw	5/8" X 3-1/2"
16	12H294	2	Lock Washer	5/8"
17	09H1601	2	BOLT	5/8" X 3"
18	12H294	2	Lock Washer	5/8"
19	14H760	2	Nut	5/8"
20	12H292	2	Lock Washer	1/2"
21	R41015	2	SCREW	(SUB FOR R26508) (TRANSMISSION CASE WITH TAPPED HOLES)
22	R42440	2	SCREW	(TRANSMISSION CASE WITH REAMED HOLES)
23	14H1040	2	Nut	1/2", (SUB FOR 14H809) TRANSMISSION CASE WITH REAMED HOLES
24	-	1	Part 28	FRONT ( AR40402 - NO LONGER AVAILABLE) (MARKED R33824) (SUB FOR AR32494)
25	R40557	1	BUSHING	(PARTS FOR AR40402 DRAWBAR FRONT SUPPORT)
26	AR44189	1	PIN	(SUB FOR AR32826)
27	19H2284	2	Cap Screw	3/8" X 7/8"
27	12H304	2	Lock Washer	3/8"
28	R96420	1	Retainer	(SUB FOR R34253 AND R56729)
29	R31438	1	BUSHING	-
30	R26503	1	DOWEL PIN	-
31	34H309	1	Spring Pin	1/4" X 5/8"
32	R26502	2	BUSHING	-
33	R33826	1	PIN	-
34	R33827	2	RETAINER	-
35	12H303	2	Lock Washer	5/16"
36	R40928	2	BOLT	(SUB FOR R27196)
37	R40558	1	BUSHING	LOWER, (PARTS FOR AR40402 DRAWBAR FRONT SUPPORT)
38	AR33911	1	SUPPORT	-
39	R61967	2	PIN FASTENER	(SUB FOR R33831) (ALSO ORDER (2) A3581R)
41	R34448	1	DRAWBAR	-
..	AR27033	1	CLEVIS	(CONSISTS OF PARTS IDENTIFIED BY (A)
40A	AR62151	2	Quick Lock Pin	(SUB FOR B11182) (USE WITH R33831)
40B	A3581R	2	Spring Locking Pin	(USE WITH R61967)
