PISTONS, RINGS, LINERS AND CONNECTING RODS (GASOLINE) [01C01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

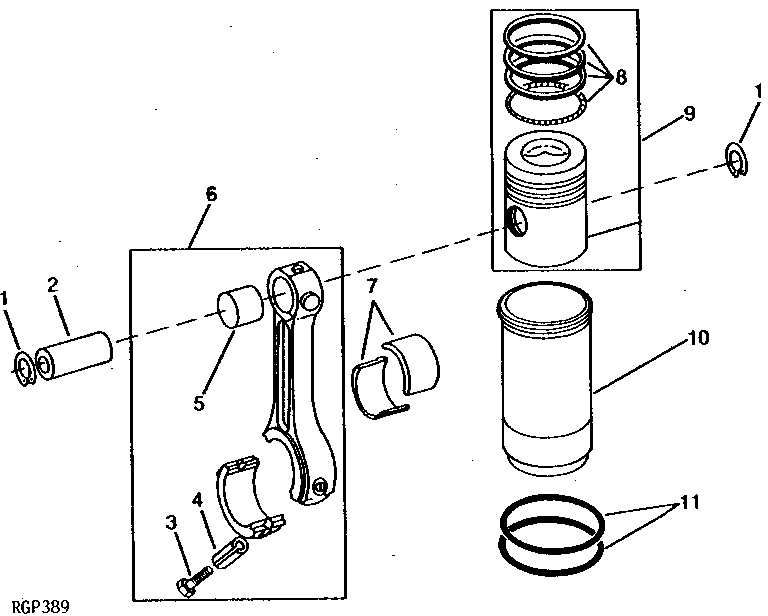

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41707	12	SNAP RING	-
2	R26088	6	PISTON PIN	-
2	R28970	6	PISTON PIN	0.08 MM (.003") OVERSIZE, (MARKED YELLOW)
2	R28971	6	PISTON PIN	0.13 MM (.005") OVERSIZE, (MARKED RED)
3	R66454	12	CAP SCREW	(SUB FOR R26323 OR R53289)
4	R53291	6	SLEEVE	(USE WITH RODS MARKED R53284 OR R58879)
5	R30929	6	BUSHING	-
6	AR70909	6	CONNECTING ROD	(MARKED R26046, R42257, R53284 OR R58879) (SUB FOR AR26327 OR AR45498) (SUB AR86982)
6	AR86982	6	CONNECTING ROD	(MARKED R66924)
6	SE500082	6	CONNECTING ROD REMAN	(REMANUFACTURED FOR AR86982)
7	AR46396	1	BEARING	0.25 MM (.010") UNDERSIZE, (PKG. OF (2) R44926)
7	AR46398	1	BEARING	0.76 MM (.030") UNDERSIZE (PKG. OF (2) R44928) (SUB FOR AR27642)
7	AR46397	1	BEARING	0.51 MM (.020") UNDERSIZE (PKG. OF (2) R44927) (SUB FOR AR27640)
7	AR46395	1	BEARING	0.05 MM (.002") UNDERSIZE (PKG. OF (2) R44925) (SUB FOR AR27629)
7	AR45723	1	BEARING	STANDARD (PKG. OF (2) R57583 OR R44378) (SUB FOR AR27628)
8	AR34394	6	PISTON RING	(SUB FOR AR33994)
8	AR45966	6	PISTON RING	(HEAVY DUTY)
8	AR54879	6	PISTON RING	(SUB FOR AR42612)
9	AR45964	6	PISTON	(MARKED R33372 OR R34617) (SUB FOR AR39769 OR AR39771)
9	AR54878	6	PISTON	(MARKED R40795 OR R47863) (SUB FOR AR42608)
10	R33197	6	CYLINDER LINER	-
10	R40614	6	CYLINDER LINER	-
11	AR70645	6	O-RING KIT	(SUB FOR AR48687, R26121 OR R41611)
..	AR52547	6	PISTON-LINER KIT	(MARKED R33372) (SUB (6) AR40155, (6) AR52549 AND AR53624)

PISTONS, RINGS, LINERS AND CONNECTING RODS (GASOLINE) [01C01]
