Открытый узел

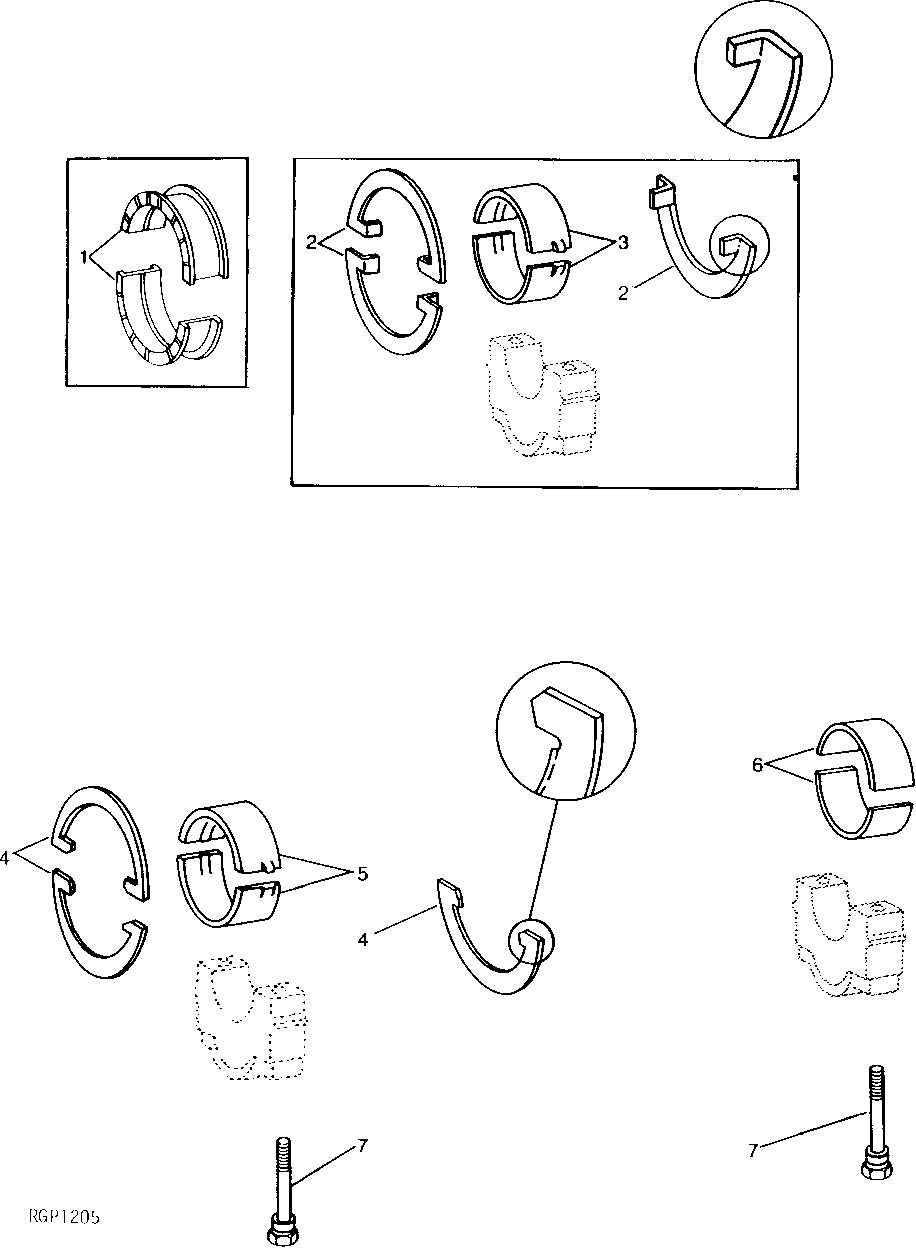

MAIN AND MAIN THRUST BEARINGS [01B20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR65236	1	THRUST BEARING	0.05 MM (.002") UNDERSIZE (PKG. OF R55737 AND R55738) (SUB AR77749 AND AR77747 OR AR77753) (SUB FOR AR46403 OR AR49232)
1	AR65237	1	THRUST BEARING	0.25 MM (.010") UNDERSIZE (PKG. OF R55739 AND R55740) (SUB AR77750 AND AR77747 OR AR77753) (SUB FOR AR46404 OR AR49233)
1	AR65238	1	THRUST BEARING	0.51 MM (.020") UNDERSIZE (PKG. OF R55741 AND R55742) (SUB AR77751 AND AR77747 OR AR77753) (SUB FOR AR46405 OR AR49234)
1	AR65239	1	THRUST BEARING	0.76 MM (.030") UNDERSIZE (PKG. OF R55743 AND R55744) (SUB AR77752 AND AR77747 OR AR77753) (SUB FOR AR46406 OR AR49235)
1	AR65240	1	THRUST BEARING	0.25 MM (.010") UNDERSIZE WITH 0.18 MM (.007") OVERSIZE FLANGE (PKG. OF R55745 AND R55746) (SUB AR77750 AND AR77753) (SUB FOR AR46407 OR AR49236)
1	AR65235	1	THRUST BEARING	STANDARD (PKG. OF R55596 AND R55597) (SUB AR77748 AND AR77747 OR AR77753) (SUB FOR AR44624 OR AR48940)
2	AR73275	1	THRUST WASHER	STANDARD (PKG. OF (3) R57778) (SUB AR77747)
2	AR73276	1	THRUST WASHER	0.18 MM (.007") OVERSIZE FLANGE (PKG. OF (3) R60484) (SUB AR77753)
3	AR72998	1	THRUST BEARING	STANDARD (PKG. OF R57779 AND R57780) (SUB AR77748 AND AR77747 OR AR77753)
3	AR73271	1	THRUST BEARING	0.05 MM (.002") UNDERSIZE (PKG. OF R60476 AND R60477) (SUB AR77749 AND AR77747 OR AR77753)
3	AR73272	1	THRUST BEARING	0.25 MM (.010") UNDERSIZE (PKG. OF R60478 AND R60479) (SUB AR77750 AND AR77747 OR AR77753)
3	AR73273	1	THRUST BEARING	0.51 MM (.020") UNDERSIZE (PKG. OF R60480 AND R60481) (SUB AR77751 AND AR77747 OR AR77753)
3	AR73274	1	THRUST BEARING	0.76 MM (.030") UNDERSIZE (PKG. OF R60482 AND R60483) (SUB AR77752 AND AR77747 OR AR77753)
4	AR77747	1	THRUST WASHER	STANDARD (PKG. OF (3) R62986)
4	AR77753	1	THRUST WASHER	0.18 MM (.007") OVERSIZE FLANGE (PKG. OF (2) R63010 AND R62986)
5	AR77748	1	THRUST BEARING	STANDARD (PKG. 0F R62987 AND R62988)
5	AR77749	1	Thrust Bearing	0.05 MM (.002") UNDERSIZE (PKG. OF R63002 AND R63006)
5	AR77750	1	THRUST BEARING	0.25 MM (.010") UNDERSIZE (PKG. OF R63003 AND R63007)
5	AR77751	1	Thrust Bearing	0.51 MM (.020") UNDERSIZE (PKG. OF R63004 AND R63008)
5	AR77752	1	Thrust Bearing	0.76 MM (.030") UNDERSIZE (PKG. OF R63005 AND R63009)
6	AR74814	1	BEARING	STANDARD (PKG. OF R61289 AND R57584) (SUB FOR AR44625)
6	AR74815	1	Bearing	0.05 MM (.002") UNDERSIZE (PKG. OF R61608 AND R60472) (SUB FOR AR46399)
6	AR74816	1	BEARING	0.25 MM (.010") UNDERSIZE (PKG. OF R61609 AND R60473) (SUB FOR AR46400)
6	AR74817	1	Bearing	0.51 MM (.020") UNDERSIZE (PKG. OF R61610 AND R60474) (SUB FOR AR46401)
6	AR74818	1	Bearing	0.76 MM (.030") UNDERSIZE (PKG. OF R61611 AND R60475) (SUB FOR AR46402)
7	T15539	8	BOLT	(GASOLINE)
7	T15539	14	BOLT	(DIESEL)

MAIN AND MAIN THRUST BEARINGS [01B20]

Нет текстового описания
