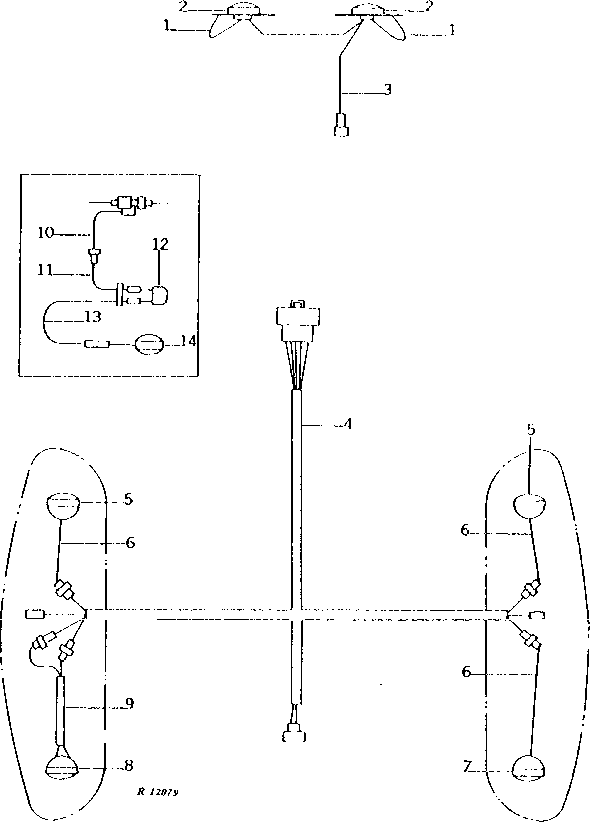

LAMP WIRING (SERIAL NO. 91000- ) [02I04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	FRONT LAMP GROUND, 140 MM (5-1/2") (MAKE FROM R32007, R32016, AND R32018 FROM AR84006 WIRE REPAIR KIT) (SUB FOR AR29148)
2	-	1	Part 2	FRONT, R.H. AND L.H. (12-VOLT) ( AR27923 - NO LONGER AVAILABLE)
3	AR47685	1	WIRING HARNESS	FRONT LAMPS, (SUB FOR R39655 AND AR44952)
3	F2084R	1	CLIP	FRONT LAMP HARNESS TO GRILLE HOUSING
4	AR41284	1	WIRING HARNESS	LAMP, (SUB FOR R39617)
4	AR41684	1	WIRING HARNESS	LAMP
4	R21551	1	CLIP	WIRING HARNESS TO FENDER
4	-	1	Part 8	LAMP, HARNESS, (SUB FOR R34046) ( AR42334 - NO LONGER AVAILABLE)
5	R27180	1	Grommet	LAMP, R.H. AND L.H.
5	14H1040	1	Nut	1/2", (SUB FOR 14H809) R.H. AND L.H.
5	12H301	1	Lock Washer	1/2" FENDER, R.H. AND L.H. (SUB FOR R30403)
5	R31892	1	WASHER	FENDER, R.H. AND L.H.
5	A2743R	1	WASHER	LAMP, R.H. AND L.H.
5	AR28166	1	LAMP	FENDER, R.H. AND L.H. (12-VOLT)
6	-	1	Part 15	FRONT LAMPS AND R.H. REAR LAMP TO LAMP HARNESS, 914 MM (36") (MAKE FROM R32007, R32016, R32025, AND R32027 FROM AR84006 WIRE REPAIR KIT)
7	12H301	1	Lock Washer	1/2" FENDER, R.H. REAR, (SUB FOR R30403)
7	14H1040	1	Nut	1/2", (SUB FOR 14H809) R.H. REAR
7	R31892	1	WASHER	FENDER, R.H. REAR
7	R27180	1	Grommet	LAMP, R.H. REAR
7	-	1	Part 16	REAR FENDER R.H. ( AR28167 NO LONGER AVAILABLE) (SUB RE27099, E41563, E41564 AND 14H865)
7	A2743R	1	WASHER	LAMP, R.H. REAR
8	AR34990	1	LAMP	FENDER (COMBINATION REAR AND WARNING, L.H.)
8	R27180	1	Grommet	LAMP, L.H. REAR
8	A2743R	1	WASHER	LAMP, L.H. REAR
8	R31892	1	WASHER	FENDER, L.H. REAR
8	12H301	1	Lock Washer	1/2" L.H. REAR, (SUB FOR R30403)
8	14H1040	1	Nut	1/2", (SUB FOR 14H809) L.H. REAR
9	AR41699	1	WIRING HARNESS	REAR LAMP, L.H. TO LAMP HARNESS
9	-	1	Part 28	REAR LAMP, L.H. TO LAMP HARNESS ( R39657 - NO LONGER AVAILABLE)
10	AR38455	1	WIRING LEAD	HARNESS END
11	-	1	Part 31	WIRING, FLASHER END, 76 MM (3") (MAKE FROM R32024 AND R32027 FROM AR84006 WIRE REPAIR KIT) (SUB FOR AR38454)
12	AR48594	1	Flasher	WARNING LAMP, (SUB FOR AR38453)
13	-	1	Part 33	WIRING, LAMP TO FLASHER ( AR38452 USE IF AVAILABLE)
13	AR41695	1	WIRING LEAD	WIRING, LAMP TO FLASHER
14	AH164498	1	LAMP	(SUB FOR AR38456 AND AT23467) WARNING
14	AD2062R	1	Bulb	LAMP, 12-16 VOLT
14	R38371	1	Washer	RUBBER
14	24H1227	1	Washer	17/32" X 13/16" X 0.060"
14	14H786	1	Nut	1/4", JAM
