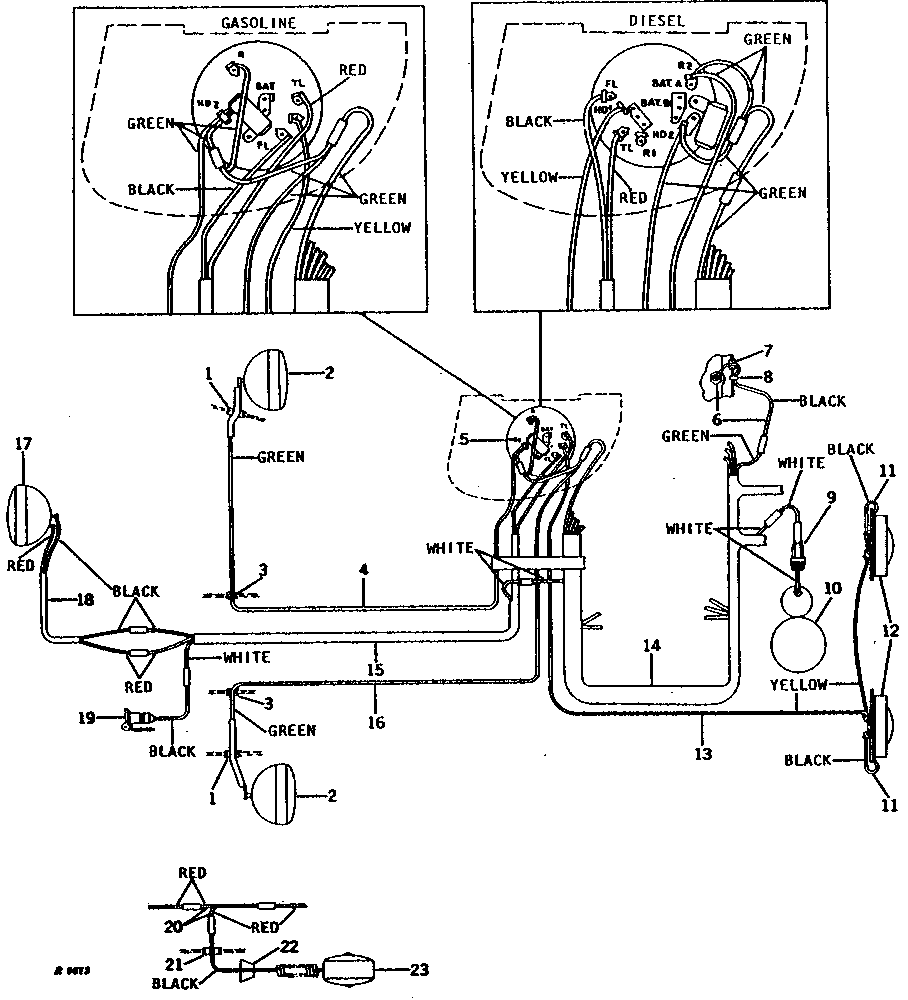

LAMP WIRING (SERIAL NO. 65000-90999) [02I02]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R2579R	2	GROMMET	FENDER LAMP HARNESS TO FENDER, TOP
2	AR28166	1	LAMP	FENDER, R.H. AND L.H. (12-VOLT)
2	A2743R	2	WASHER	-
2	R31892	2	WASHER	-
2	12H301	2	Lock Washer	1/2"
2	14H1040	2	Nut	1/2", (SUB FOR 14H809)
3	A3411R	2	Grommet	FENDER LAMP HARNESS TO FENDER, BOTTOM
4	AR27616	1	WIRING HARNESS	FENDER LAMP, L.H.
4	B1986R	1	CLIP	FENDER LAMP HARNESS TO TRANSMISSION CASE COVER SCREW
5	AR28401	1	SWITCH	LIGHT (GASOLINE)
5	AR28402	1	SWITCH	LIGHT (DIESEL)
6	AR33479	1	LAMP	(SUB FOR AR35993) DASH
7	A3411R	1	Grommet	DASH LAMP LEAD TO DASH
8	F2084R	1	CLIP	DASH LAMP LEAD TO DASH
9	R34573	1	WIRING LEAD	WITH FUSE
10	AR11300	1	STARTER MOTOR	(12-VOLT) (DELCO-REMY NO. 1107785) (GASOLINE)
10	AR11138	1	STARTER MOTOR	(SUB AR40134) (24-VOLT) (DELCO-REMY NO. 1113148) (DIESEL)
11	-	2	Part 18	FRONT LAMP GROUND, (MAKE FROM R32007, R32016 AND R32018) 14O MM (5-1/2") (MAKE FROM R32007, R32016, AND R32018 FROM AR84006 WIRE REPAIR KIT) (SUB FOR AR29148)
12	-	1	Part 19	FRONT, R.H. AND L.H. (12-VOLT) ( AR27923 - NO LONGER AVAILABLE)
12	37H84	6	Screw	(SUB FOR R28291) FRONT LAMP TO GRILLE HOUSING
13	-	1	Part 21	FRONT LAMPS ( AR27942 - NO LONGER AVAILABLE)
13	R44302	1	Tie Band	(SUB FOR R27457) FRONT LAMP HARNESS TO MAIN HARNESS
13	F2084R	1	CLIP	FRONT LAMP HARNESS TO GRILLE HOUSING
14	24H1302	1	Washer	13/32" X 11/16" X 0.035", MAIN HARNESS TO L.H. DASH TO CONTROL SUPPORT SCREW
14	B1828R	1	Bushing	MAIN HARNESS TO L.H. DASH TO CONTROL SUPPORT SCREW
14	T13814	1	Clamp	MAIN HARNESS TO L.H. DASH TO CONTROL SUPPORT SCREW
14	21H1304	1	Screw	5/16" X 3/4", MAIN HARNESS CLAMP TO CONTROL SUPPORT
14	R44302	5	Tie Band	(SUB FOR R27457) MAIN HARNESS TO STEERING OIL PIPES
14	R20847	2	Clip	MAIN HARNESS TO HOOD BAFFLE
14	12H291	1	Lock Washer	5/16", MAIN HARNESS CLAMP TO CONTROL SUPPORT SCREW
14	R27539	1	CLAMP	MAIN HARNESS TO CONTROL SUPPORT
14	AR47660	1	KIT	(SUB FOR R34278) (DIESEL)
14	-	1	Part 24	(SUB FOR R34277) (GASOLINE) ( AR47661 NO LONGER AVAILABLE)
14	14H785	1	Nut	5/16", MAIN HARNESS CLAMP TO CONTROL SUPPORT SCREW
15	AR28929	1	WIRING HARNESS	LIGHT SWITCH TO REAR LAMP, SWITCH END
16	-	1	Part 36	FENDER LAMP, R.H. ( AR27941 - NO LONGER AVAILABLE)
16	B1986R	1	CLIP	FENDER LAMP HARNESS TO TRANSMISSION CASE COVER SCREW
17	AR77326	1	FLOODLAMP	(SUB FOR AT16288) (12-VOLT)
17	12H301	1	Lock Washer	1/2"
17	14H1040	1	Nut	1/2", (SUB FOR 14H809)
18	AR26575	1	WIRING HARNESS	LIGHT SWITCH TO REAR LAMP, LAMP END
18	R21551	1	CLIP	REAR LAMP HARNESS TO SEAT SUPPORT
19	AR26571	1	SOCKET	ELECTRICAL OUTLET
19	21H1301	2	SCREW	0.190" X 1/2", SOCKET TO REAR LAMP SUPPORT
19	12H295	2	Lock Washer	0.190", SOCKET TO REAR LAMP SUPPORT SCREW
19	14H778	2	Nut	0.190", SOCKET TO REAR LAMP SUPPORT SCREW
19	AR40710	1	PLUG	WITH CABLE, (SUB FOR AA5691R)
19	AA5692R	1	ELEC. CONNECTOR TERMINAL	LESS CABLE (PART OF ELECTRICAL OUTLET)
20	-	1	Part 49	WARNING LAMP, LAMP END ( AR26585 - NO LONGER AVAILABLE)
21	R27583	1	Grommet	WARNING LAMP LEAD TO LAMP SUPPORT
22	-	1	Part 51	INSULATOR, WARNING LAMP MAST END ( R27582 NO LONGER AVAILABLE)
23	AR26584	1	LAMP	LAMP, WARNING
