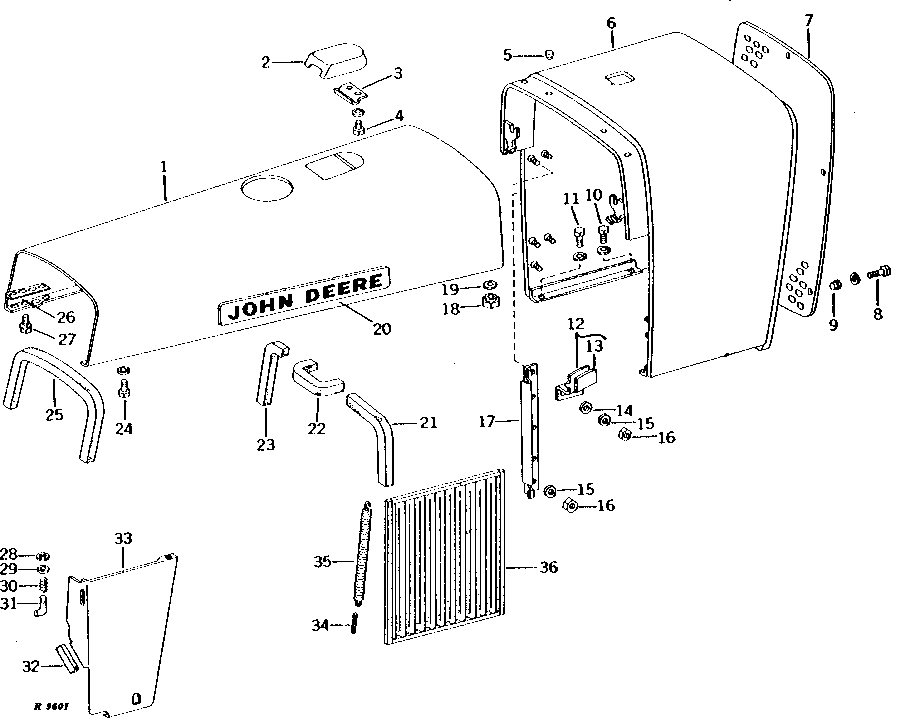

HOOD, GRILLE, AND SIDE SHIELDS [02G12]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR39537	1	HOOD	WITH BAFFLES, BUT LESS NAME PLATES
1	AR32523	1	HOOD	WITH BAFFLES, BUT LESS NAME PLATES, (SUB AR39537)
1	-	1	Part 3	WITH BAFFLES, BUT LESS NAME PLATES ( AR41610 - NO LONGER AVAILABLE)
2	AR27869	1	COVER	-
3	R28644	1	CLIP	-
4	19H1227	2	Cap Screw	1/4" X 1/2"
4	12H302	2	Lock Washer	1/4"
5	R28524	5	BUMPER	-
6	-	1	Part 9	( AR32669 - NO LONGER AVAILABLE)
7	-	1	Part 10	( R28607 NO LONGER AVAILABLE)
8	19H3239	5	Cap Screw	3/8" X 1-1/4"
8	12H304	5	Lock Washer	3/8"
9	R28608	5	BUSHING	-
10	19H2898	2	Cap Screw	1/2" X 1-1/4"
10	12H301	2	Lock Washer	1/2"
11	19H3579	2	Cap Screw	1/2" X 1-3/8"
11	12H301	2	Lock Washer	1/2"
12	-	2	Part 18	L.H. WITH CUSHION ( AR32468 - NO LONGER AVAILABLE)
12	-	2	Part 19	R.H. WITH CUSHION ( AR27827 - NO LONGER AVAILABLE)
13	-	4	Part 20	1/8" X 2" X 3-3/16" (MAKE FROM R21737, 1/8" X 2" X 60")
14	24H1136	4	Washer	11/32" X 11/16" X 0.065"
15	12H303	10	Lock Washer	5/16"
16	14H785	10	Nut	5/16"
17	-	2	Part 24	( R33790 - NO LONGER AVAILABLE)
18	M376T	2	NUT	-
19	24H1305	2	Washer	13/32" X 13/16" X 0.065"
20	AR30424	2	PLATE	-
20	T10671	6	CAP SCREW	-
21	-	1	Part 29	R.H., 1" X 1" X 27-7/16" (MAKE FROM R30937, 1" X X 60")
22	-	1	Part 30	( R28705 - NO LONGER AVAILABLE)
23	-	1	Part 31	L.H., 1" X 1" X 10-3/4", (MAKE FROM R30937 1" X 1" X 60")
24	19H1648	2	Cap Screw	3/8" X 3/4"
24	12H304	2	Lock Washer	3/8"
25	-	1	Part 34	REAR, 1" X 1" X 29", (MAKE FROM R30937 1" X 1" X 60")
26	R26894	2	PLATE	-
27	AR26566	4	SCREW	-
28	R27507	4	Snap Ring	-
29	24H1286	4	Washer	9/32" X 1/2" X 1/16"
30	R28783	4	Compression Spring	-
31	R27506	4	PIN	-
32	-	2	Part 41	(MAKE FROM R91558 BULK MATERIAL, CUT TO LENGTH) (SUB FOR R30877)
33	AR26769	1	SHIELD	R.H.
33	AR40773	1	SHIELD	R.H.
33	AR26770	1	SHIELD	L.H.
33	AR40774	1	SHIELD	L.H.
34	19M7084	2	CAP SCREW	M8 X 15
35	R26858	2	SPRING	-
36	AR32670	2	GRILLE	(SUB AR29864-NO LONGER AVAILABLE)
36	-	2	Part 49	( AR29864 - NO LONGER AVAILABLE)
