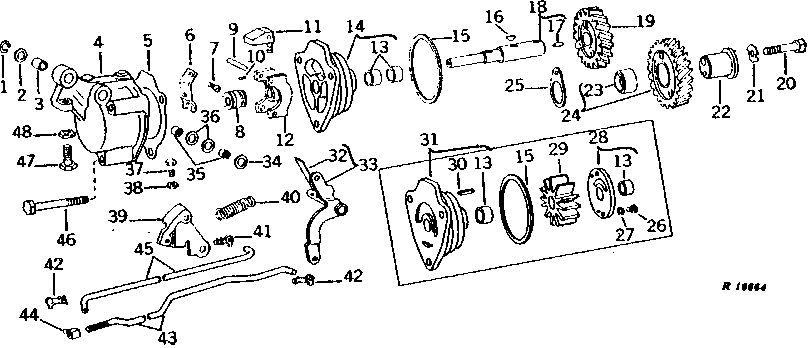

GOVERNOR AND VENTILATOR PUMP (GASOLINE) [01C07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26517	1	SNAP RING	-
2	24H1325	1	Washer	15/32" X 59/64" X 0.065"
3	R27922	1	BUSHING	-
4	-	1	Part 4	(MARKED R31338) ( AR30445 NO LONGER AVAILABLE)
4	AR45297	1	HOUSING	(MARKED R44078 AND R44079) (SUB AR45299, R20423 AND R26127)
5	R31340	1	GASKET	-
6	R26129	1	LEVER	-
7	AR28756	2	SCREW	-
8	AL2691T	1	THRUST BEARING	(SUB AL2769T AND L4299T)
9	R27205	2	PIN FASTENER	-
10	11M7086	2	Cotter Pin	2.500 X 50 MM
11	AR26421	2	WEIGHT	-
12	R26131	1	CRADLE	-
13	R30713	2	BUSHING	-
14	AR45306	1	HOUSING	(MARKED R44083)
15	R40776	1	WASHER	-
16	26H70	2	Shaft Key	1/8" X 1/2"
17	B2641R	1	DOWEL PIN	-
18	AR26420	1	SHAFT	-
19	R26138	1	GEAR	-
20	19H1819	1	Cap Screw	3/8" X 2-1/8"
21	R26403	1	LOCK PLATE	-
22	R26401	1	SHAFT	-
23	R30712	1	BUSHING	-
24	AR26389	1	GEAR	(MARKED R26399)
25	R26402	1	WASHER	-
26	19H2925	2	Screw	0.190" X 1/2", (SUB FOR R27206)
27	12H246	2	LOCK WASHER	0.190"
28	AR26341	1	COVER	(MARKED R26136)
29	R26135	1	IMPELLER	-
30	34H245	2	Spring Pin	1/8" X 5/8"
31	AR30444	1	HOUSING	(MARKED R31337)
32	R42624	1	STRAP	(SUB FOR R27923)
33	AR44848	1	ARM	(SUB FOR AR30829)
34	AR26338	1	SEAL	-
35	JD8862	2	NEEDLE BEARING	-
36	24H1227	2	Washer	17/32" X 13/16" X 0.060"
37	19H1914	1	Cap Screw	1/4" X 1"
38	14H850	1	NUT	1/4"
39	AR26342	1	ARM	(SUB AR59651)
40	R26518	1	SPRING	-
41	R26524	1	Clip	-
42	R26501	1	Clip	-
43	R26498	1	HOOK BOLT	-
43	R44900	1	ROD	-
44	R26500	1	SWIVEL	-
45	-	1	Part 47	( R33993 - NO LONGER AVAILABLE)
45	-	1	Part 48	( R41572 - NO LONGER AVAILABLE)
46	R31542	3	BOLT	-
47	19H2831	1	Cap Screw	5/16" X 1-1/2"
48	14H611	1	Nut	5/16"
