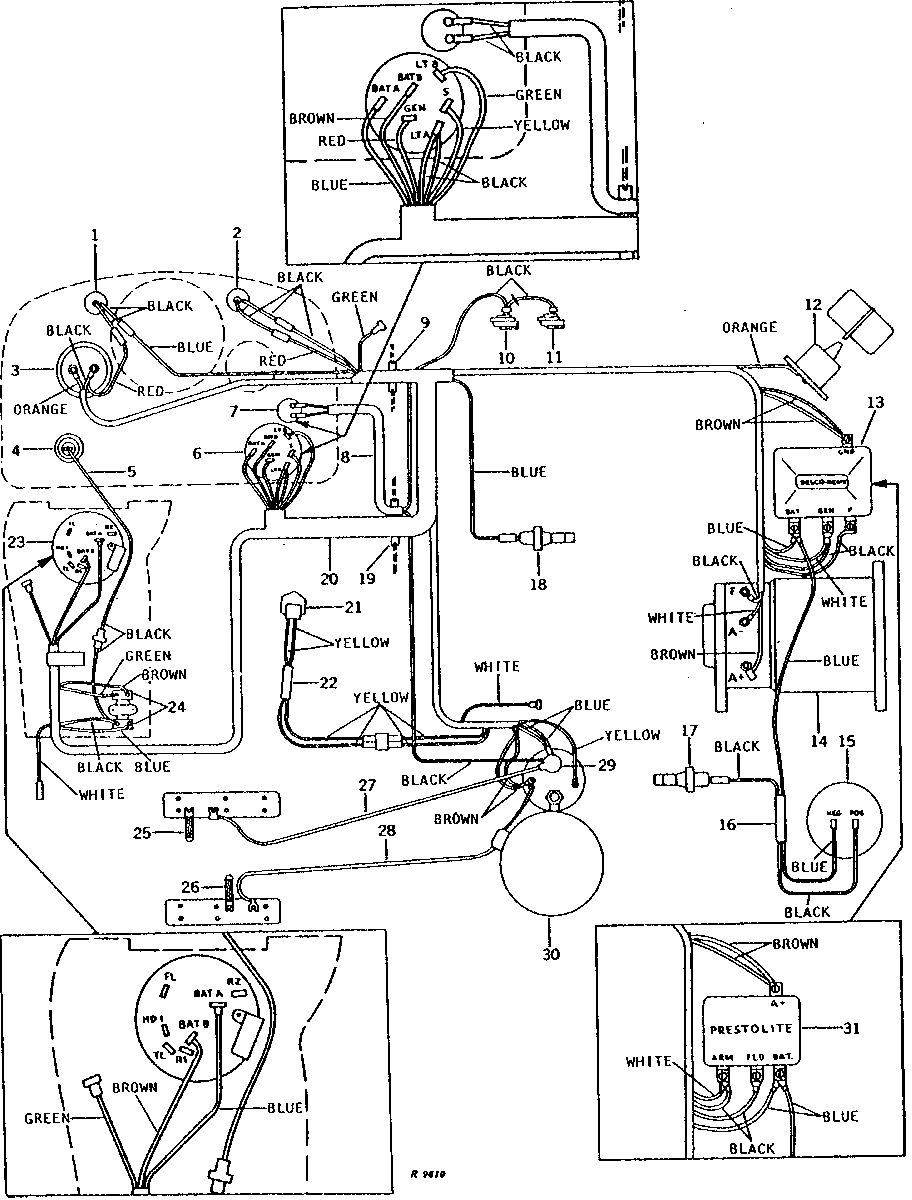

GENERATOR, IGNITION AND STARTER WIRING (DIESEL) (SERIAL NO. 65000-90999) [02H09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR27944	1	LAMP	ENGINE OIL PRESSURE
2	AT14699	1	INDICATOR LAMP	GENERATOR
3	R34262	1	GAUGE	-
4	AR48643	1	ELECTRICAL LIGHTER	(SUB FOR AR34556)
5	-	1	Part 5	305 MM (12") (MAKE FROM R32007, R32018, R32025, R32027) FROM AR84006 WIRE REPAIR KIT) (SUB FOR R34585)
6	AR26557	1	SWITCH	STARTER
7	AR21823	1	SWITCH	HORN
8	-	1	Part 8	HORN ( R34702 NO LONGER AVAILABLE)
9	R26936	1	Grommet	MAIN HARNESS TO HOOD BAFFLE
10	R11276	1	HORN	(LOW NOTE, 12-VOLT)
11	R64700	1	High Note Horn	(SUB FOR R11277) (HIGH NOTE, 12-VOLT)
12	AR26434	1	SENDER	FUEL GAUGE
13	AR30155	1	VOLTAGE REGULATOR	(24-VOLT) (DELCO-REMY NO. 1119282)
14	-	1	Part 14	(24-VOLT) (DELCO-REMY NO. 1103026) ( AR34567 NO LONGER AVAILABLE)
15	AT160120	1	HOUR METER	(SUB FOR AR27898, AR39848 AND AT30152 OR AT61458)
16	-	1	Part 16	HOUR METER TO PRESSURE SWITCH AND REGULATOR ( R32379 NO LONGER AVAILABLE)
17	AR29339	1	SWITCH	HOUR METER
18	AT85174	1	Switch	(SUB FOR AR27977) ENGINE OIL INDICATOR
19	R32555	1	Grommet	MAIN HARNESS TO HOOD BAFFLE LOWER
20	24H1302	1	Washer	13/32" X 11/16" X 0.035", MAIN HARNESS CLAMP TO L.H. DASH SUPPORT SCREW
20	B1828R	1	Bushing	MAIN HARNESS CLAMP TO L.H. DASH TO CONTROL SUPPORT SCREW
20	T13814	1	Clamp	MAIN HARNESS TO L.H. DASH TO CONTROL SUPPORT SCREW
20	R44302	5	Tie Band	(SUB FOR R27457) MAIN HARNESS TO STEERING OIL PIPES
20	14H785	1	Nut	5/16", MAIN HARNESS CLAMP TO CONTROL SUPPORT SCREW
20	12H291	1	Lock Washer	5/16", MAIN HARNESS CLAMP TO CONTROL SUPPORT SCREW
20	21H1304	1	Screw	5/16" X 3/4", MAIN HARNESS CLAMP TO CONTROL SUPPORT
20	R27539	1	CLAMP	MAIN HARNESS TO CONTROL SUPPORT
20	AR47660	1	KIT	(SUB FOR R34278)
20	R20847	2	Clip	MAIN HARNESS TO HOOD BAFFLE
21	R36265	1	SWITCH	START SAFETY (COLLAR SHIFT AND POWER SHIFT)
21	R36265	1	SWITCH	START SAFETY (POWER SHIFT)
22	R44302	2	Tie Band	(SUB FOR R27457) START SAFETY SWITCH HARNESS TO BATTTERY CABLE
22	R1646R	1	CLAMP	START SAFETY HARNESS TO BATTERY CABLE
22	R33823	1	WIRING HARNESS	START SAFETY SWITCH TO MAIN HARNESS (COLLAR SHIFT)
22	R34869	1	WIRING HARNESS	START SAFETY SWITCH TO MAIN HARNESS (POWER SHIFT)
22	R33770	1	WIRING HARNESS	START SAFETY SWITCH TO MAIN HARNESS (POWER SHIFT)
23	AR28402	1	SWITCH	LIGHT
24	AR28403	2	CIRCUIT BREAKER	-
25	AM348T	1	GROUND CABLE	POSITIVE, L.H.
25	19H1648	1	Cap Screw	3/8" X 3/4", GROUND STRAP TO BATTERY BOX
25	12H304	1	Lock Washer	3/8", GROUND STRAP TO BATTERY BOX SCREW
25	14H812	1	NUT	3/8", GROUND STRAP TO BATTERY BOX SCREW
26	AT18702	1	GROUND CABLE	NEGATIVE, R.H. (SUB FOR AR27367)
26	19H1936	1	Cap Screw	3/8" X 3/4", GROUND STRAP TO BATTERY BOX
26	12H304	1	Lock Washer	3/8", GROUND STRAP TO BATTERY BOX SCREW
26	14H812	1	NUT	3/8", GROUND STRAP TO BATTERY BOX SCREW
